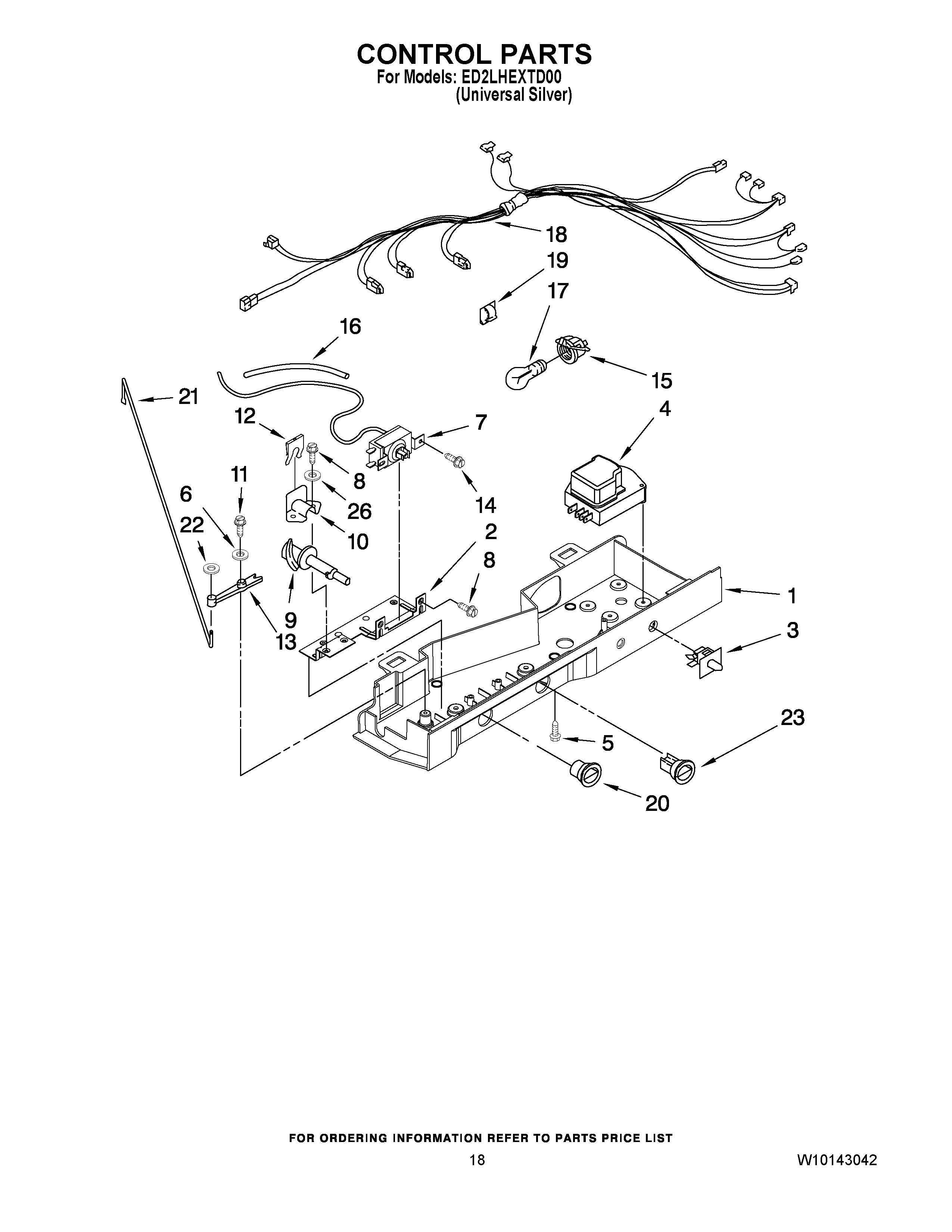

ED2LHEXTD00 11 – CONTROL PARTS

ED2LHEXTD00 11 – CONTROL PARTS

Written by

in

ED2LHEXTD00 11 – CONTROL PARTS

Products

PositionProduct
12311622 Whirlpool Control Box
22311611 Whirlpool Refrigerator Bracket
3WP2149705 Whirlpool Refrigerator Door Switch
44388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
5489392 Whirlpool Refrigerator Screw
6489203 Whirlpool Refrigerator Washer
7WP2198202 Whirlpool Refrigerator Temperature Thermostat
8WP3196557 Whirlpool Screw
9WP2182195 Whirlpool Refrigerator Cam
101110560 Whirlpool Refrigerator Bearing
11627068 Whirlpool Refrigerator Screw
12WP2196062 Whirlpool Refrigerator Clip
13Pivot Arm
14WP965173 Whirlpool Dishwasher Screw
154387478 Whirlpool Refrigerator Light Socket
16WP2196003 Whirlpool Refrigerator Bar Riser
17W11679940 Whirlpool Refrigerator Light Bulb Assembly
182311633 Whirlpool Refrigerator Wire Harness
19WP1115374 Whirlpool Refrigerator Clip
202311615 Whirlpool Refrigerator Knob
212311631 Whirlpool Refrigerator Rod
22Fastener, Push-On
23W10723843 Whirlpool Refrigerator Thermostat Knob
