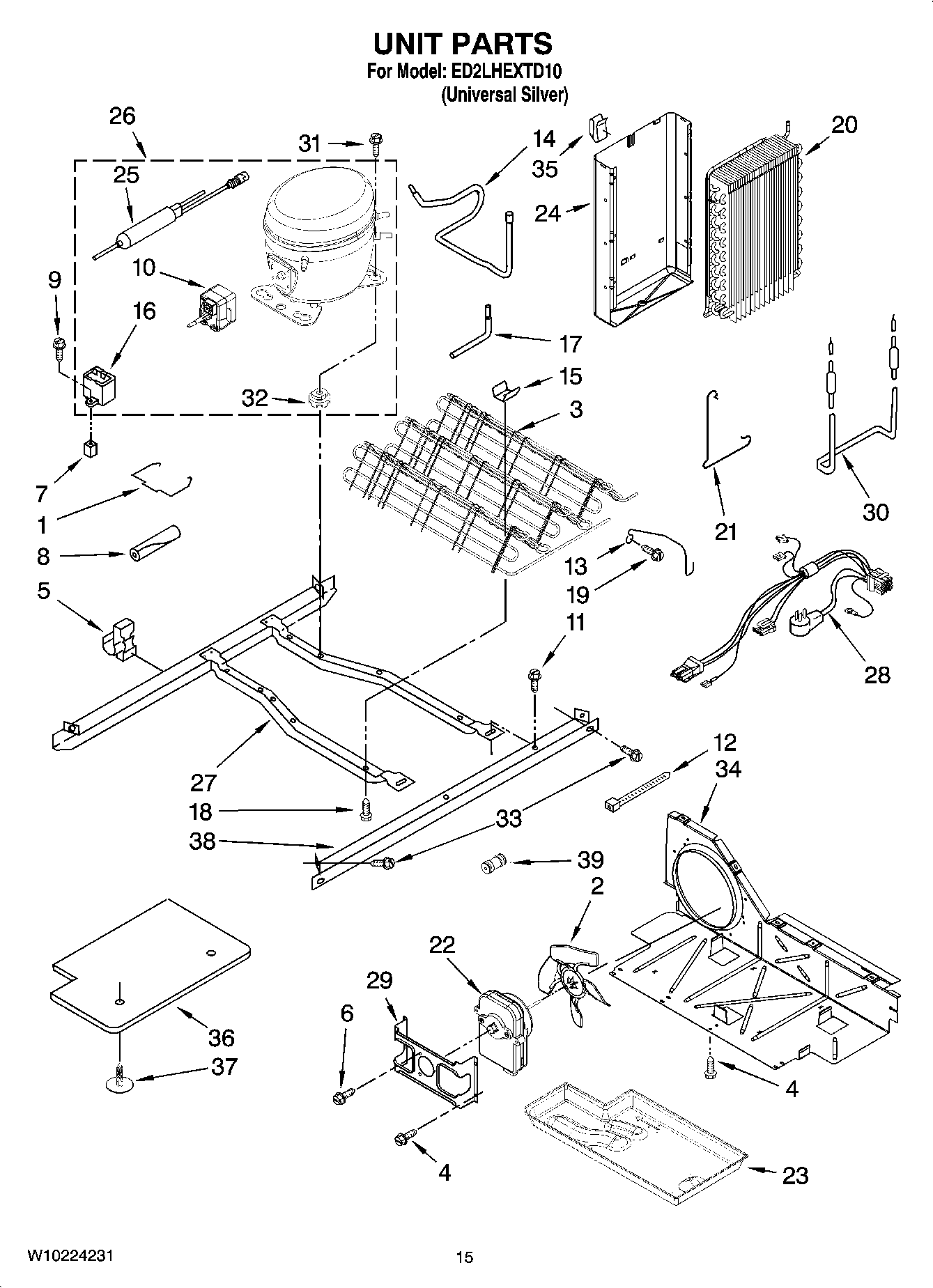

ED2LHEXTD10 09 – UNIT PARTS

ED2LHEXTD10 09 – UNIT PARTS

Written by

in

ED2LHEXTD10 09 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (1/2“)
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	WP978025 Whirlpool Refrigerator Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
	REFRIGERANT CHARGE 5.0 oz. (R-134A)
1	2212996 Whirlpool Refrigerator Retainer
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	Screw Grommet
8	SLEEVE
9	W11693756 Whirlpool Screw Assembly
10	WP2188831 Whirlpool Refrigerator Start Device
11	WP489427 Whirlpool Refrigerator Screw
12	WPW10339879 Whirlpool Wire Tie
13	Guard, Fan
14	2220642 Whirlpool Refrigerator Tube
15	W10683556 Whirlpool Refrigerator Clip
16	WP65889-4 Whirlpool Refrigerator Capacitor
17	W10858105 Whirlpool Refrigerator Tube
18	W11544659 Whirlpool Refrigerator Screw
19	WP489478 Whirlpool Refrigerator Screw
20	WP2188822 Whirlpool Refrigerator Evaporator
21	Clamp
22	WP2188874 Whirlpool Refrigerator Condenser Motor
23	WPW10614158 Whirlpool Refrigerator Evaporator Tray
24	WPW10194474 Whirlpool Refrigerator Shield
25	WPW10143759 Whirlpool Dryer Filter
25	W10843121 Whirlpool Refrigerator Tube
26	W10355489 Whirlpool Refrigerator Compressor
27	2304903 Whirlpool Refrigerator Frame
28	WPW10309395 Whirlpool Refrigerator Wire Harness
29	WP2181929 Whirlpool Refrigerator Bracket
30	WP2323197 Whirlpool Refrigerator Heater
32	876811 Whirlpool Grommet
32	W11661108 Whirlpool Grommet
33	489340 Whirlpool Refrigerator Screw
34	W10896764 Whirlpool Refrigerator Air Baffle
35	Clip, Heat Shield
36	W11115203 Whirlpool Control Panel
37	489396 Whirlpool Refrigerator Clip
38	W10207512 Whirlpool Rail Unit
39	WPW10334458 Whirlpool Refrigerator Connector
