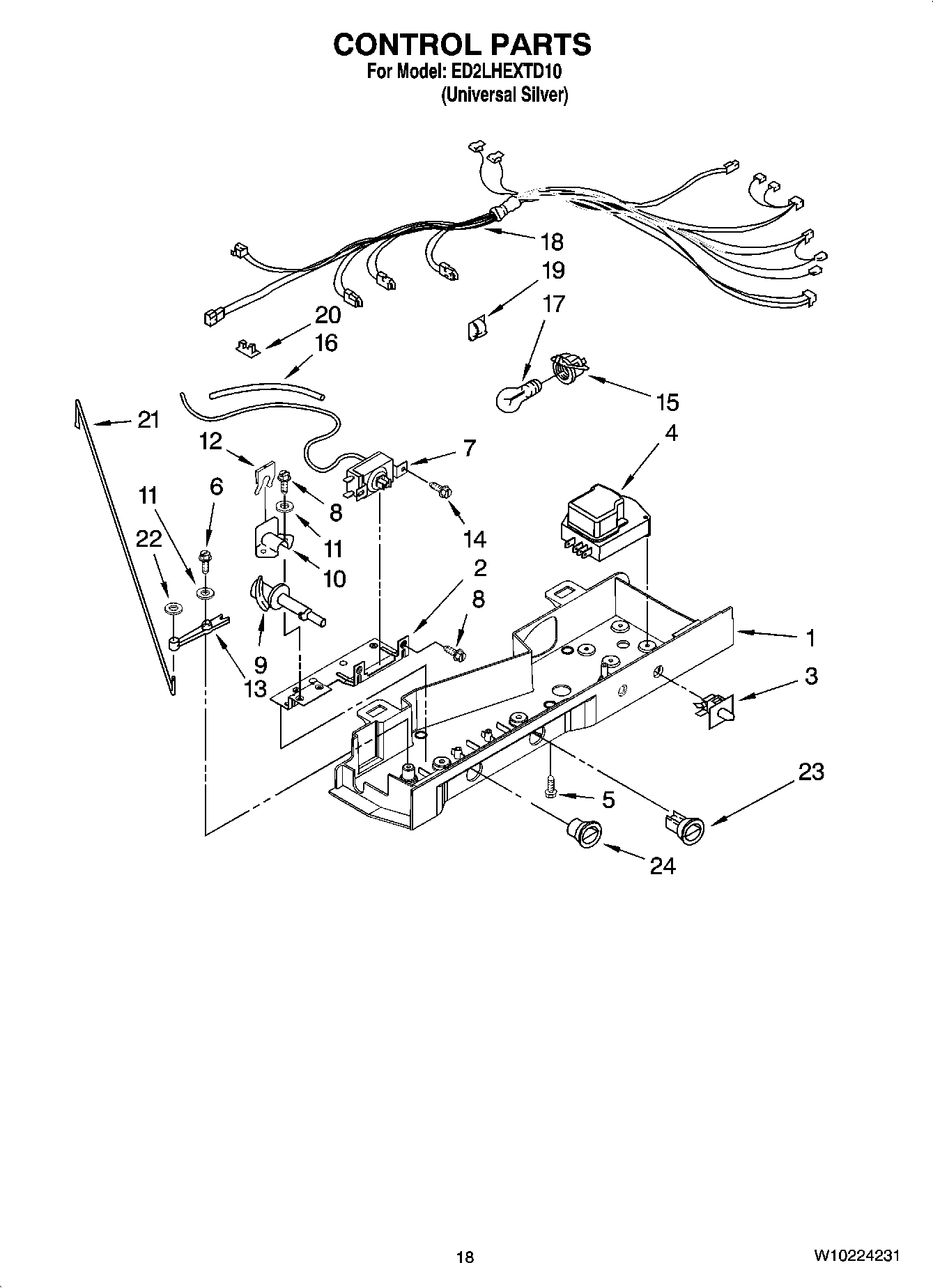

ED2LHEXTD10 11 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	2311611 Whirlpool Refrigerator Bracket
3	WP2149705 Whirlpool Refrigerator Door Switch
4	W10822278 Whirlpool Defrost Timer
5	489392 Whirlpool Refrigerator Screw
6	627068 Whirlpool Refrigerator Screw
7	WP2198202 Whirlpool Refrigerator Temperature Thermostat
8	WP3196557 Whirlpool Screw
9	WP2182195 Whirlpool Refrigerator Cam
10	1110560 Whirlpool Refrigerator Bearing
11	489203 Whirlpool Refrigerator Washer
12	WP2196062 Whirlpool Refrigerator Clip
13	Pivot Arm
14	WP965173 Whirlpool Dishwasher Screw
15	4387478 Whirlpool Refrigerator Light Socket
16	WP2196003 Whirlpool Refrigerator Bar Riser
17	RANGE ONLY 40W 120V APPL BULB
18	2311633 Whirlpool Refrigerator Wire Harness
19	WP1115374 Whirlpool Refrigerator Clip
20	CLIP, WIRING
21	2311631 Whirlpool Refrigerator Rod
22	Fastener, Push-On
23	W10723843 Whirlpool Refrigerator Thermostat Knob
24	2311615 Whirlpool Refrigerator Knob
