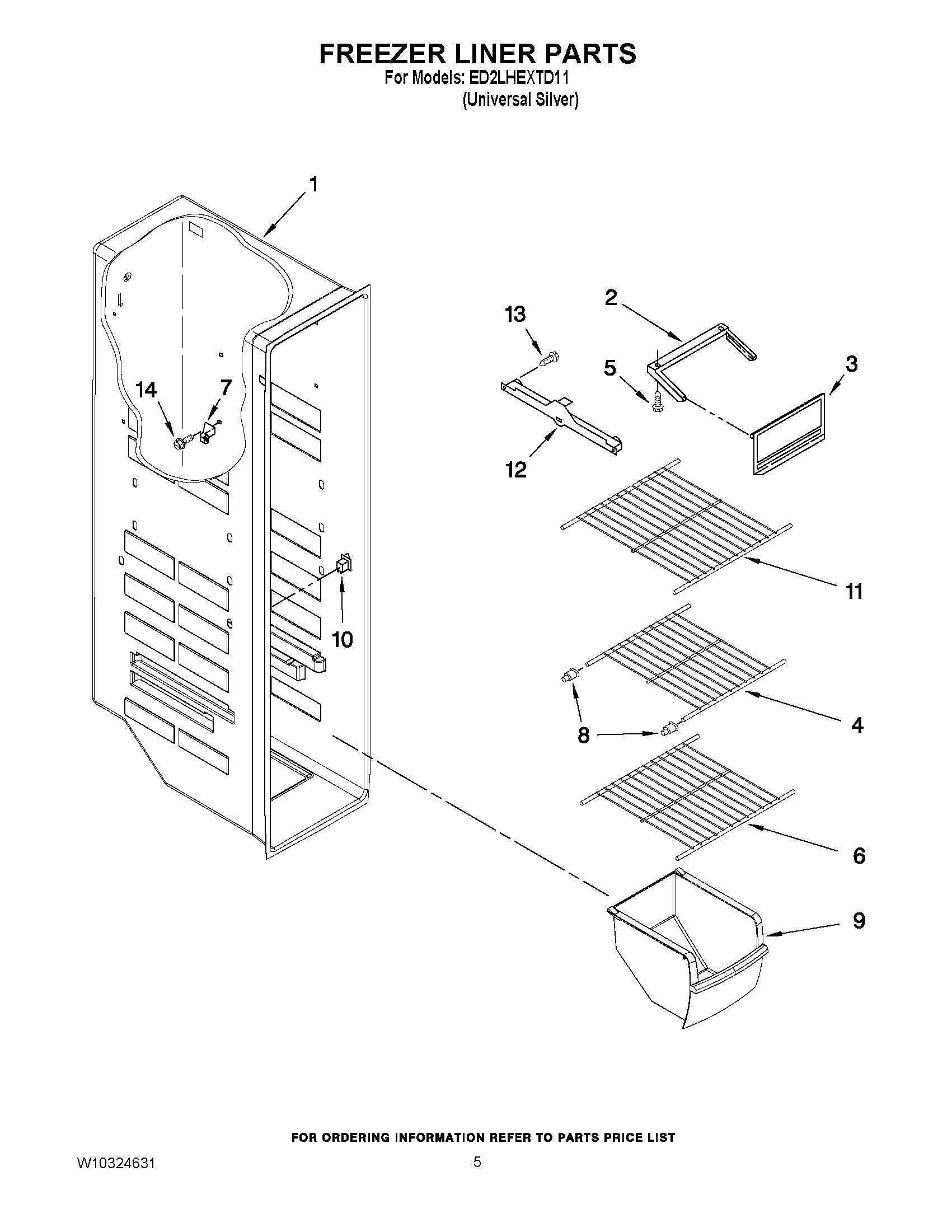

ED2LHEXTD11 04 – FREEZER LINER PARTS

ED2LHEXTD11 04 – FREEZER LINER PARTS

Written by

in

ED2LHEXTD11 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
4WPW10318951 Whirlpool Refrigerator Wire Shelf
5WP489478 Whirlpool Refrigerator Screw
6WPW10318952 Whirlpool Wire Shelf
74388405 Whirlpool Refrigerator Shelf Stud
8WPW10130299 Whirlpool Refrigerator Cup
9WP2309758 Whirlpool Refrigerator Freezer Bin
10W11457217 Whirlpool Refrigerator Rocker Switch Combination
11WPW10318953 Whirlpool Wire Shelf
12W10845583 Whirlpool Refrigerator Track
12W10845585 Whirlpool Refrigerator Track
13718257 Whirlpool Dishwasher Screw
14W10142289 Whirlpool Air Conditioner Screw
