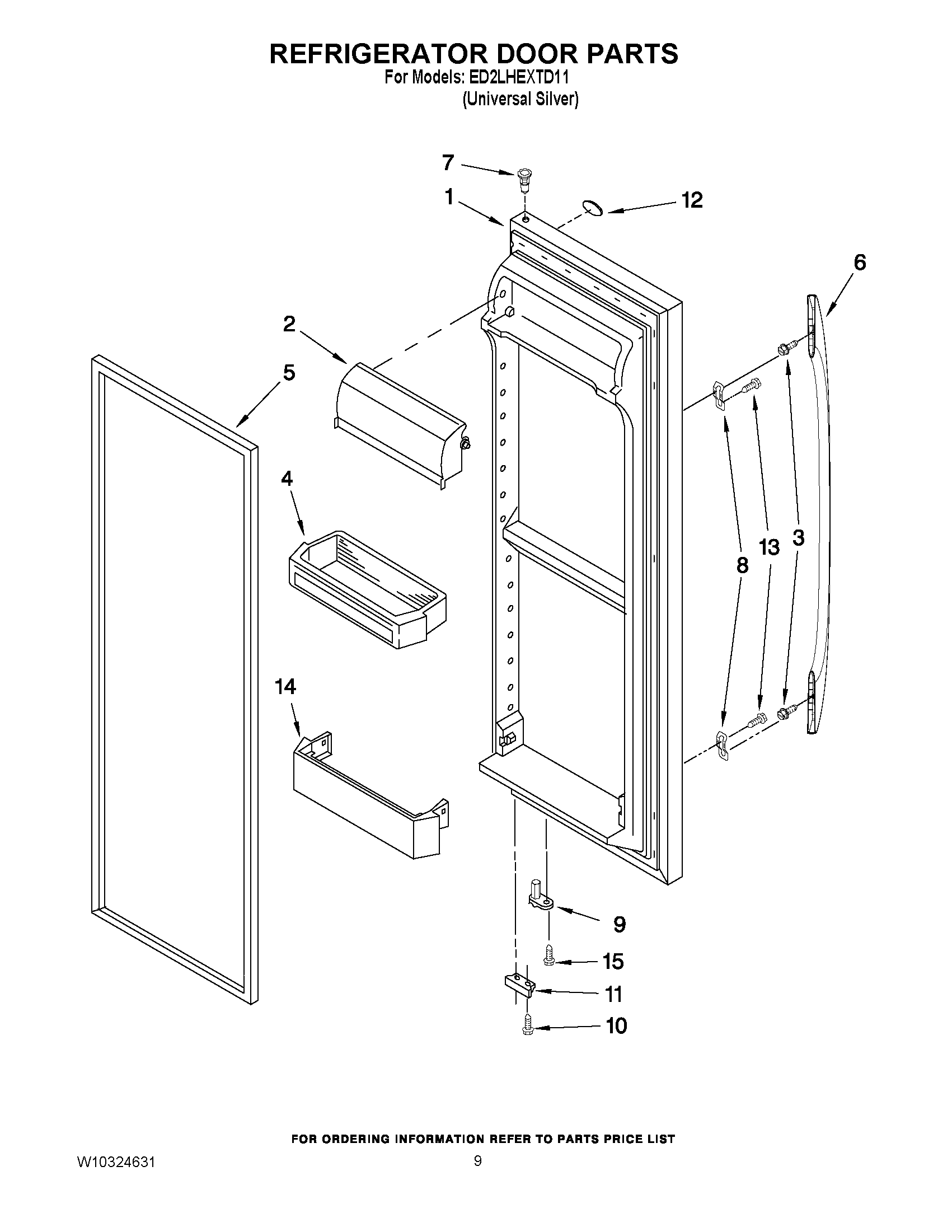

ED2LHEXTD11 06 – REFRIGERATOR DOOR PARTS

ED2LHEXTD11 06 – REFRIGERATOR DOOR PARTS

Written by

in

ED2LHEXTD11 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1L2311657US Whirlpool FIP Door
2WP2256101 Whirlpool Dairy Door
3WP489491 Whirlpool Refrigerator Screw
4WP2187172 Whirlpool Refrigerator Door Shelf Bin
52159081 Whirlpool Refrigerator Door Gasket
6WPW10136231 Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WP2255411 Whirlpool Refrigerator Clip
9WP2182179 Whirlpool Cam Closer
10WP489483 Whirlpool Screw
11Bracket, Door Stop (Black)
12WP2213265 Whirlpool Refrigerator Nameplate
13SCREW
14WP2309941 Whirlpool Refrigerator Door Bar Trim
15WP3400012 Whirlpool Refrigerator Screw
