ED2LHEXTD11 07 – FREEZER DOOR PARTS

ED2LHEXTD11 07 – FREEZER DOOR PARTS

Written by

in

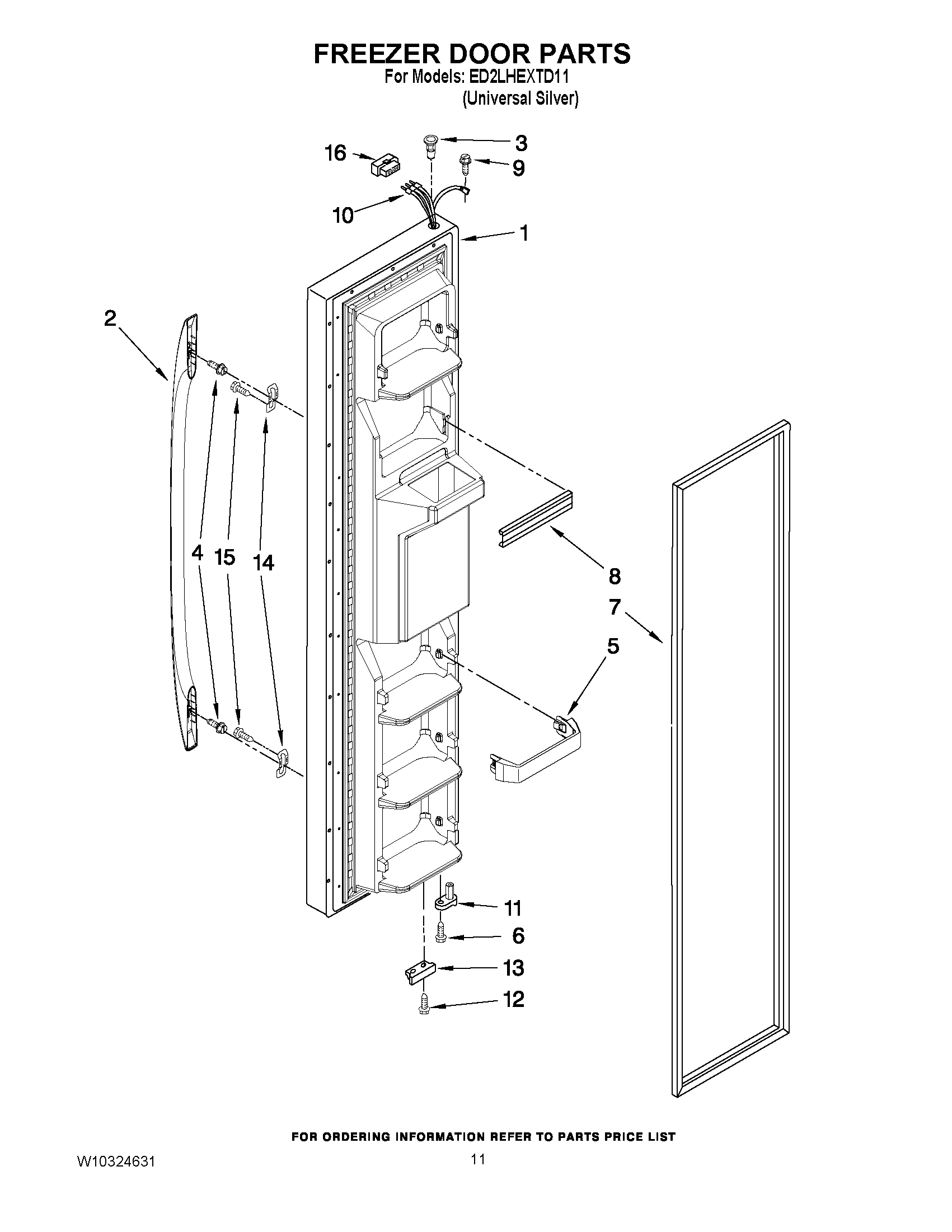

ED2LHEXTD11 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 7 And Dispenser Front Parts) (Universal Silver)
2WPW10136231 Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4SCREW
5WP2309717 Whirlpool Refrigerator Door Trim
6WP3400012 Whirlpool Refrigerator Screw
72159080 Whirlpool Refrigerator Door Gasket
8WPW10307490 Whirlpool Door Trim Assembly
9WP489128 Whirlpool Refrigerator Screw
102311642 Whirlpool Refrigerator Wire Harness
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13Bracket, Door Stop (Black)
14WP2255411 Whirlpool Refrigerator Clip
15WP489491 Whirlpool Refrigerator Screw
16WP2154473 Whirlpool Refrigerator Connector
