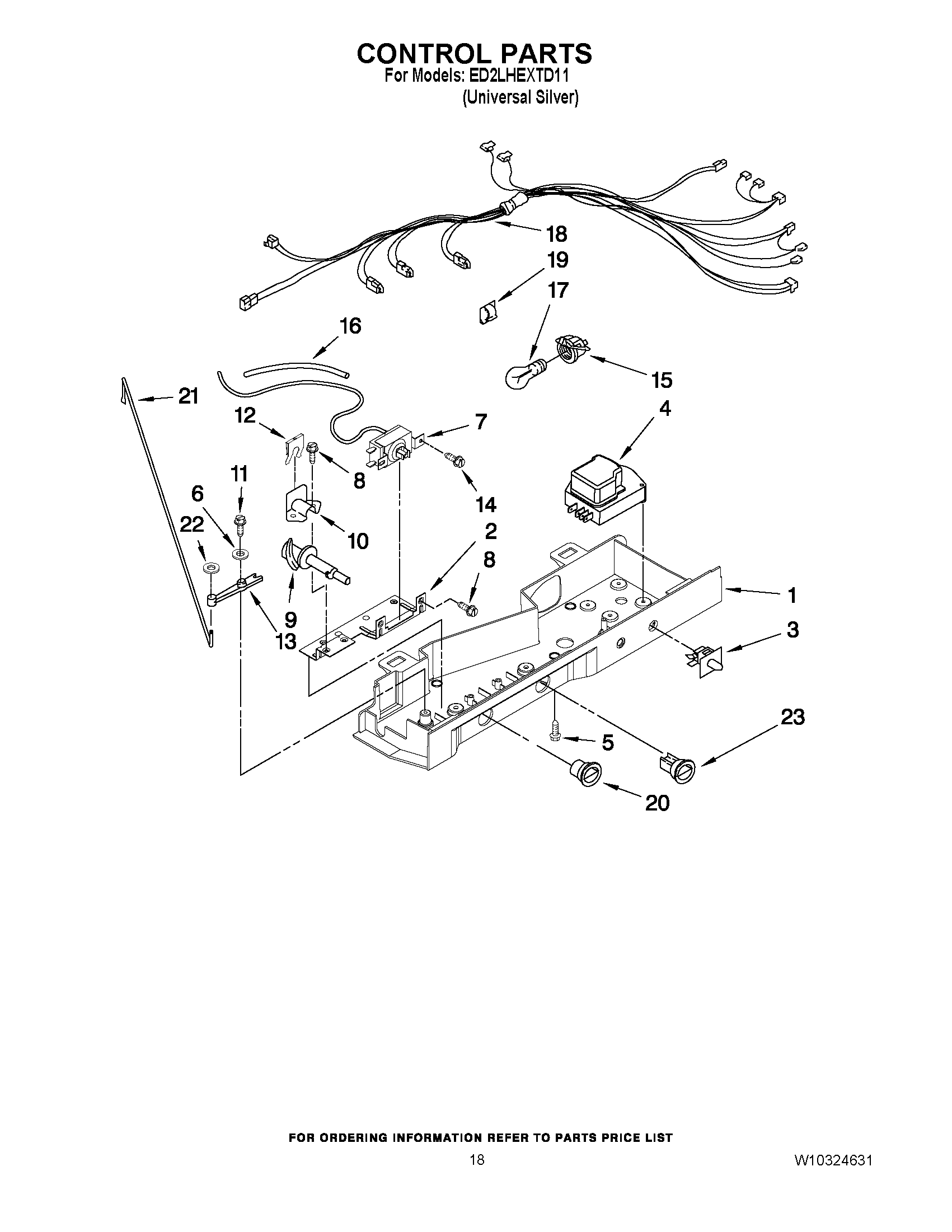

ED2LHEXTD11 11 – CONTROL PARTS
Written by
in
ED2LHEXTD11 11 – CONTROL PARTS
Products
Position
Product
1
Control Box
2
2311611 Whirlpool Refrigerator Bracket
3
WP2149705 Whirlpool Refrigerator Door Switch
4
W10822278 Whirlpool Defrost Timer
5
489392 Whirlpool Refrigerator Screw
6
489203 Whirlpool Refrigerator Washer
7
WP2198202 Whirlpool Refrigerator Temperature Thermostat
8
WP3196557 Whirlpool Screw
9
WP2182195 Whirlpool Refrigerator Cam
10
1110560 Whirlpool Refrigerator Bearing
11
627068 Whirlpool Refrigerator Screw
12
WP2196062 Whirlpool Refrigerator Clip
13
Pivot Arm
14
WP965173 Whirlpool Dishwasher Screw
15
4387478 Whirlpool Refrigerator Light Socket
16
WP2196003 Whirlpool Refrigerator Bar Riser
17
RANGE ONLY 40W 120V APPL BULB
18
2311636 Whirlpool Refrigerator Wire Harness
19
WP1115374 Whirlpool Refrigerator Clip
20
2311615 Whirlpool Refrigerator Knob
21
2311631 Whirlpool Refrigerator Rod
22
Fastener, Push-On
23
W10723843 Whirlpool Refrigerator Thermostat Knob
←
