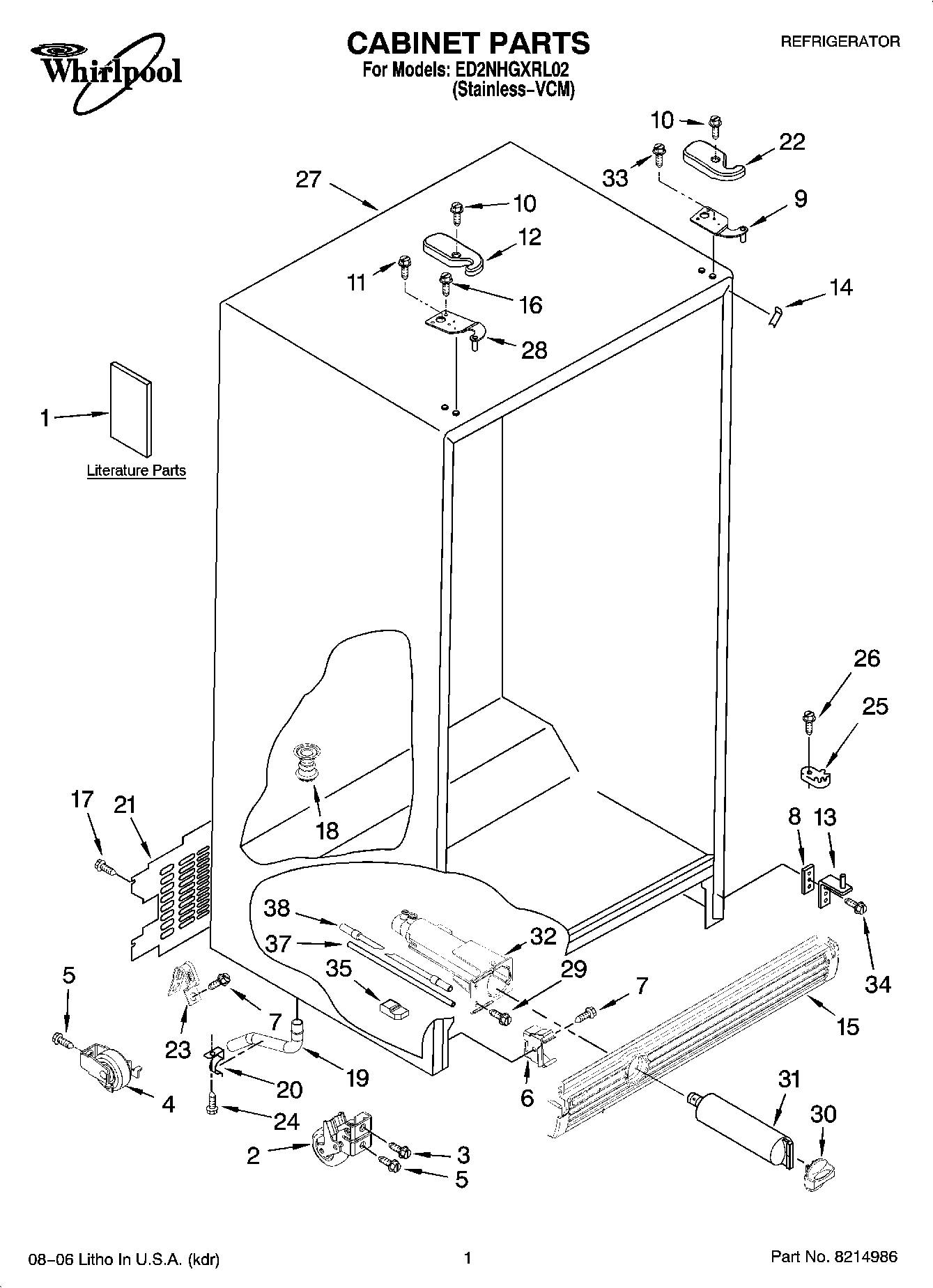

ED2NHGXRL02 01 – CABINET PARTS

Products

PositionProduct
1INSTRUCTION SHEET, DOOR REMOVAL
1Energy Guide
1Use & Care Guide
1Modular Icemaker Service Sheet
1Service & Wiring Sheet
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8WP2209697 Whirlpool Refrigerator Shim
9WP2203771 Whirlpool Refrigerator Door Hinge
10WP8281227 Whirlpool Screw
11WP489128 Whirlpool Refrigerator Screw
12WP2203407B Whirlpool Refrigerator Cover
138201707 Whirlpool Door Hinge
14Filler, Wrapper (Black)
15W10802713 Whirlpool Refrigerator Grille
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19WP1108438 Whirlpool Refrigerator Extension
20WP1108439 Whirlpool Refrigerator Clip
21WP2188756 Whirlpool Refrigerator Unit Cover
22WP2203408B Whirlpool Refrigerator Cover
23549193 Whirlpool Refrigerator Power Clamp
25WPW10329686 Whirlpool Door Cam Black
26WP489483 Whirlpool Screw
27Cabinet, (Not A Serviceable Part)
28WP2203770 Whirlpool Refrigerator Door Hinge
29WP489500 Whirlpool Refrigerator Screw
30WP2186494B Whirlpool Refrigerator Filter Cap
31Water Filter
32WP2186443 Whirlpool Water Filter Housing
33W10853301 Whirlpool Refrigerator Screw
34WP489497 Whirlpool Screw
35Block, Housing Support
37WPW10350006 Whirlpool Refrigerator Water Tube
38WP2304697 Whirlpool Refrigerator Water Tube
