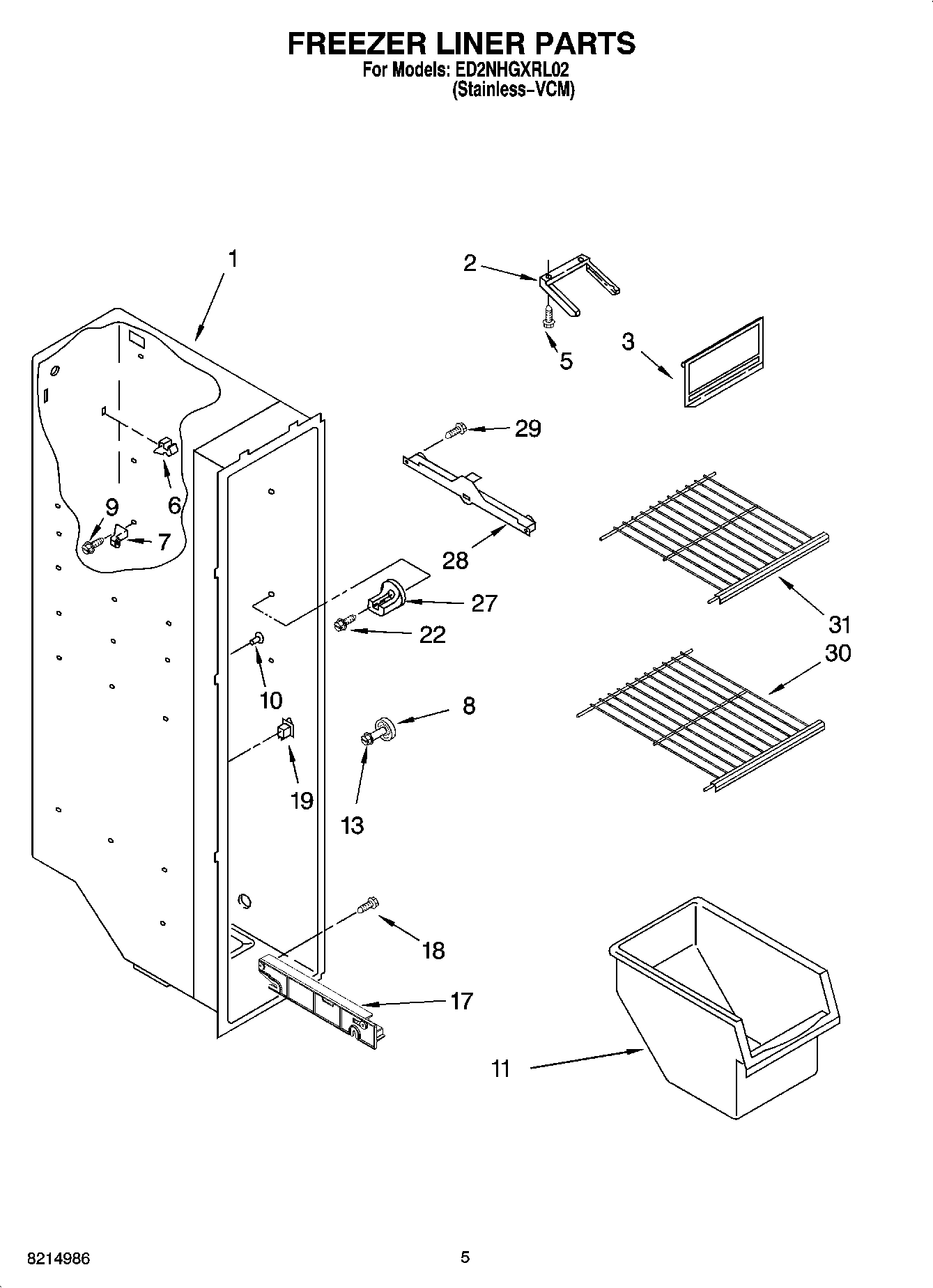

ED2NHGXRL02 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Slide, Ice Door
3	2171712 Whirlpool Refrigerator Ice Door
5	WP489478 Whirlpool Refrigerator Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	WP2196483 Whirlpool Refrigerator Shelf Stud
10	Grommet
11	Bin, Freezer
13	WP3400806 Whirlpool Screw
17	Slide, Basket (Left Side)
17	WP2261449 Whirlpool Refrigerator Track
18	W10759522 Whirlpool Screw
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
22	W10142289 Whirlpool Air Conditioner Screw
27	Stud, Rear
28	W10845583 Whirlpool Refrigerator Track
28	W10845585 Whirlpool Refrigerator Track
29	718257 Whirlpool Dishwasher Screw
30	WP2174249K Whirlpool Refrigerator Wire Shelf
31	Shelf (2)
