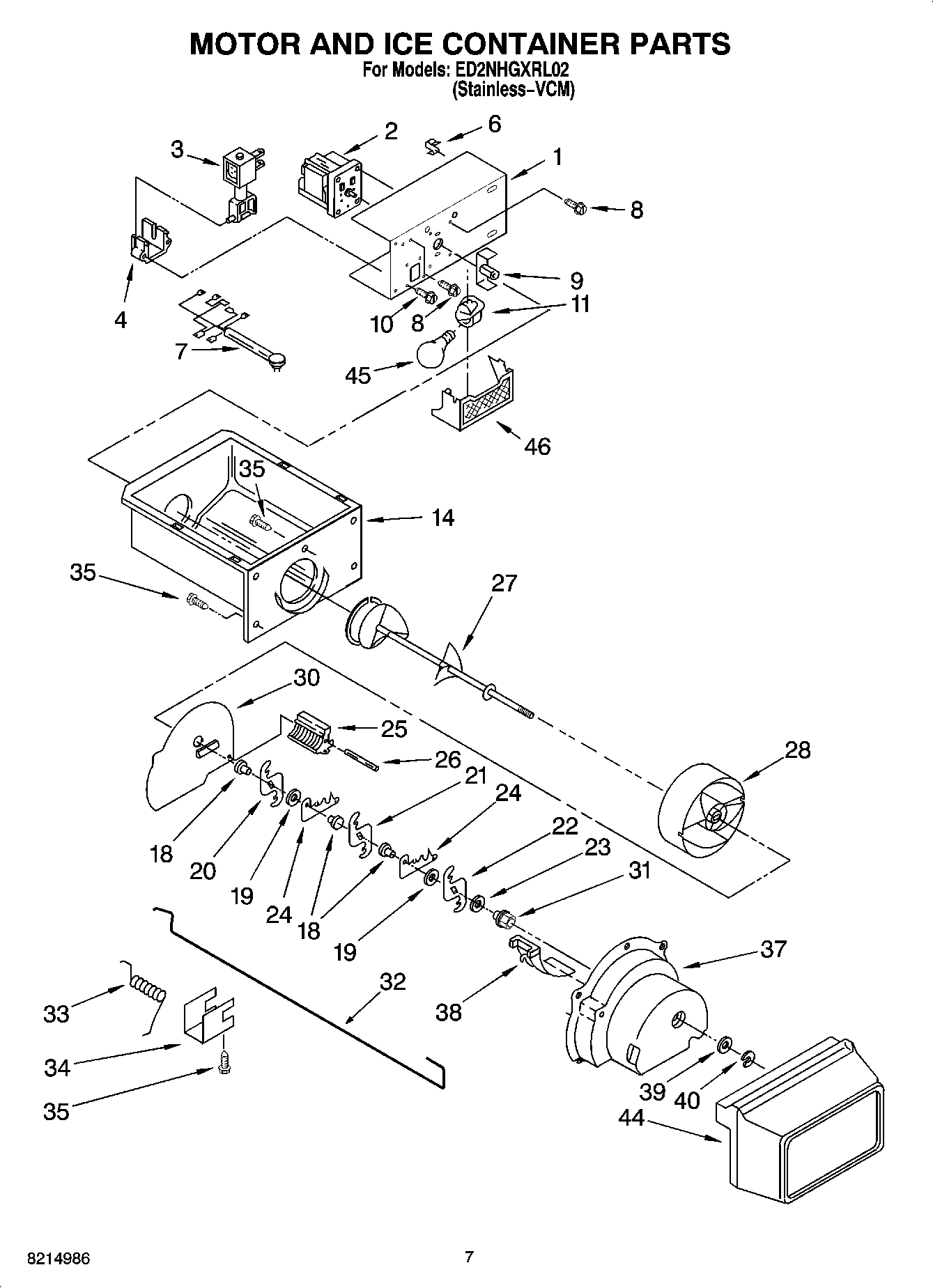

ED2NHGXRL02 05 – MOTOR AND ICE CONTAINER PARTS

Products

Position	Product
1	Bracket, Motor
2	WP2188242 Whirlpool Refrigerator Motor
3	WP2152713 Whirlpool Refrigerator Solenoid
4	W10850503 Whirlpool Refrigerator Guide
6	WP1115374 Whirlpool Refrigerator Clip
7	2311639 Whirlpool Refrigerator Dispenser Wiring Harness
8	WP489399 Whirlpool Refrigerator Screw
9	COUPLING AUGER MOTOR
10	WP489478 Whirlpool Refrigerator Screw
11	4387478 Whirlpool Refrigerator Light Socket
14	WP2196089 Whirlpool Refrigerator Container
18	WP1119005 Whirlpool Refrigerator Spacer
19	WP1119007 Whirlpool Refrigerator Spacer
20	W10278731 Whirlpool Refrigerator Blade
21	W10278732 Whirlpool Refrigerator Blade
22	W10278733 Whirlpool Refrigerator Blade
23	WP489235 Whirlpool Refrigerator Washer
24	Blade, Fixed (2)
25	2157405 Whirlpool Refrigerator Blade Block
26	489229 Whirlpool Refrigerator Roll Pin
27	W10422851 Whirlpool Ice Maker Bucket Auger
28	4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
30	W10852691 Whirlpool Refrigerator Baffle
31	WP1119018 Whirlpool Refrigerator Bearing
32	W11596045 Whirlpool Refrigerator Control Arm
33	1119020 Whirlpool Refrigerator Spring
34	1119021 Whirlpool Refrigerator Clip
35	WP488787 Whirlpool Refrigerator Screw
37	WPW10185018 Whirlpool Refrigerator Housing
38	WP1119017 Whirlpool Refrigerator Deflector
39	489234 Whirlpool Refrigerator Washer
40	WP489236 Whirlpool Refrigerator Ring
44	Front Cover, Ice Container
45	RANGE ONLY 40W 120V APPL BULB
46	WP2171706 Whirlpool Refrigerator Light Lens
