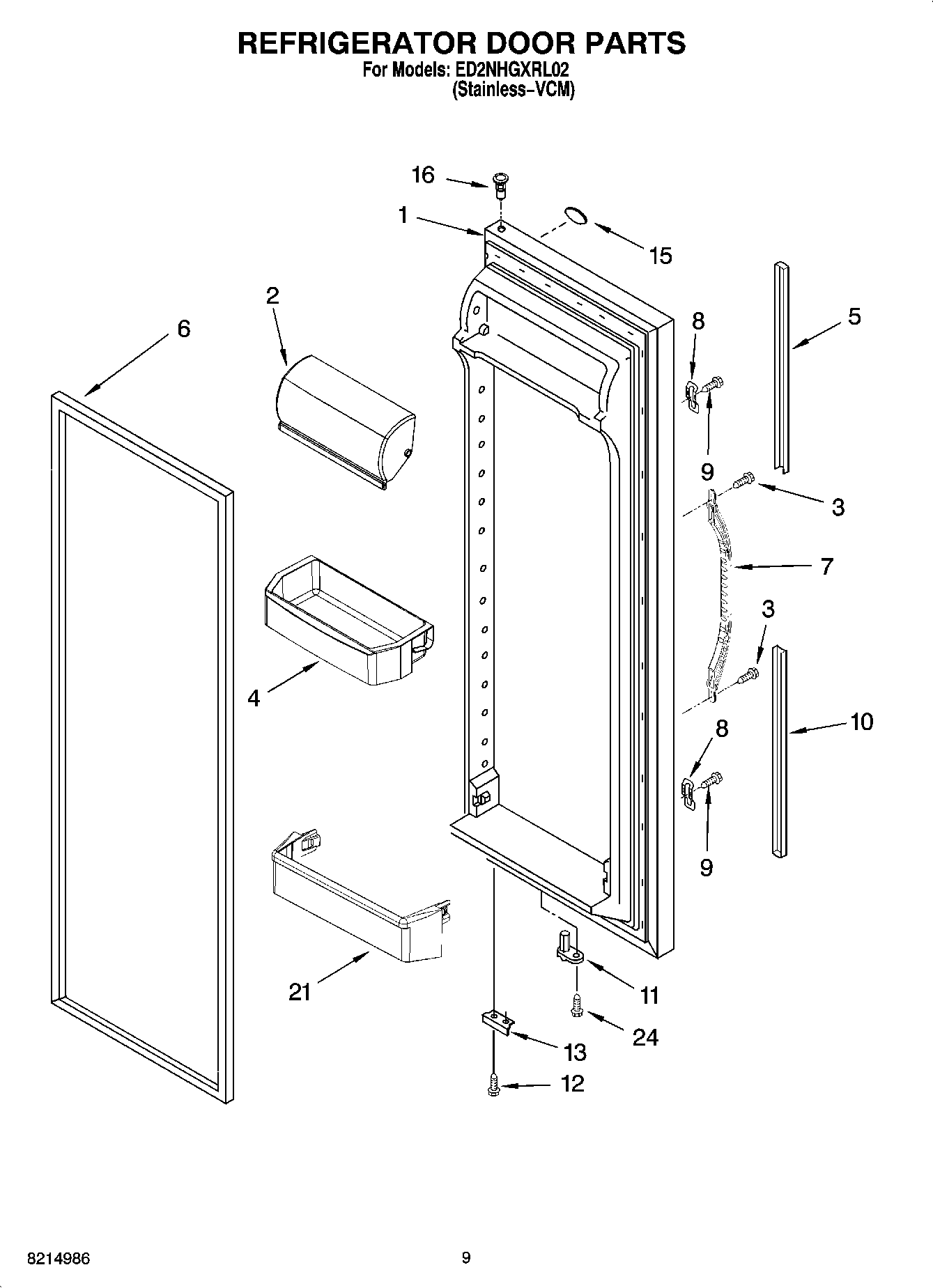

ED2NHGXRL02 06 – REFRIGERATOR DOOR PARTS

ED2NHGXRL02 06 – REFRIGERATOR DOOR PARTS

Written by

in

ED2NHGXRL02 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (Stainless VCM)
2WP2256101 Whirlpool Dairy Door
3WP489491 Whirlpool Refrigerator Screw
4WP2203828 Whirlpool Door Shelf Bin
5WP2194971B Whirlpool Refrigerator Handle Trim
62159081 Whirlpool Refrigerator Door Gasket
7WP2186649B Whirlpool Refrigerator Handle
8WP2195327 Whirlpool Refrigerator Clip
9WP3400852 Whirlpool Refrigerator Screw
10WP2194969B Whirlpool Refrigerator Handle Trim
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13WP2206629B Whirlpool Refrigerator Bracket
15WP2213265 Whirlpool Refrigerator Nameplate
16WP2182181 Whirlpool Refrigerator Thimble
21WP2177962K Whirlpool Refrigerator Door Trim
24WP3400012 Whirlpool Refrigerator Screw
