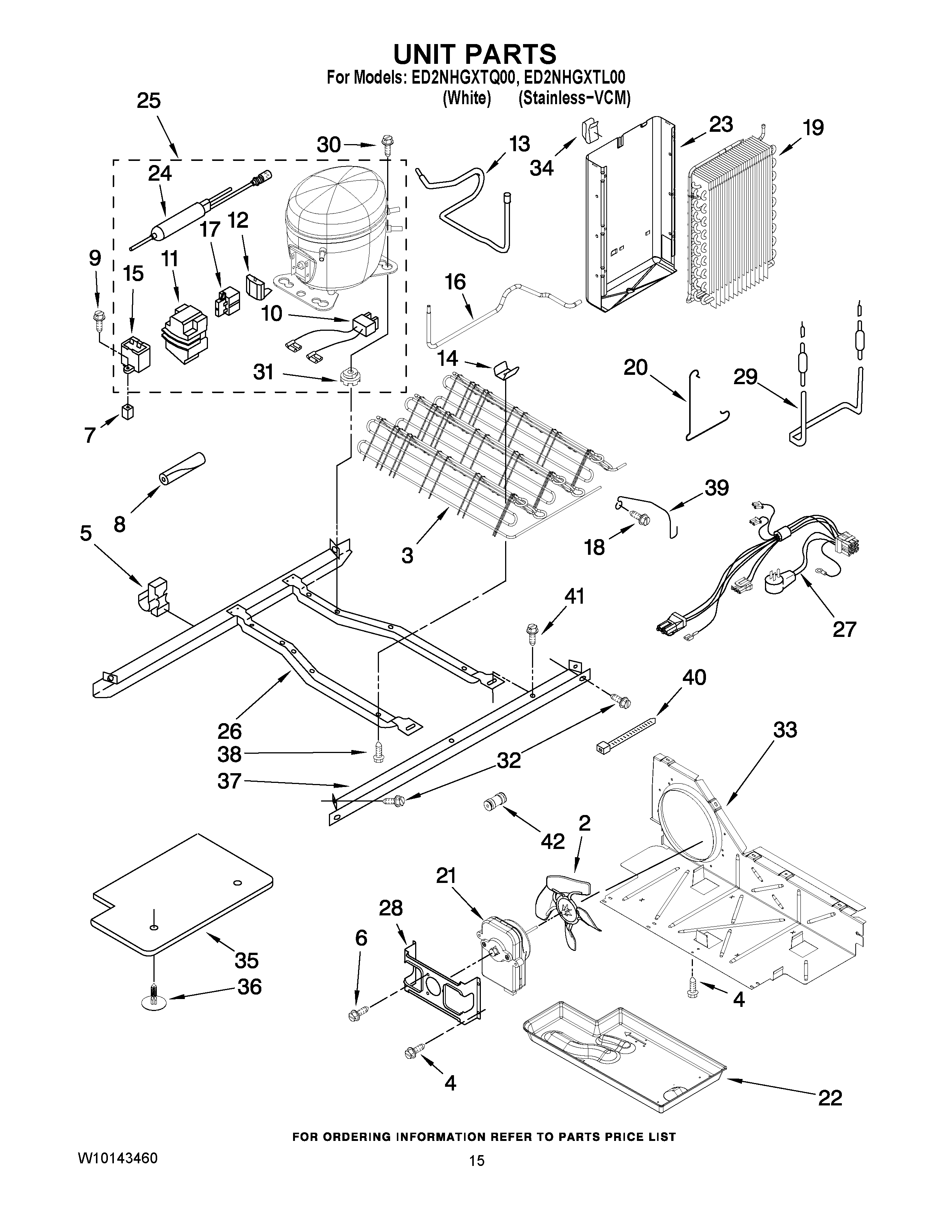

ED2NHGXTQ00 09 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	Screw Grommet
8	SLEEVE
9	W11693756 Whirlpool Screw Assembly
10	2311653 Whirlpool Refrigerator Jumper Wire
10	WP2172890 Whirlpool Refrigerator Wire
11	WP2162358 Whirlpool Refrigerator Terminal Cover
11	2217635 Whirlpool Term Cover
12	WP2187145 Whirlpool Refrigerator Overload
12	2162216 Whirlpool Refrigerator Overload
13	2220642 Whirlpool Refrigerator Tube
14	W10683556 Whirlpool Refrigerator Clip
15	WP65889-4 Whirlpool Refrigerator Capacitor
15	WPW10662129 Whirlpool Refrigerator Run Capacitor
16	2261599 Whirlpool Refrigerator Tube
17	W10920279 Whirlpool Refrigerator Start Relay
17	WP10097204 Whirlpool Start Relay
18	WP489478 Whirlpool Refrigerator Screw
19	WP2188822 Whirlpool Refrigerator Evaporator
20	Clamp
21	WP2188874 Whirlpool Refrigerator Condenser Motor
22	WPW10614158 Whirlpool Refrigerator Evaporator Tray
23	2217195 Whirlpool Refrigerator Shield
24	W10843121 Whirlpool Refrigerator Tube
24	WPW10143759 Whirlpool Dryer Filter
25	W10309990 Whirlpool Refrigerator Compressor
26	2304903 Whirlpool Refrigerator Frame
27	Unit, Harness (Includes Power Cord)
28	WP2181929 Whirlpool Refrigerator Bracket
29	WP2323197 Whirlpool Refrigerator Heater
31	876811 Whirlpool Grommet
31	WP4387558 Whirlpool Refrigerator Compressor Grommet
32	489340 Whirlpool Refrigerator Screw
33	W10896764 Whirlpool Refrigerator Air Baffle
34	Clip, Heat Shield
35	W11115203 Whirlpool Control Panel
36	489396 Whirlpool Refrigerator Clip
37	Unit Mounting Rail
38	W11544659 Whirlpool Refrigerator Screw
39	Guard, Fan
40	WPW10339879 Whirlpool Wire Tie
41	WP489427 Whirlpool Refrigerator Screw
42	WP4373559 Whirlpool Fitting
