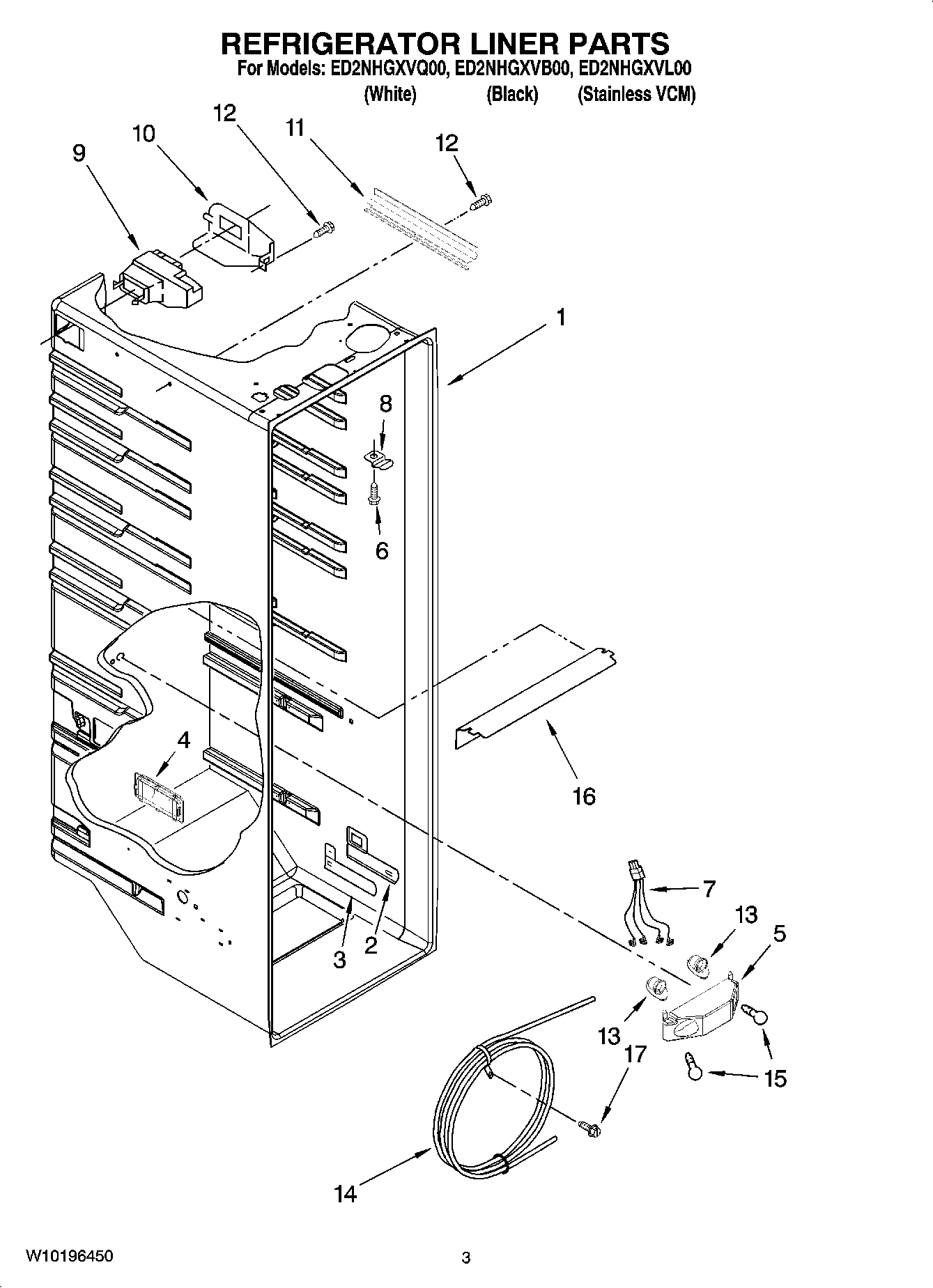

ED2NHGXVQ00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	Bracket, Dual Crisper Light
7	2311637 Whirlpool Refrigerator Wire Harness
8	2311612 Whirlpool Refrigerator Clip
9	WPW10151374 Whirlpool Refrigerator Diffuser
10	2152019 Whirlpool Refrigerator Cover
11	2150331 Whirlpool Refrigerator Wire Cover
12	W10759522 Whirlpool Screw
13	4387478 Whirlpool Refrigerator Light Socket
14	WP2256126 Whirlpool Refrigerator Reservoir
15	RANGE ONLY 40W 120V APPL BULB
16	Light Lens
17	Screw (2)
