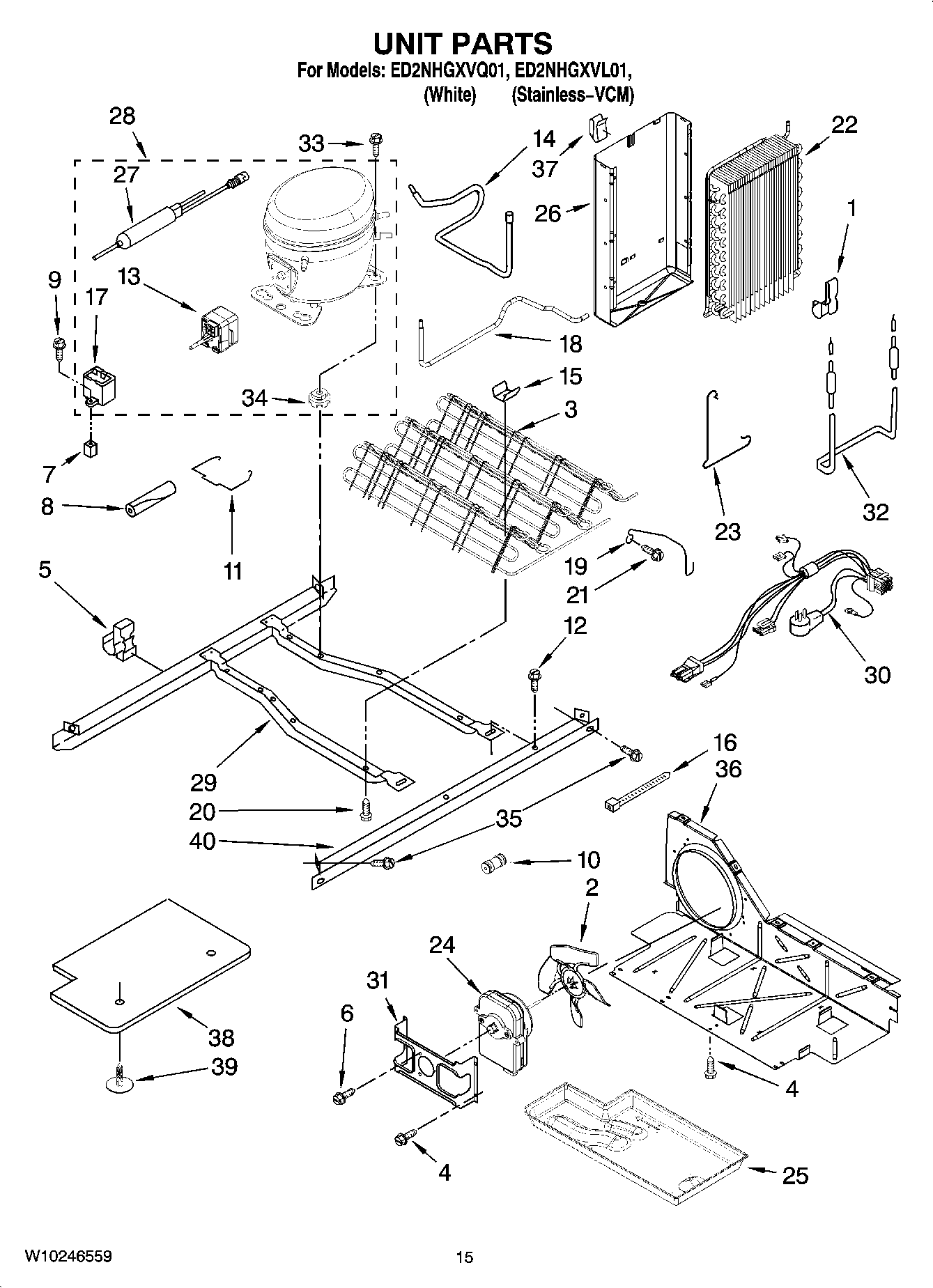

ED2NHGXVQ01 09 – UNIT PARTS

ED2NHGXVQ01 09 – UNIT PARTS

Written by

in

ED2NHGXVQ01 09 – UNIT PARTS

Products

PositionProduct
876764 Whirlpool Refrigerator Primary Valve
REFRIGERANT CHARGE 5.0 oz. (R-134A)
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
Following Parts Not Illustrated and Optional Parts Not Included
VALVE, ACCESS (5/8“)
1W11623163 Whirlpool Refrigerator Clip
2W10156818 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5Clip, Wire & Tube
6WP8533993 Whirlpool Refrigerator Screw
7Screw Grommet
8SLEEVE
9W11693756 Whirlpool Screw Assembly
10WPW10334458 Whirlpool Refrigerator Connector
112212996 Whirlpool Refrigerator Retainer
12WP489427 Whirlpool Refrigerator Screw
13WP2188831 Whirlpool Refrigerator Start Device
142220642 Whirlpool Refrigerator Tube
15W10683556 Whirlpool Refrigerator Clip
16WPW10339879 Whirlpool Wire Tie
17WP65889-4 Whirlpool Refrigerator Capacitor
18Tube, Condenser to Heat Loop
19Guard, Fan
20W11544659 Whirlpool Refrigerator Screw
21WP489478 Whirlpool Refrigerator Screw
22WP2188822 Whirlpool Refrigerator Evaporator
23Clamp
24WP2188874 Whirlpool Refrigerator Condenser Motor
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26WPW10194474 Whirlpool Refrigerator Shield
27WPW10143759 Whirlpool Dryer Filter
28W10355489 Whirlpool Refrigerator Compressor
292304903 Whirlpool Refrigerator Frame
30WPW10309395 Whirlpool Refrigerator Wire Harness
31WP2181929 Whirlpool Refrigerator Bracket
32WP2323197 Whirlpool Refrigerator Heater
34876811 Whirlpool Grommet
34W11661108 Whirlpool Grommet
35489340 Whirlpool Refrigerator Screw
36W10896764 Whirlpool Refrigerator Air Baffle
37Clip, Heat Shield
38W11115203 Whirlpool Control Panel
39489396 Whirlpool Refrigerator Clip
40WPW10196323 Whirlpool Refrigerator Rail Assembly
