ED2NTGXLT01 06 – REFRIGERATOR DOOR
Written by
in

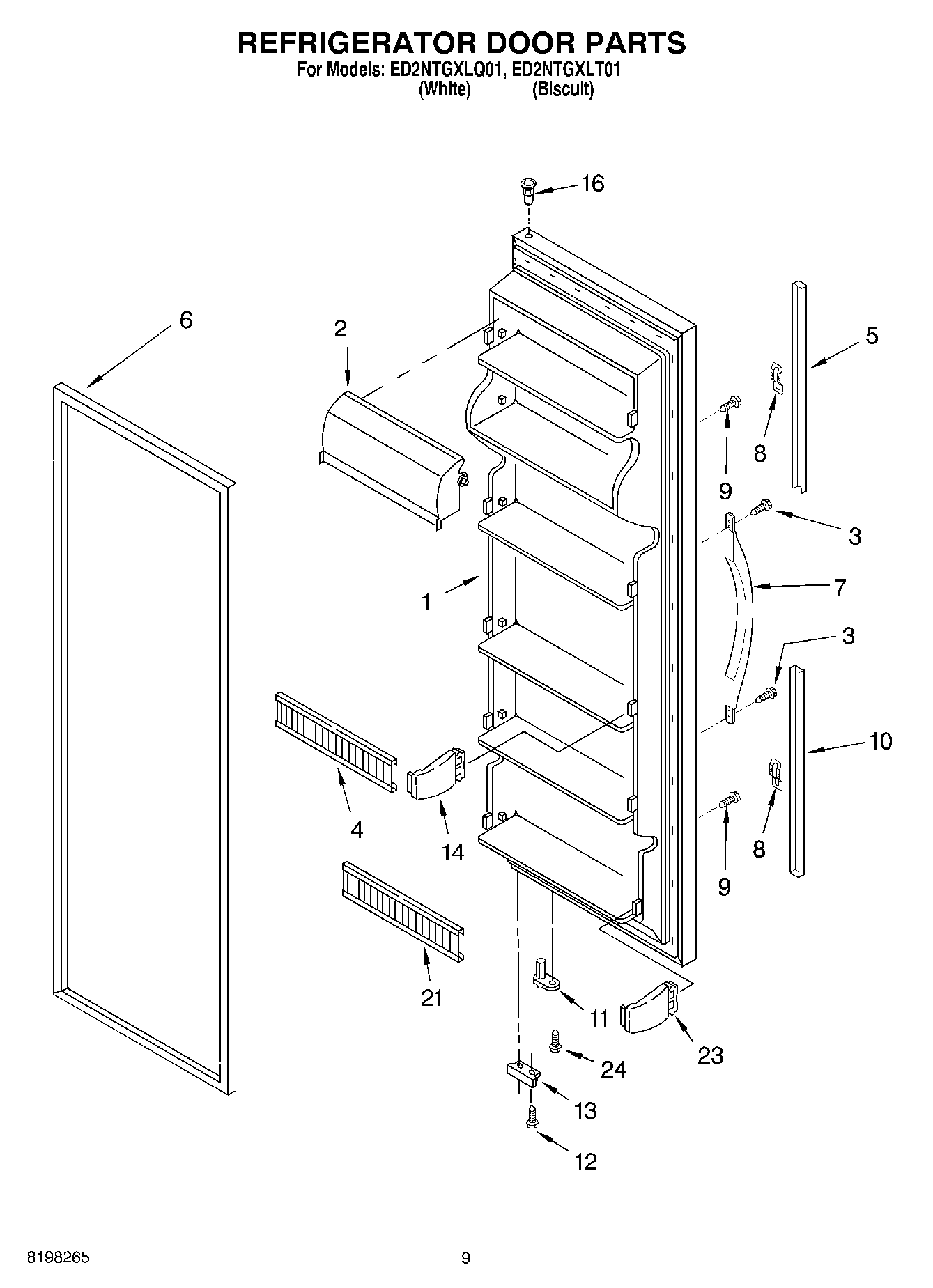

ED2NTGXLT01 06 – REFRIGERATOR DOOR
Products
Position
Product
1
Refrigerator Door (Includes Item 6) (White)
1
Refrigerator Door (Includes Item 6) (Biscuit)
2
WP2256101 Whirlpool Dairy Door
3
WP489491 Whirlpool Refrigerator Screw
4
WP2256010 Whirlpool Door Shelf Trim
5
Extension, Top (White)
5
Extension, Top (Biscuit)
6
2159073 Whirlpool Refrigerator Door Gasket
7
Handle, Center (White)
7
Handle, Center (Biscuit)
8
WP2195327 Whirlpool Refrigerator Clip
9
WP3400852 Whirlpool Refrigerator Screw
10
Extension, Bottom (White)
10
Extension, Bottom (Biscuit)
11
WP2182179 Whirlpool Cam Closer
12
WP489483 Whirlpool Screw
13
WP2206629B Whirlpool Refrigerator Bracket
14
ENDCAP
16
WP2182181 Whirlpool Refrigerator Thimble
21
Trim, Door Shelf
23
WP2195915 Whirlpool Door Shelf Support
24
WP3400012 Whirlpool Refrigerator Screw
←
