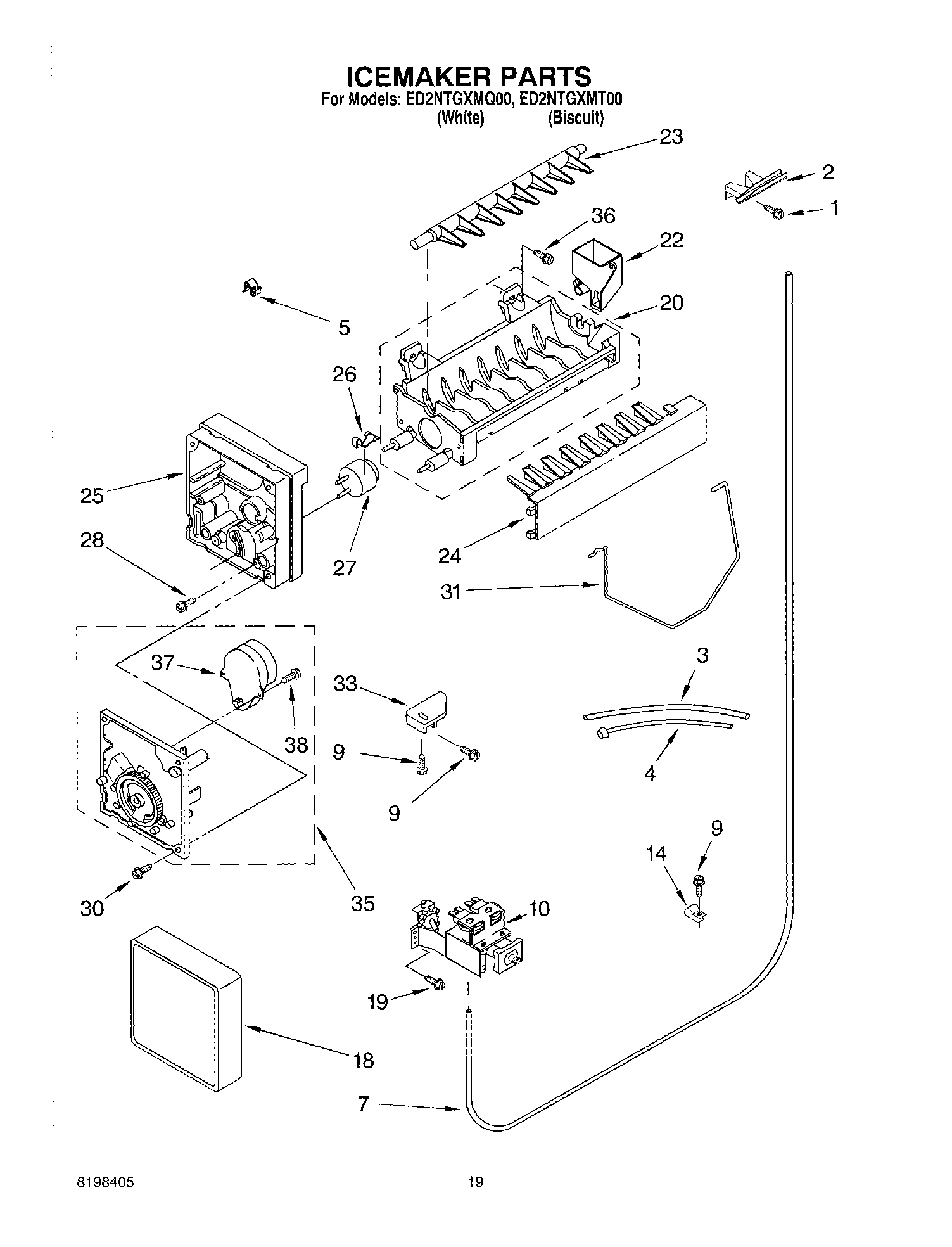

ED2NTGXMT00 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

ED2NTGXMT00 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Written by

in

ED2NTGXMT00 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Products

Position	Product
NI	WPL ARI31848A9
NI	Torx Key
NI	WP542638 Whirlpool Refrigerator Grease
NI	WP505587 Whirlpool Refrigerator Sealer
NI	WP503695 Whirlpool Refrigerator Sealer
NI	876370 Whirlpool Refrigerator Insulation
NI	833938 Whirlpool Refrigerator Terminal
NI	606755 Whirlpool Refrigerator Bag
NI	511873 Whirlpool Refrigerator Paint
NI	TAPE, VINYL (3/4 X 108“)
NI	Enamel, Black (1 Qt. Uncut)
NI	WPL 799833
NI	WPL ARI31847A1
NI	WPL ARI31846A6
NI	WPL ARI31845A4
NI	WPW10312301 Whirlpool Refrigerator Ice Container
NI	4210463RW Whirlpool Refrigerator Coil Brush
NI	72032 Whirlpool Touch Up Paint Black
NI	285006 Whirlpool Spray
NI	WPL 876029
NI	350942 Whirlpool Spray Paint
NI	CEMENT, ALUMILASTIC (1 1/4 OZ.)
NI	Almond (Uncut)
NI	WPL ARI31849A4
NI	WP72107 Whirlpool Touchup
NI	799344 Whirlpool Refrigerator Paint
NI	72017 Whirlpool Appliance Touch-Up Paint White
NI	350956 Whirlpool Spray Assembly
NI	350930 Whirlpool White Spray Paint
NI	212643 Whirlpool Refrigerator Permagum Sealer
2	W11505385 Whirlpool Refrigerator Chute
3	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
4	WPW10350006 Whirlpool Refrigerator Water Tube
5	WP628379 Whirlpool Refrigerator Clip
7	W10823511 Whirlpool Refrigerator Water Tube
9	WP489478 Whirlpool Refrigerator Screw
10	W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
14	WP488366 Whirlpool Refrigerator Clamp
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
33	W11500948 Whirlpool Refrigerator Bracket
36	WP488163 Whirlpool Refrigerator Screw
37	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38	489136 Whirlpool Refrigerator Screw
100	4317943 Whirlpool Refrigerator Ice Maker Assembly
