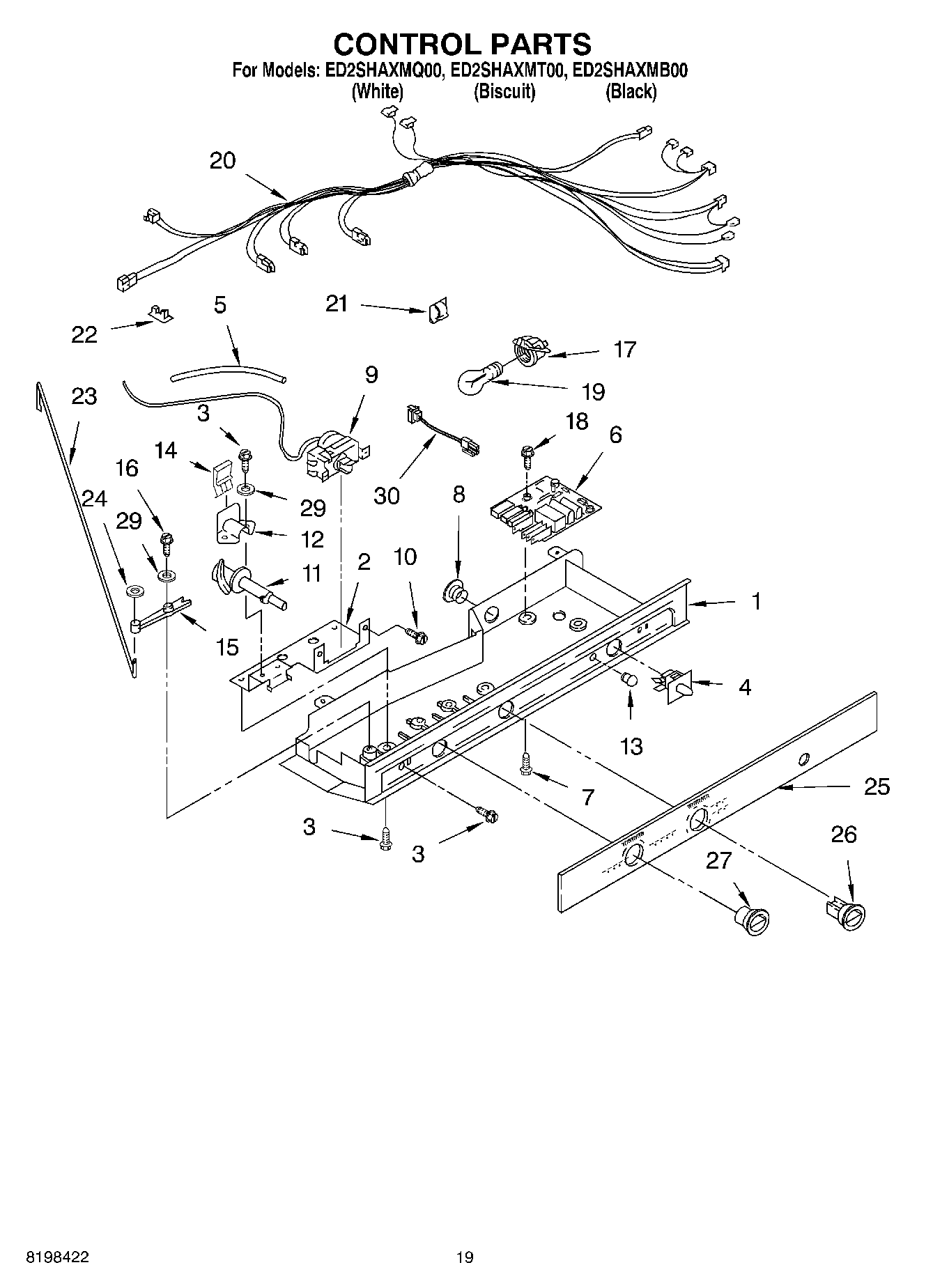

ED2SHAXMT00 11 – CONTROL PARTSadmin2025-04-26T11:08:18+00:00ED2SHAXMT00 11 – CONTROL PARTS ProductsPositionProduct1Control Box2Mounting Bracket3WP3196557 Whirlpool Screw4WP2149705 Whirlpool Refrigerator Door Switch5WP2196003 Whirlpool Refrigerator Bar Riser6WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core8940014 Whirlpool Refrigerator Primary Button Plug9WP2198202 Whirlpool Refrigerator Temperature Thermostat10WP965173 Whirlpool Dishwasher Screw11WP2182195 Whirlpool Refrigerator Cam121110560 Whirlpool Refrigerator Bearing13COVER, LIGHT LENS14WP2196062 Whirlpool Refrigerator Clip15Pivot Arm16627068 Whirlpool Refrigerator Screw174387478 Whirlpool Refrigerator Light Socket18489392 Whirlpool Refrigerator Screw19RANGE ONLY 40W 120V APPL BULB202311632 Whirlpool Refrigerator Wire Harness21WP1115374 Whirlpool Refrigerator Clip22CLIP, WIRING23Connecting Rod24Fastener, Push-On25Escutcheon, Control Box262182111 Whirlpool Refrigerator Thermal Knob27Knob, Air Control29489203 Whirlpool Refrigerator Washer30W10853646 Whirlpool Indicator Light
