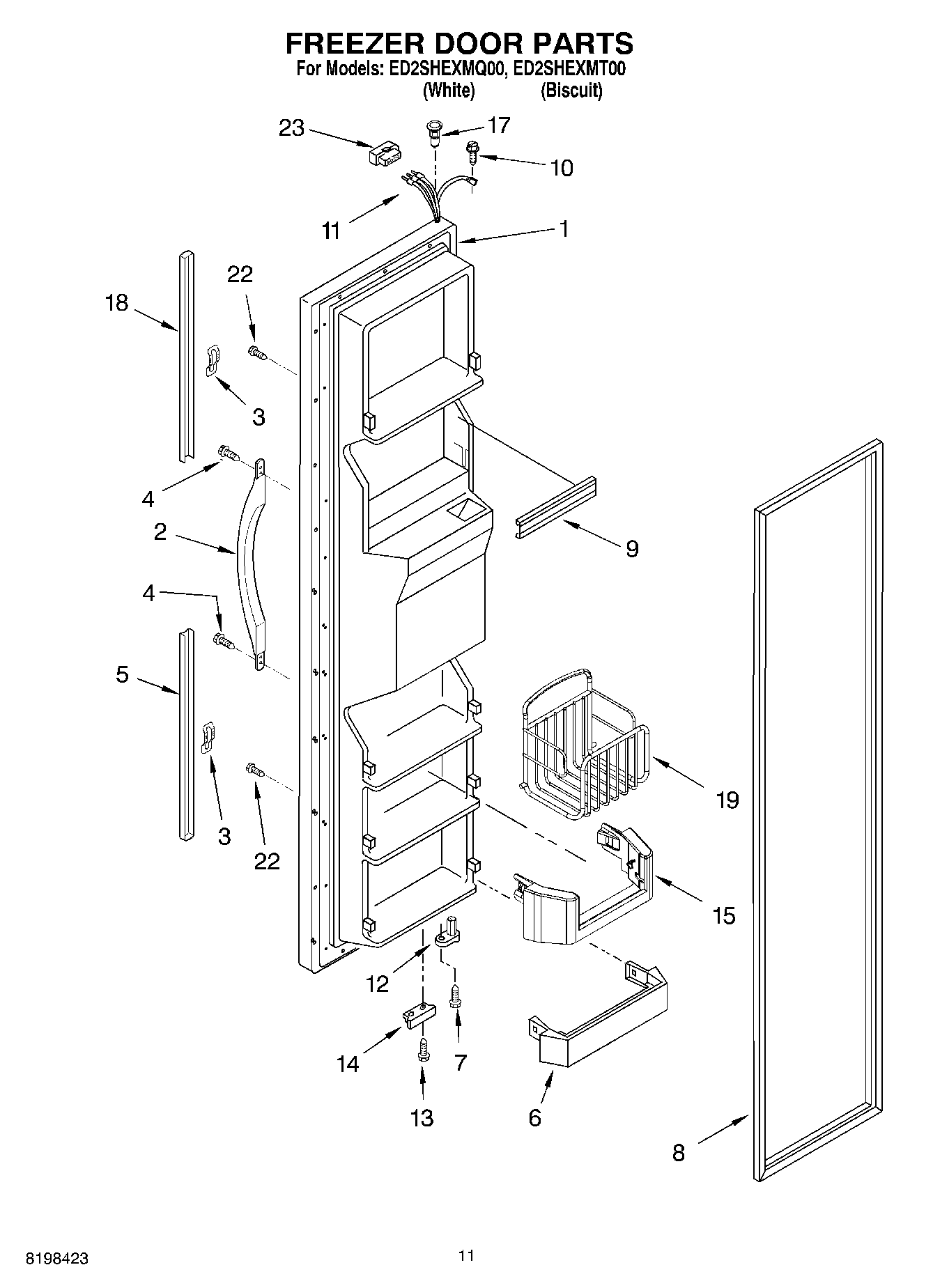

ED2SHEXMQ00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Biscuit)
2Handle, Center (Biscuit)
2Handle, Center (White)
3WP2195327 Whirlpool Refrigerator Clip
4WP489491 Whirlpool Refrigerator Screw
5Extension, Bottom (Biscuit)
5Extension, Bottom (White)
6WP2156021 Whirlpool Refrigerator Door Trim
7WP3400012 Whirlpool Refrigerator Screw
82159072 Whirlpool Refrigerator FIP Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
112311642 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
15Trivet, Tilt Out (2)
17WP2182181 Whirlpool Refrigerator Thimble
18Extension, Top (Biscuit)
18Extension, Top (White)
19Basket, Tilt Out (2)
22WP3400852 Whirlpool Refrigerator Screw
23WP2154473 Whirlpool Refrigerator Connector
