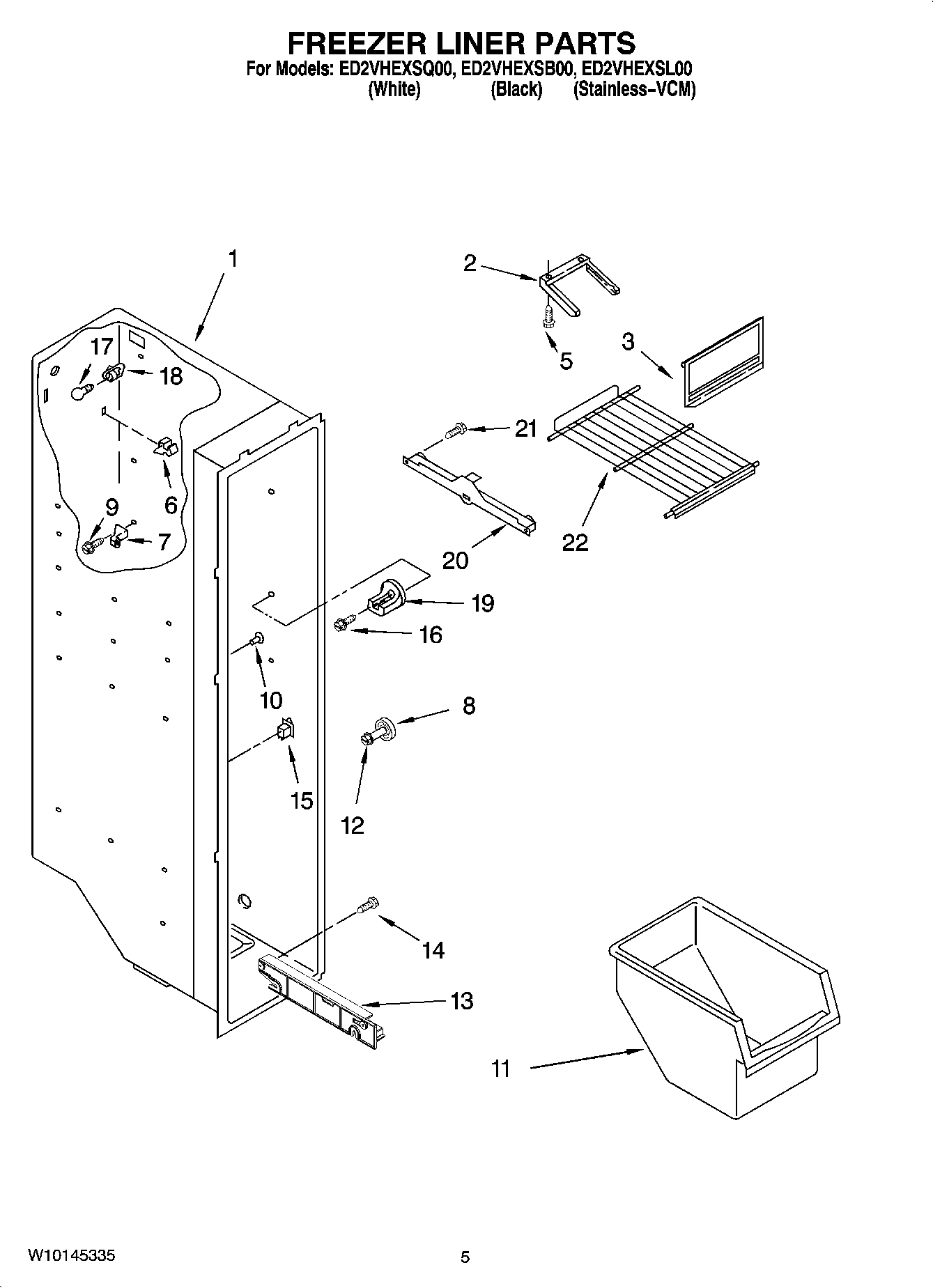

ED2VHEXSB00 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Slide, Ice Door
3	2171712 Whirlpool Refrigerator Ice Door
5	WP489478 Whirlpool Refrigerator Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	WP2196483 Whirlpool Refrigerator Shelf Stud
10	Grommet
11	Bin, Freezer
12	WP3400806 Whirlpool Screw
13	WP2261449 Whirlpool Refrigerator Track
13	Slide, Basket (Left Side)
14	W10759522 Whirlpool Screw
15	W11457217 Whirlpool Refrigerator Rocker Switch Combination
16	W10142289 Whirlpool Air Conditioner Screw
17	RANGE ONLY 40W 120V APPL BULB
18	4387478 Whirlpool Refrigerator Light Socket
19	Stud, Rear
20	W10845583 Whirlpool Refrigerator Track
20	W10845585 Whirlpool Refrigerator Track
21	718257 Whirlpool Dishwasher Screw
22	WP2174249K Whirlpool Refrigerator Wire Shelf
22	Shelf (2)
