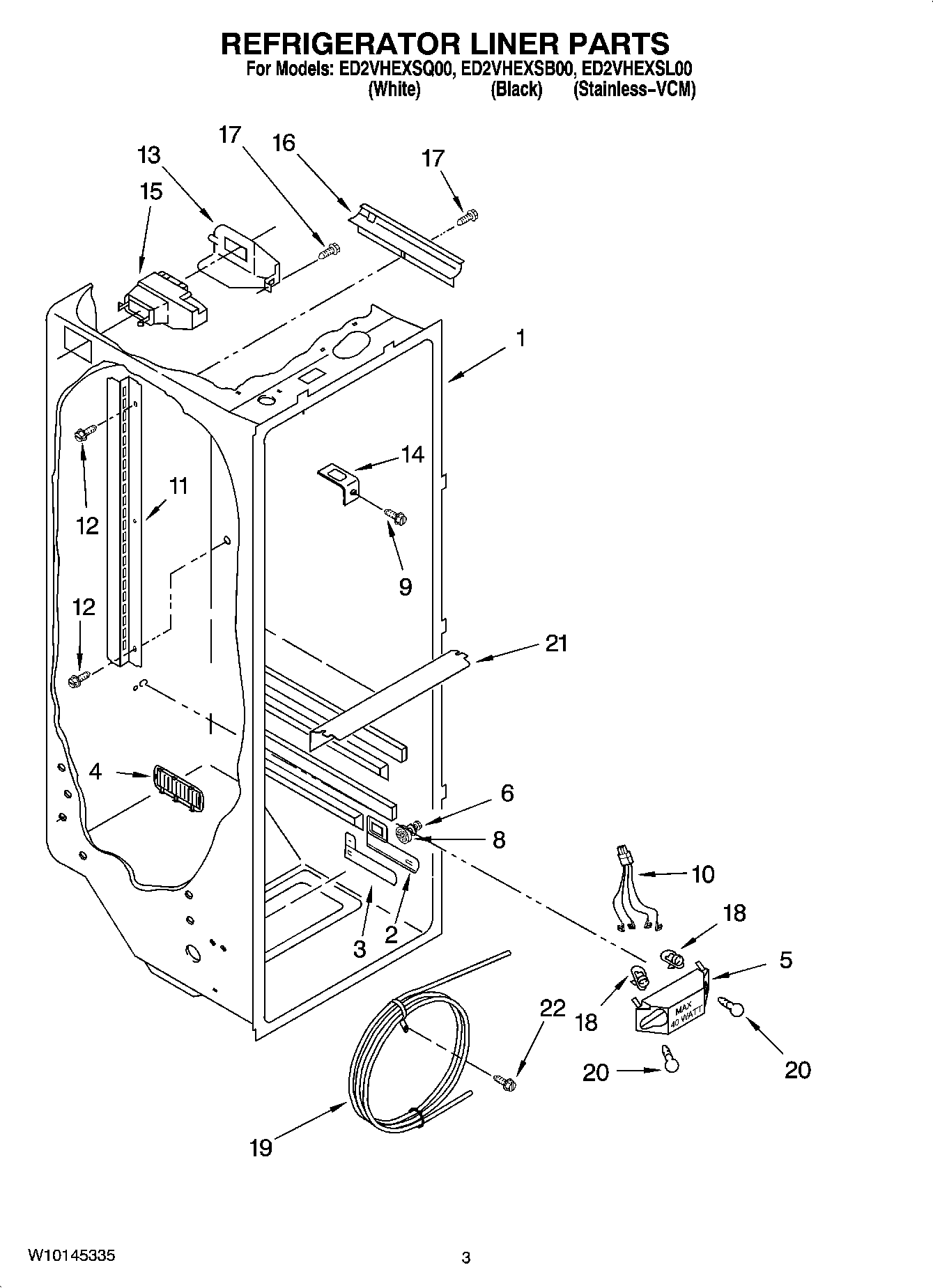

ED2VHEXSL00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	Bracket, Dual Crisper Light
6	WP3-24004-109 Whirlpool Refrigerator Screw
8	W11223328 Whirlpool Refrigerator Shelf Stud
9	WP488488 Whirlpool Refrigerator Screw
10	2311637 Whirlpool Refrigerator Wire Harness
11	Shelf Ladder
12	WP489478 Whirlpool Refrigerator Screw
13	2152019 Whirlpool Refrigerator Cover
14	WP2256085 Whirlpool Refrigerator Retainer
15	WPW10151374 Whirlpool Refrigerator Diffuser
16	2150331 Whirlpool Refrigerator Wire Cover
17	W10759522 Whirlpool Screw
18	4387478 Whirlpool Refrigerator Light Socket
19	WP2256126 Whirlpool Refrigerator Reservoir
20	RANGE ONLY 40W 120V APPL BULB
21	Light Lens
22	Screw (2)
