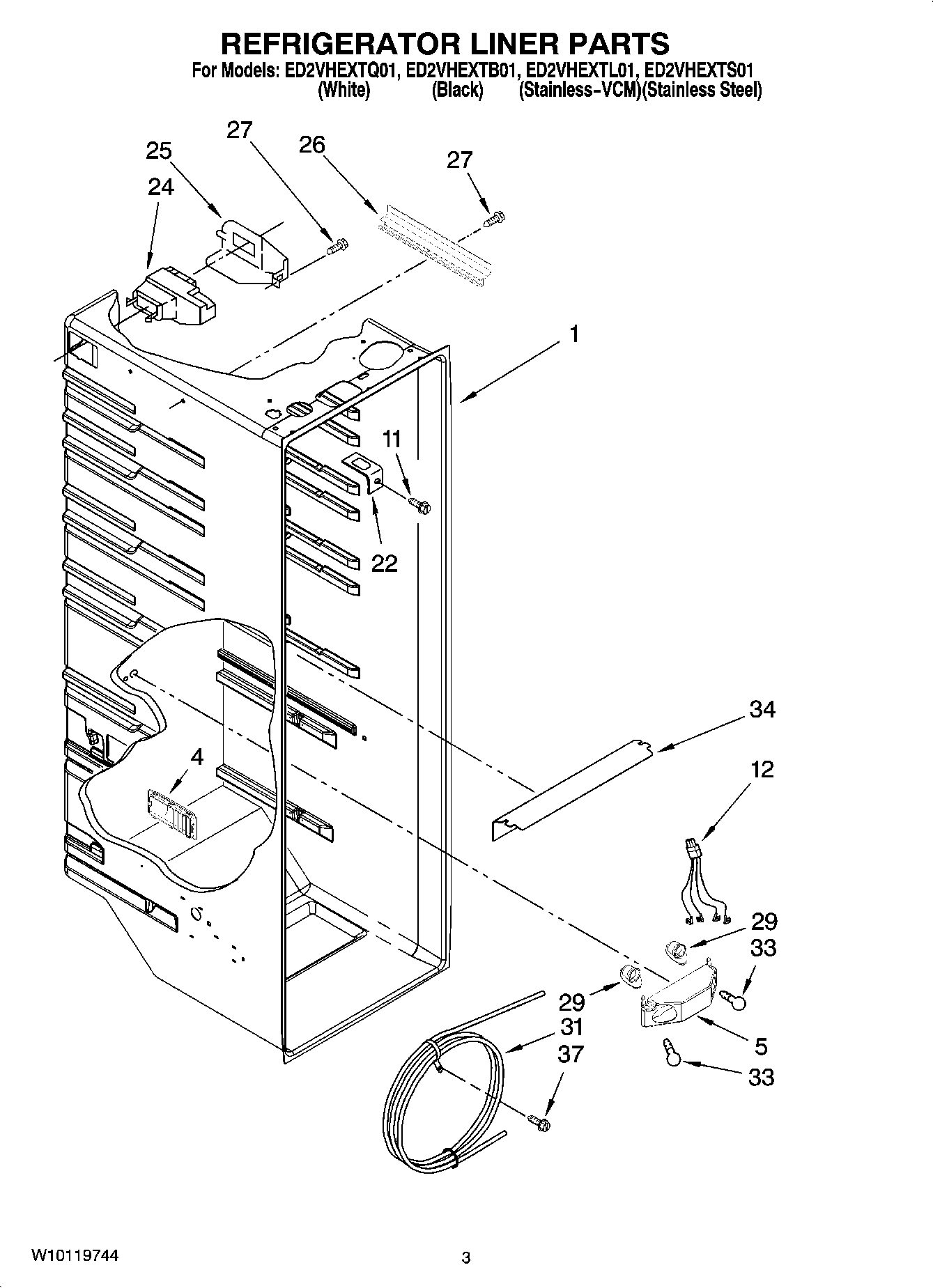

ED2VHEXTL01 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
4	Louver
5	Bracket, Dual Crisper Light
12	2311637 Whirlpool Refrigerator Wire Harness
22	2311612 Whirlpool Refrigerator Clip
24	WPW10151374 Whirlpool Refrigerator Diffuser
25	2152019 Whirlpool Refrigerator Cover
26	2150331 Whirlpool Refrigerator Wire Cover
27	W10759522 Whirlpool Screw
29	4387478 Whirlpool Refrigerator Light Socket
31	WP2256126 Whirlpool Refrigerator Reservoir
33	W11679940 Whirlpool Refrigerator Light Bulb Assembly
34	Light Lens
37	Screw (2)
