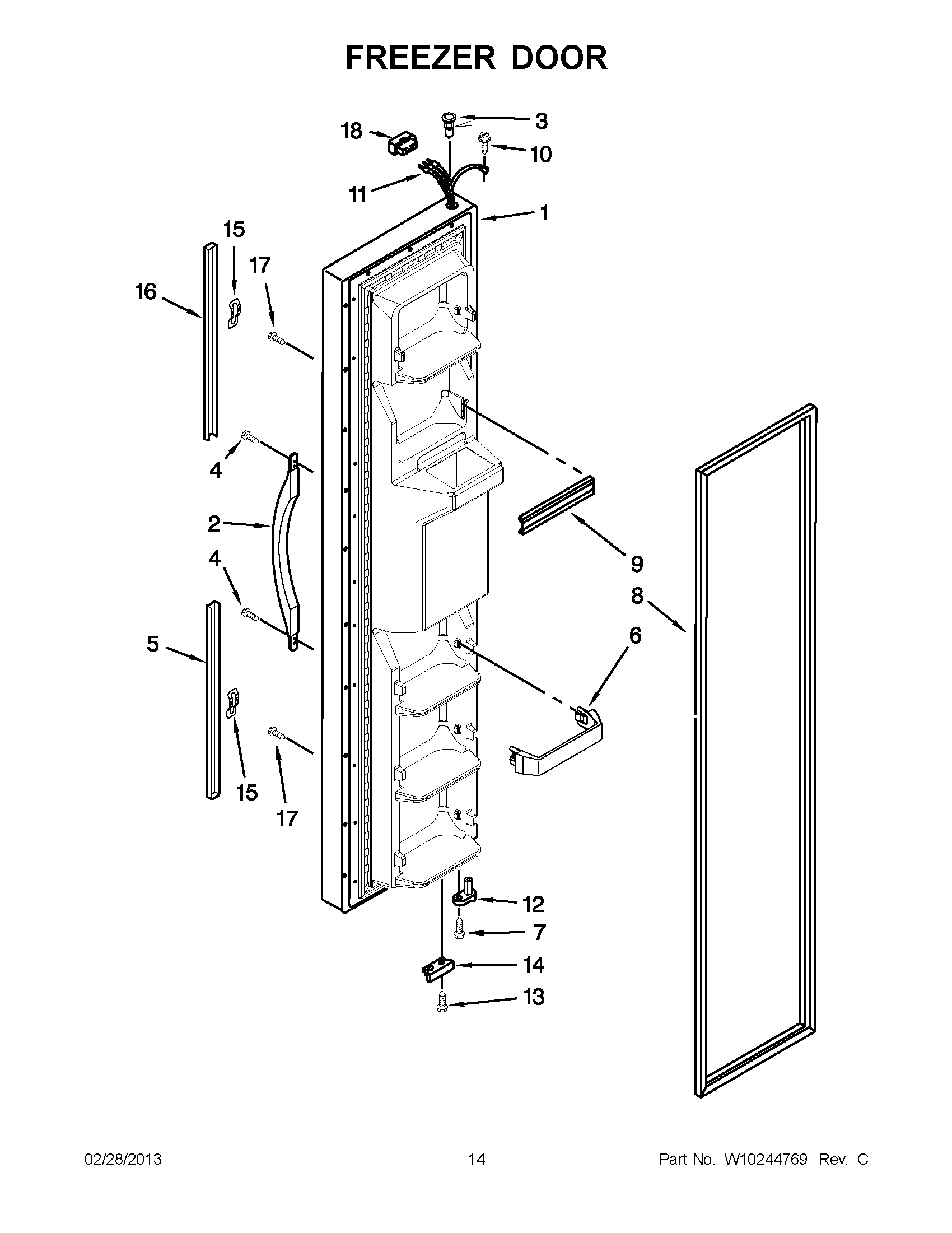

ED2VHEXVB01 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless-VCM)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
2HANDLE (WHITE)
2HANDLE (BLACK)
3WP2182181 Whirlpool Refrigerator Thimble
4WP489491 Whirlpool Refrigerator Screw
5Extension, Bottom (Black)
5Extension, Bottom (White)
6WP2309717 Whirlpool Refrigerator Door Trim
7WP3400012 Whirlpool Refrigerator Screw
82159072 Whirlpool Refrigerator FIP Gasket
82159080 Whirlpool Refrigerator Door Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP3400852 Whirlpool Refrigerator Screw
11WP2154473 Whirlpool Refrigerator Connector
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14W10185566 Whirlpool Bracket
14Bracket, Door Stop (Black)
15WP2195327 Whirlpool Refrigerator Clip
16WP2194706W Whirlpool Refrigerator Extension
16Extension, Top (Black)
