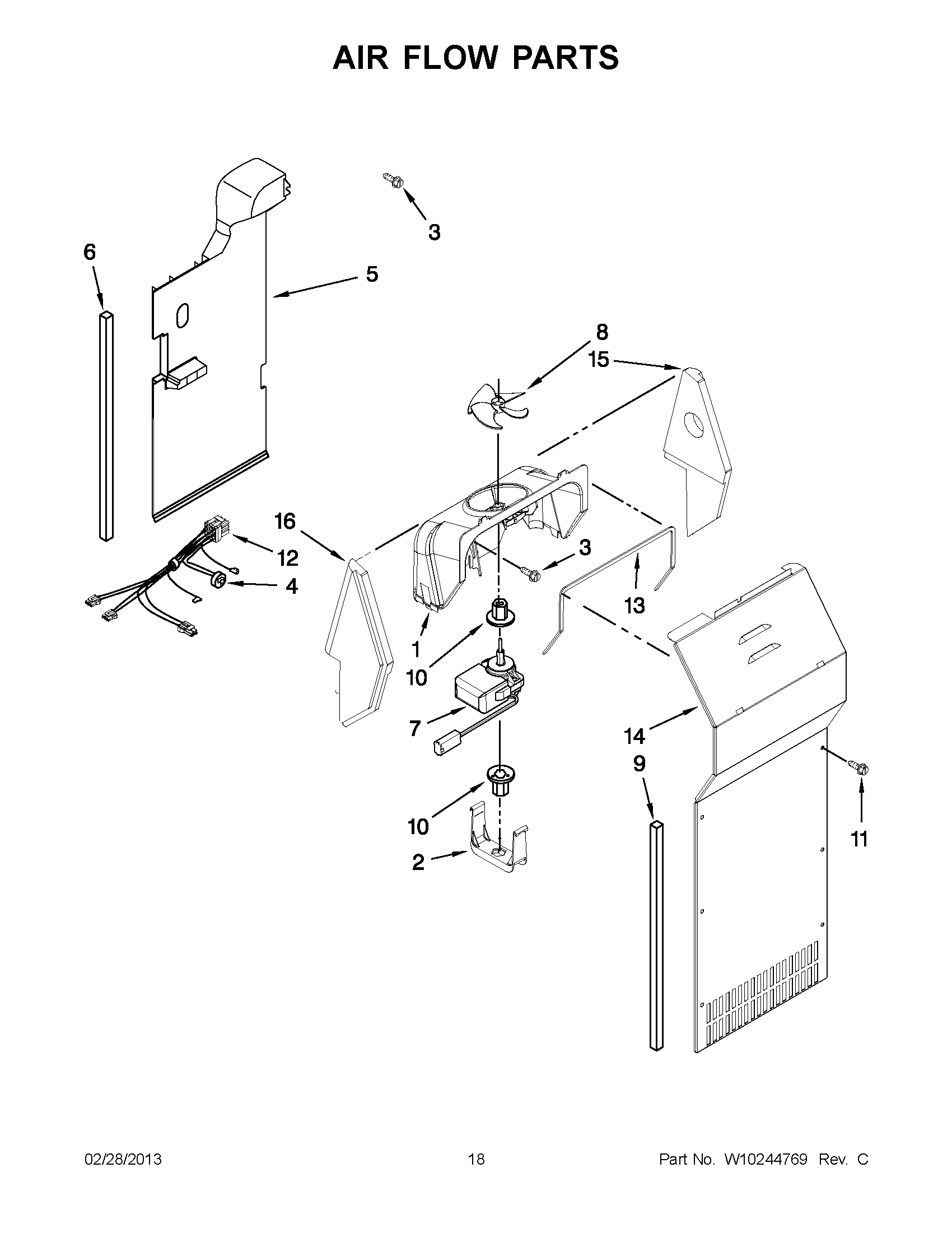

ED2VHEXVB01 09 – AIR FLOW PARTS

Products

Position	Product
1	W11254898 Whirlpool Refrigerator Scroll Fan
2	WP2155590 Whirlpool Refrigerator Retainer
3	WP489478 Whirlpool Refrigerator Screw
4	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5	W10166220 Whirlpool Refrigerator Air Duct
6	4388500 Whirlpool Refrigerator Gasket
7	4389144 Whirlpool Refrigerator Evaporator Fan Motor
9	WP2304241 Whirlpool Refrigerator Gasket
10	WP2169142 Whirlpool Fan Blade
11	4389654 Whirlpool Screw
12	W11084324 Whirlpool Refrigerator Wire Harness
13	WP2155789 Whirlpool Refrigerator Gasket
14	4388357 Whirlpool Refrigerator Evaporator Cover
15	4388358 Whirlpool Refrigerator Support Bracket
