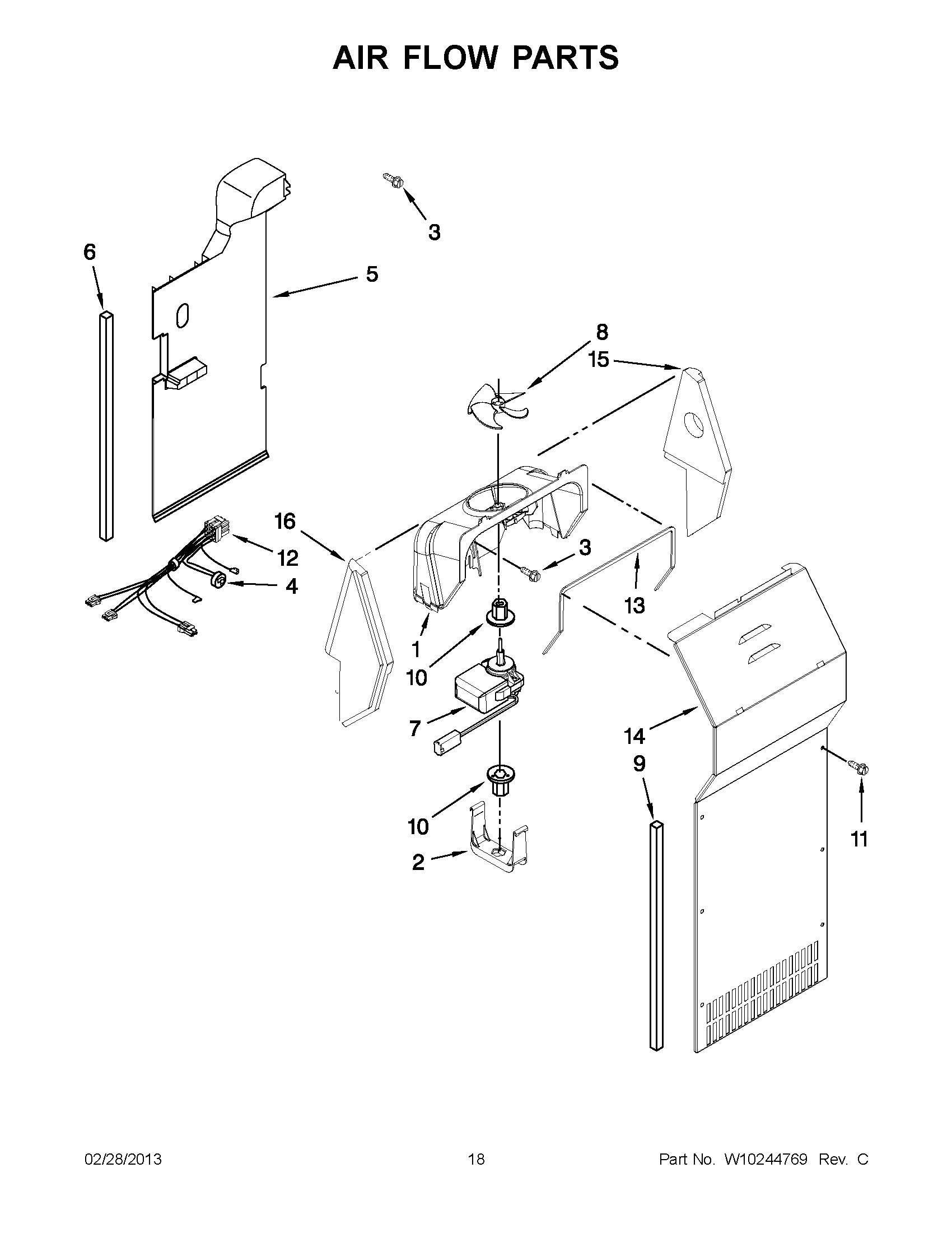

ED2VHEXVQ01 09 – AIR FLOW PARTS

ED2VHEXVQ01 09 – AIR FLOW PARTS

Written by

in

ED2VHEXVQ01 09 – AIR FLOW PARTS

Products

PositionProduct
1W11254898 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3WP489478 Whirlpool Refrigerator Screw
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5W10166220 Whirlpool Refrigerator Air Duct
64388500 Whirlpool Refrigerator Gasket
74389144 Whirlpool Refrigerator Evaporator Fan Motor
9WP2304241 Whirlpool Refrigerator Gasket
10WP2169142 Whirlpool Fan Blade
114389654 Whirlpool Screw
12W11084324 Whirlpool Refrigerator Wire Harness
13WP2155789 Whirlpool Refrigerator Gasket
144388357 Whirlpool Refrigerator Evaporator Cover
154388358 Whirlpool Refrigerator Support Bracket
