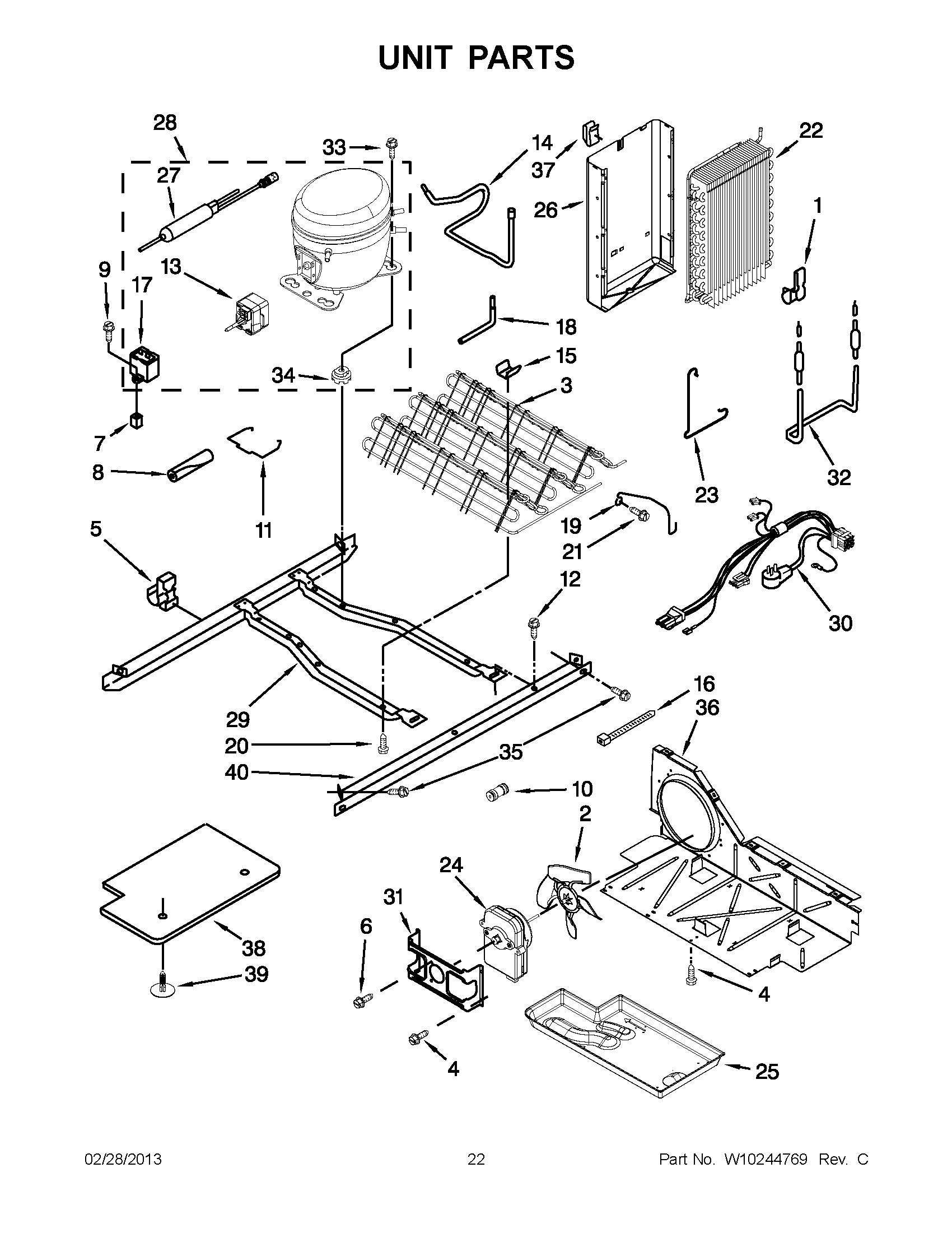

ED2VHEXVQ01 11 – UNIT PARTS

ED2VHEXVQ01 11 – UNIT PARTS

Written by

in

ED2VHEXVQ01 11 – UNIT PARTS

Products

Position	Product
NI	WP978025 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	W11623163 Whirlpool Refrigerator Clip
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	Screw Grommet
8	SLEEVE
9	W11693756 Whirlpool Screw Assembly
10	WPW10334458 Whirlpool Refrigerator Connector
11	2212996 Whirlpool Refrigerator Retainer
12	WP489427 Whirlpool Refrigerator Screw
13	WP2188831 Whirlpool Refrigerator Start Device
14	2220642 Whirlpool Refrigerator Tube
15	W10683556 Whirlpool Refrigerator Clip
16	WPW10339879 Whirlpool Wire Tie
17	WP65889-4 Whirlpool Refrigerator Capacitor
18	W10858105 Whirlpool Refrigerator Tube
19	Guard, Fan
20	W11544659 Whirlpool Refrigerator Screw
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clamp
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	WPW10194474 Whirlpool Refrigerator Shield
27	WPW10143759 Whirlpool Dryer Filter
28	W10355489 Whirlpool Refrigerator Compressor
29	2304903 Whirlpool Refrigerator Frame
30	WPW10309395 Whirlpool Refrigerator Wire Harness
31	WP2181929 Whirlpool Refrigerator Bracket
32	WP2323197 Whirlpool Refrigerator Heater
34	876811 Whirlpool Grommet
35	489340 Whirlpool Refrigerator Screw
36	BAFFLE, AIR
37	Clip, Heat Shield
38	UNIT COVER, BOTTOM
39	489396 Whirlpool Refrigerator Clip
40	WPW10196323 Whirlpool Refrigerator Rail Assembly
