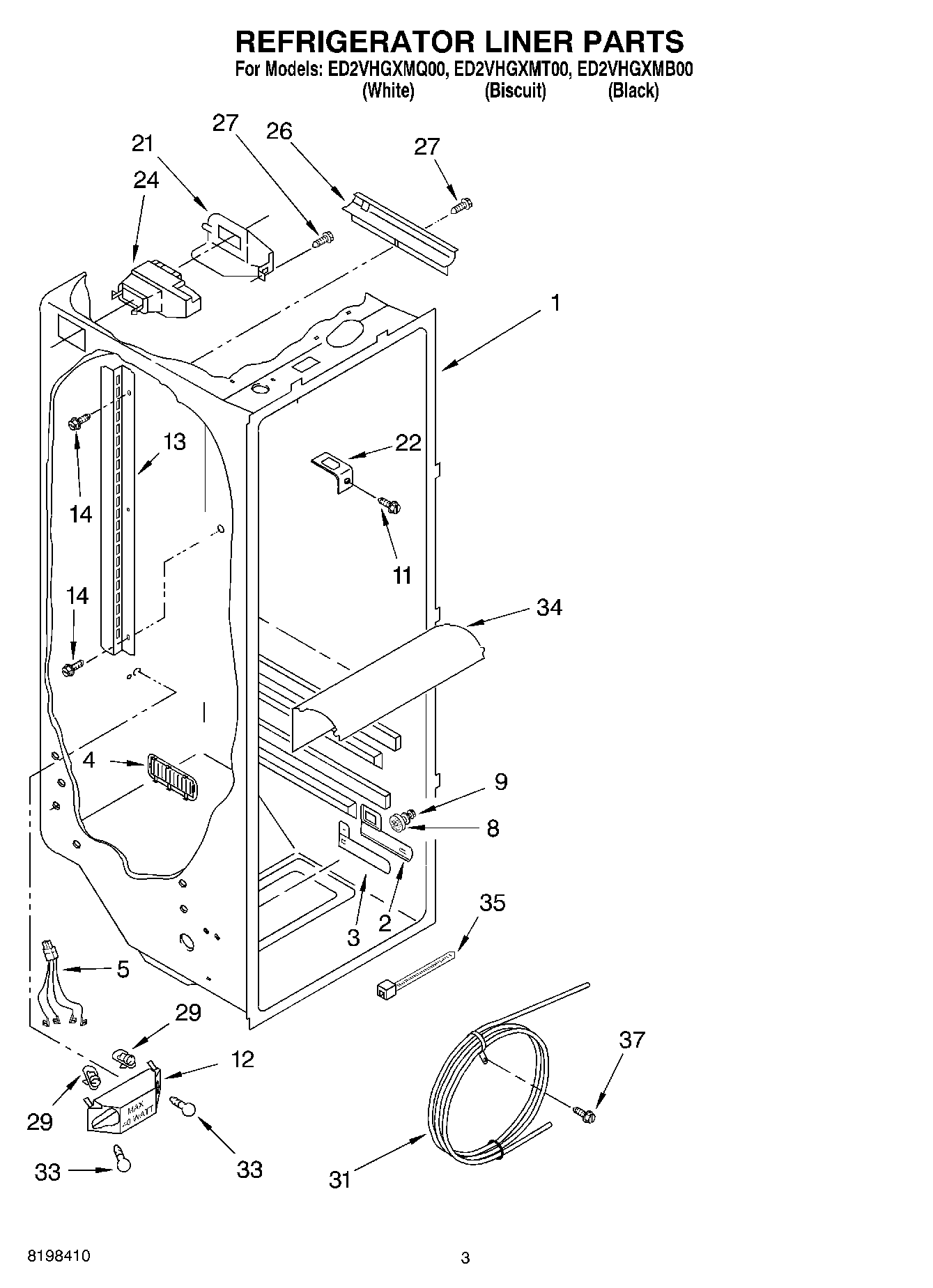

ED2VHGXMT00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	2311637 Whirlpool Refrigerator Wire Harness
8	W11223328 Whirlpool Refrigerator Shelf Stud
9	WP3-24004-109 Whirlpool Refrigerator Screw
11	WP488488 Whirlpool Refrigerator Screw
12	Bracket, Dual Crisper Light
13	Shelf Ladder
14	WP488729 Whirlpool Refrigerator Door Screw
21	2152019 Whirlpool Refrigerator Cover
22	WP2256085 Whirlpool Refrigerator Retainer
24	WPW10151374 Whirlpool Refrigerator Diffuser
26	2150331 Whirlpool Refrigerator Wire Cover
27	W10759522 Whirlpool Screw
29	4387478 Whirlpool Refrigerator Light Socket
31	WP2256126 Whirlpool Refrigerator Reservoir
33	RANGE ONLY 40W 120V APPL BULB
34	Light Lens
35	WPW10339879 Whirlpool Wire Tie
37	Screw (2)
