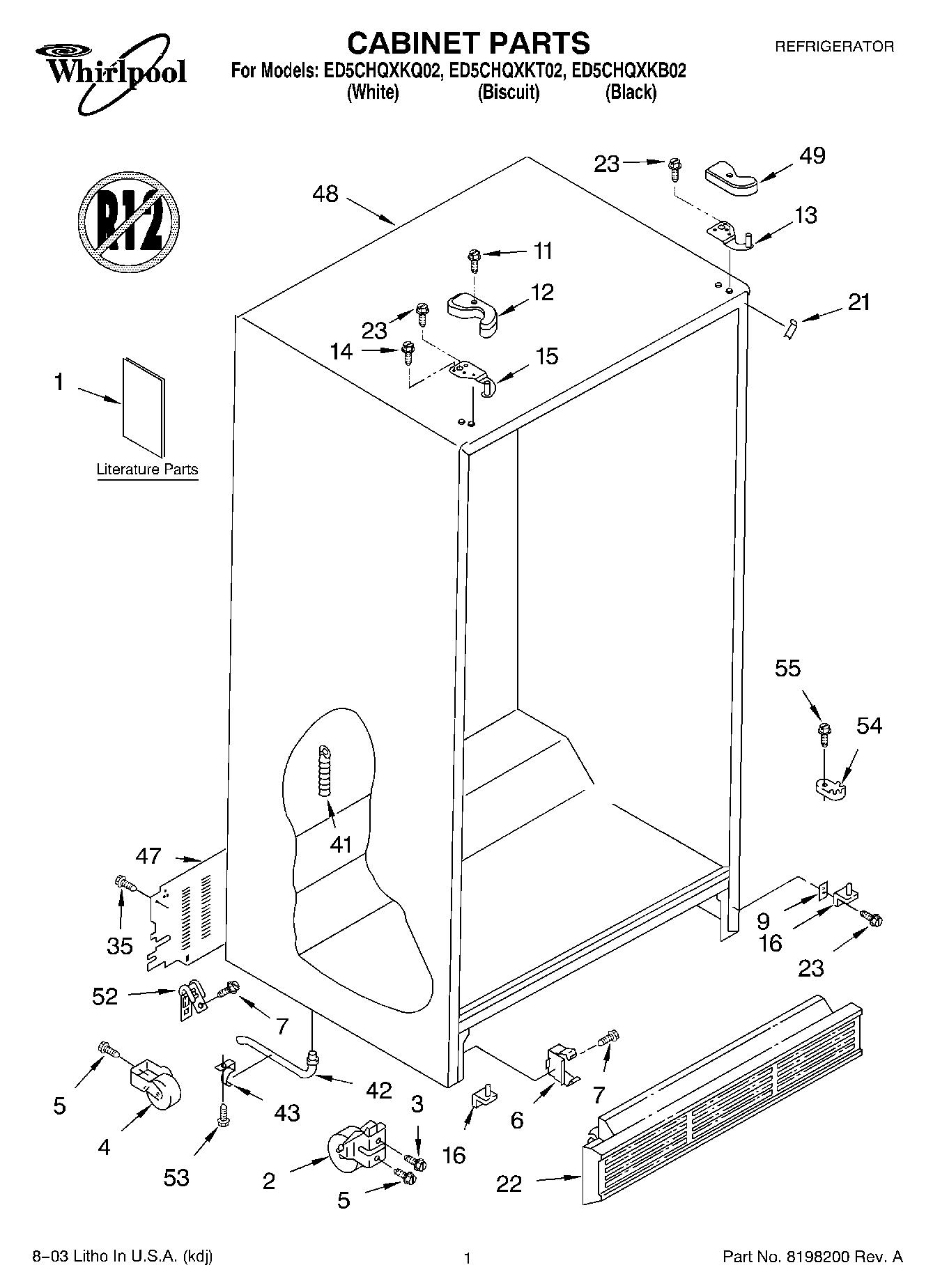

ED5CHQXKB02 01 – CABINET PARTSadmin2025-04-26T11:06:56+00:00ED5CHQXKB02 01 – CABINET PARTS ProductsPositionProduct1Literature Parts (Energy Label)1LITERATURE PARTS (Service & Wiring Sheet)1LITERATURE PARTS (Use & Care Guide)1Modular Icemaker Service Sheet2Front Roller (2)3W10850698 Whirlpool Refrigerator Screw4WPW10250570 Whirlpool Refrigerator Cabinet Roller5WP489427 Whirlpool Refrigerator Screw6WP2155013 Whirlpool Refrigerator Clip7WP489478 Whirlpool Refrigerator Screw9WP2181911 Whirlpool Refrigerator Shim11WP8281227 Whirlpool Screw12WP2203770 Whirlpool Refrigerator Door Hinge13WP2203771 Whirlpool Refrigerator Door Hinge14WP489128 Whirlpool Refrigerator Screw15WP2203407W Whirlpool Refrigerator Cover15WP2203407B Whirlpool Refrigerator Cover152203407T Whirlpool Refrigerator Cover168201707 Whirlpool Door Hinge21Filler, Wrapper (Black)21Filler, Wrapper (White)21Filler, Wrapper (Biscuit)22WPW10283946 Whirlpool Refrigerator Grille22W10283947 Whirlpool Grille Assembly23WP489497 Whirlpool Screw35WP489464 Whirlpool Refrigerator Screw41W11566763 Whirlpool Fitting42WP1108438 Whirlpool Refrigerator Extension43WP1108439 Whirlpool Refrigerator Clip47WP2188755 Whirlpool Rear Panel48Cabinet (Not A Serviceable Part)49WP2203408W Whirlpool Refrigerator Cover49WP2203408B Whirlpool Refrigerator Cover49Hinge Cover (Biscuit)52549193 Whirlpool Refrigerator Power Clamp54WPW10329686 Whirlpool Door Cam Black55WP489483 Whirlpool Screw
