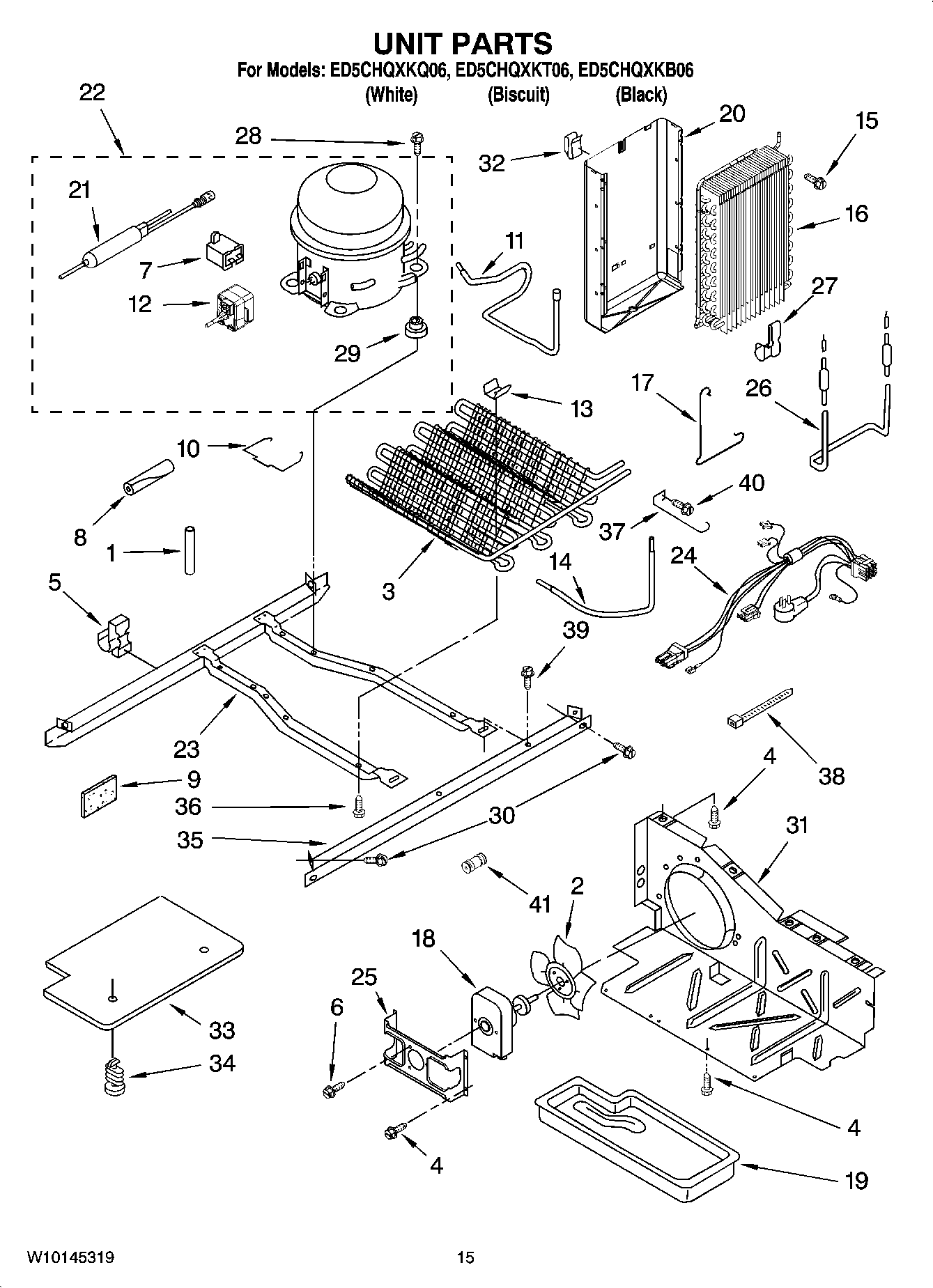

ED5CHQXKB06 09 – UNIT PARTSadmin2025-04-26T11:08:10+00:00ED5CHQXKB06 09 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | Bushing, Compressor |
| 2 | W11458267 Whirlpool Refrigerator Fan Blade |
| 3 | 2324712 Whirlpool Refrigerator Condenser |
| 4 | WP489464 Whirlpool Refrigerator Screw |
| 5 | Clip, Wire & Tube |
| 6 | WP8533993 Whirlpool Refrigerator Screw |
| 7 | WP65889-4 Whirlpool Refrigerator Capacitor |
| 8 | SLEEVE |
| 9 | W11553819 Whirlpool Refrigerator Insulation |
| 10 | 2212996 Whirlpool Refrigerator Retainer |
| 11 | 2313230 Whirlpool Tube |
| 12 | WP2313162 Whirlpool Refrigerator Start Device |
| 13 | W10683556 Whirlpool Refrigerator Clip |
| 14 | 2261599 Whirlpool Refrigerator Tube |
| 15 | WP489478 Whirlpool Refrigerator Screw |
| 16 | WP2188823 Whirlpool Refrigerator Evaporator |
| 17 | Clamp |
| 18 | W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade |
| 19 | WPW10614158 Whirlpool Refrigerator Evaporator Tray |
| 20 | Heat Shield |
| 21 | W10843121 Whirlpool Refrigerator Tube |
| 21 | WPW10143759 Whirlpool Dryer Filter |
| 22 | Compressor (Includes Items 11,12,13,14,15, 29 & 32) (Also Order 482801 Installation Kit & 876765 Tube Kit) |
| 23 | 2304904 Whirlpool Frame Assembly |
| 24 | Unit, Harness |
| 25 | WP2181929 Whirlpool Refrigerator Bracket |
| 26 | WP2323198 Whirlpool Refrigerator Heater |
| 27 | W11623163 Whirlpool Refrigerator Clip |
| 28 | SCREW |
| 29 | 876811 Whirlpool Grommet |
| 29 | WP4387558 Whirlpool Refrigerator Compressor Grommet |
| 30 | 489340 Whirlpool Refrigerator Screw |
| 31 | W10896764 Whirlpool Refrigerator Air Baffle |
| 32 | Clip, Heat Shield |
| 33 | Unit Cover, Bottom |
| 34 | 489396 Whirlpool Refrigerator Clip |
| 35 | 2305374 Whirlpool Refrigerator Unit Rail |
| 36 | W11544659 Whirlpool Refrigerator Screw |
| 37 | Guard, Fan |
| 38 | WPW10339879 Whirlpool Wire Tie |
| 39 | WP489427 Whirlpool Refrigerator Screw |
| 40 | WPW10141625 Whirlpool Refrigerator Screw Assembly |
| 41 | Following Parts Not Illustrated and Optional Parts Not Included |
| 41 | VALVE, ACCESS (5/8``) |
| 41 | 978026 Whirlpool Refrigerator Primary Valve |
| 41 | WPW10334458 Whirlpool Refrigerator Connector |
| 41 | 978027 Whirlpool Refrigerator Primary Valve |
| 41 | 978030 Whirlpool Refrigerator Valve |
| 41 | WP978025 Whirlpool Refrigerator Valve |
| 41 | VALVE, ACCESS (1/2``) |
| 41 | 876764 Whirlpool Refrigerator Primary Valve |
| 41 | REFRIGERANT CHARGE 5.0 oz. (R-134A) |
