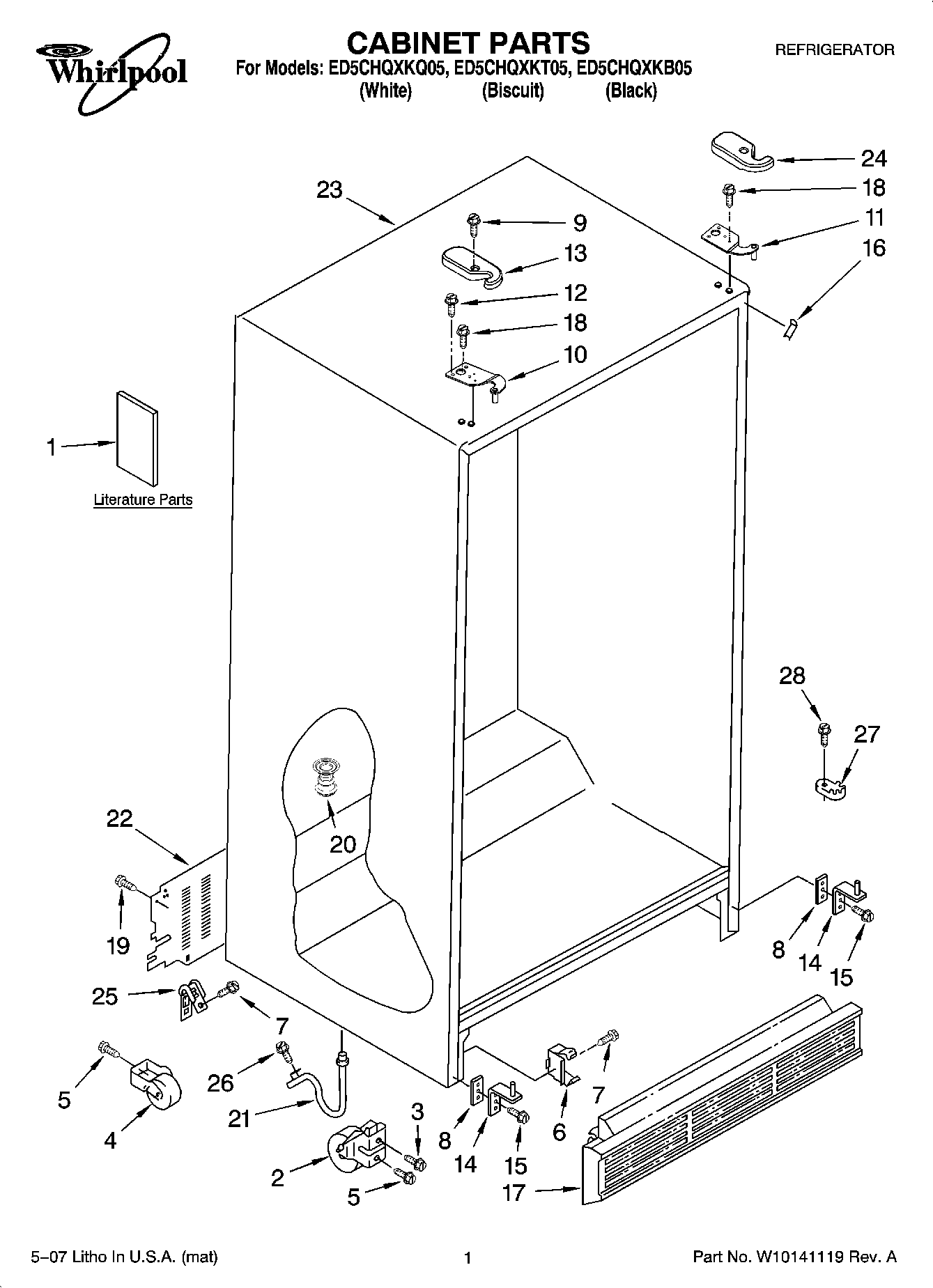

ED5CHQXKQ05 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Use & Care Guide
1	Service & Wiring Sheet
1	Modular Icemaker Service Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	WP8281227 Whirlpool Screw
10	WP2203770 Whirlpool Refrigerator Door Hinge
11	WP2203771 Whirlpool Refrigerator Door Hinge
12	WP489128 Whirlpool Refrigerator Screw
13	WP2203407W Whirlpool Refrigerator Cover
13	WP2203407B Whirlpool Refrigerator Cover
13	2203407T Whirlpool Refrigerator Cover
14	8201707 Whirlpool Door Hinge
15	WP489497 Whirlpool Screw
16	Filler, Wrapper (White)
16	Filler, Wrapper (Black)
16	Filler, Wrapper (Biscuit)
17	W10283947 Whirlpool Grille Assembly
17	WPW10283946 Whirlpool Refrigerator Grille
19	WP489464 Whirlpool Refrigerator Screw
20	W11566763 Whirlpool Fitting
21	Extension Tube
22	WP2188755 Whirlpool Rear Panel
23	Cabinet, (Not A Serviceable Part)
24	Hinge Cover (Biscuit)
24	WP2203408W Whirlpool Refrigerator Cover
24	WP2203408B Whirlpool Refrigerator Cover
25	549193 Whirlpool Refrigerator Power Clamp
27	WPW10329686 Whirlpool Door Cam Black
28	WP489483 Whirlpool Screw
