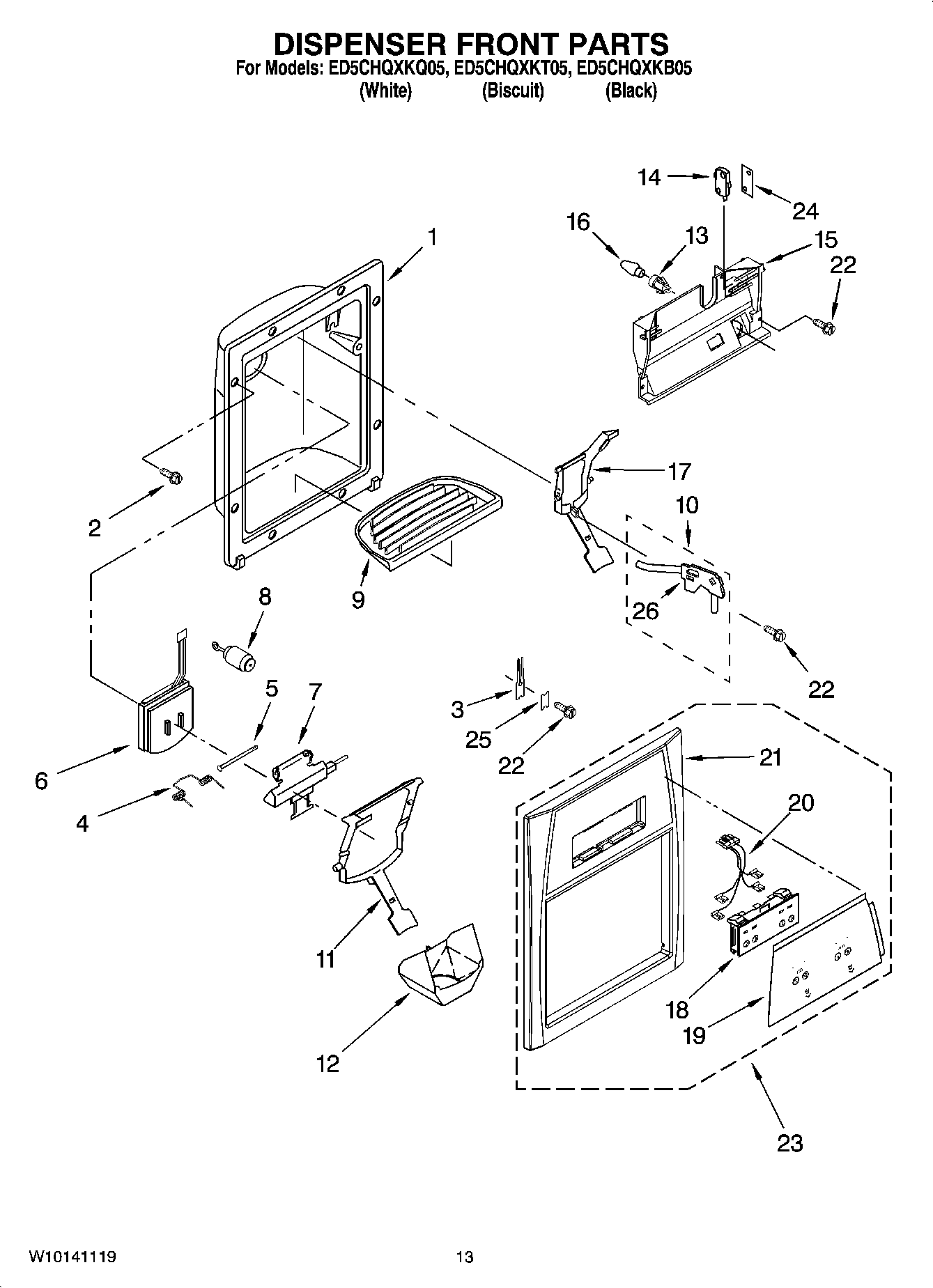

ED5CHQXKQ05 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1Housing Dispenser (Not Serviced)
2WP3196557 Whirlpool Screw
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8Delay Mechanism
9WP2206670B Whirlpool Dispenser Tray
9WP2206670W Whirlpool Dispenser Tray
9WP2206670T Whirlpool Refrigerator Grille
108201537 Whirlpool Water Tubing Assembly
11Lever, Ice Dispenser (Biscuit)
11WP2255431W Whirlpool Refrigerator Dispenser Arm
11WP2255431B Whirlpool Refrigerator Dispenser Arm
12WP2180224 Whirlpool Dispenser Funnel Guide
132180200 Whirlpool Refrigerator Socket
14WP2162361 Whirlpool Switch
15WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16WP22002263 Whirlpool Dryer 10W Light Bulb
17WP2255432B Whirlpool Refrigerator Dispenser Arm
17WP2255432T Whirlpool Refrigerator Dispenser Arm
17WP2255432W Whirlpool Refrigerator Dispenser Arm
18Switch Assembly (Not Available Order 23)
19Overlay, Front Cover (Not Available, Order 23)
20Wire Assembly
21Front Cover, Housing (Not Available Order 23)
22WP3400906 Whirlpool Refrigerator Screw
23Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Black)
23Front Cover Assembly (Includes Items 18, 19, 20 & 21) (White)
232311690T Whirlpool Front Cover
24Spacer, Switch (2)
25WP2195051 Whirlpool Refrigerator Clip
26WP2304673 Whirlpool Refrigerator Bracket
