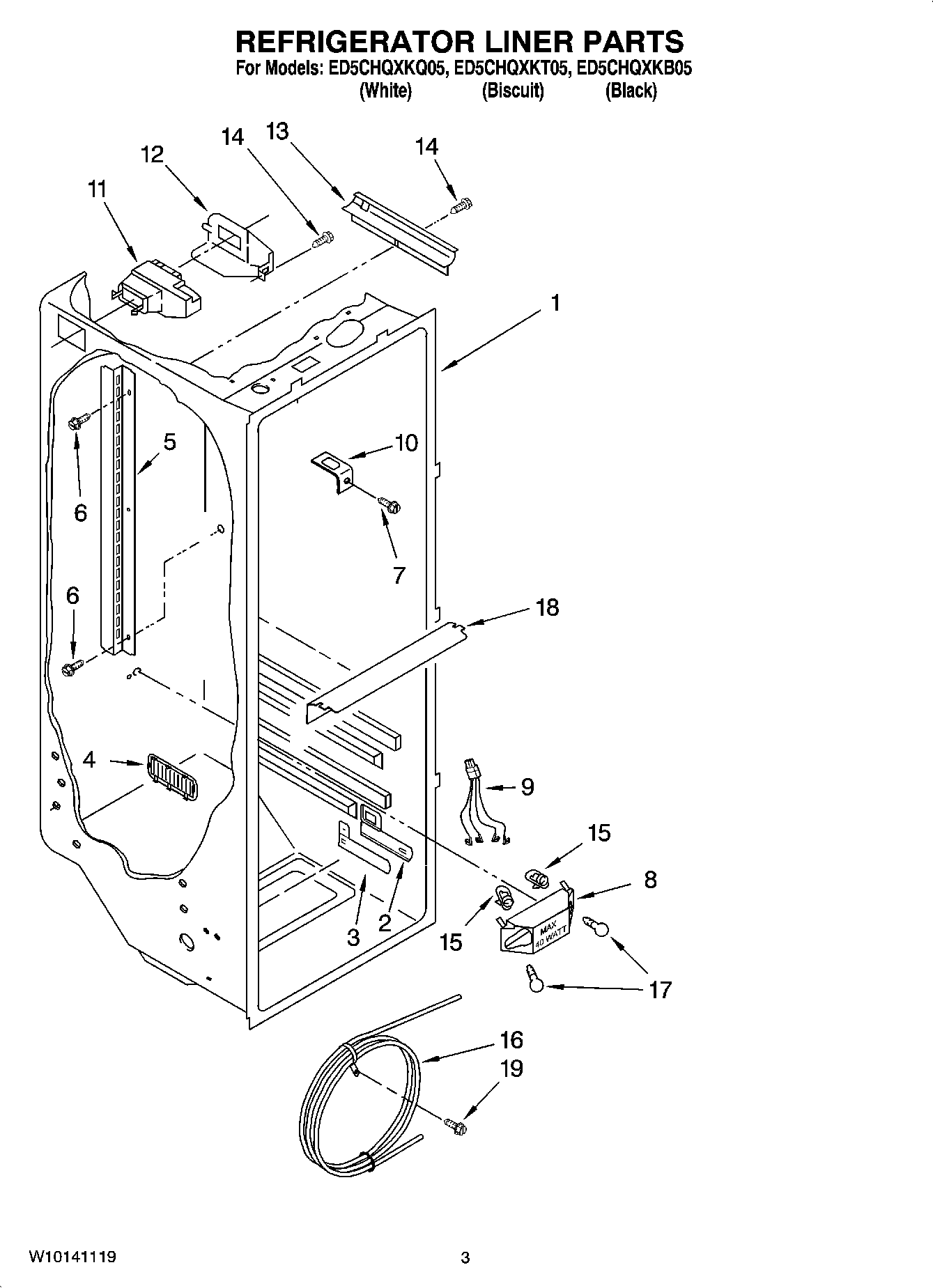

ED5CHQXKT05 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	Shelf Ladder
6	WP489478 Whirlpool Refrigerator Screw
7	WP488488 Whirlpool Refrigerator Screw
8	Bracket, Dual Crisper Light
9	2311637 Whirlpool Refrigerator Wire Harness
10	WP2256085 Whirlpool Refrigerator Retainer
11	WPW10151374 Whirlpool Refrigerator Diffuser
12	2152019 Whirlpool Refrigerator Cover
13	2150331 Whirlpool Refrigerator Wire Cover
14	W10759522 Whirlpool Screw
15	4387478 Whirlpool Refrigerator Light Socket
16	WP2256126 Whirlpool Refrigerator Reservoir
17	RANGE ONLY 40W 120V APPL BULB
18	Light Lens
19	Screw (2)
