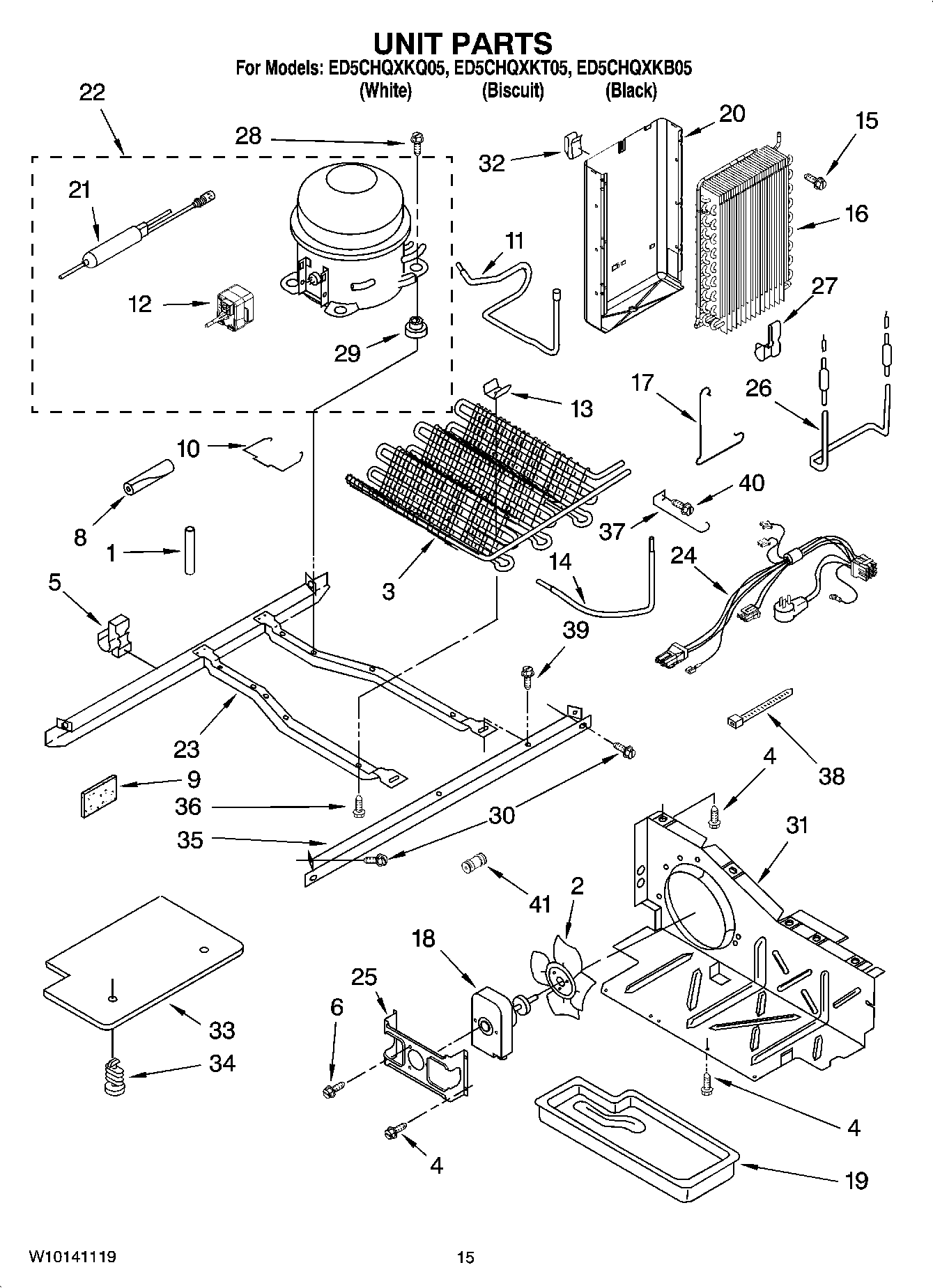

ED5CHQXKT05 09 – UNIT PARTS

ED5CHQXKT05 09 – UNIT PARTS

Written by

in

ED5CHQXKT05 09 – UNIT PARTS

Products

PositionProduct
1Bushing, Compressor
2W11458267 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5Clip, Wire & Tube
6681390 Whirlpool Refrigerator Screw
8SLEEVE
9W11553819 Whirlpool Refrigerator Insulation
102223313 Whirlpool Clip
11WP2205765 Whirlpool Refrigerator Tube
12WP2304885 Whirlpool Refrigerator Start Device
13W10683556 Whirlpool Refrigerator Clip
142261599 Whirlpool Refrigerator Tube
15WP489478 Whirlpool Refrigerator Screw
16WP2188823 Whirlpool Refrigerator Evaporator
17Clamp
18W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
19WPW10614158 Whirlpool Refrigerator Evaporator Tray
20Heat Shield
21W10843121 Whirlpool Refrigerator Tube
21WPW10143759 Whirlpool Dryer Filter
22W10139460 Whirlpool Refrigerator Compressor
232304904 Whirlpool Frame Assembly
24Unit, Harness
25WP2181929 Whirlpool Refrigerator Bracket
26WP2323198 Whirlpool Refrigerator Heater
27W11623163 Whirlpool Refrigerator Clip
29876811 Whirlpool Grommet
29WP4387558 Whirlpool Refrigerator Compressor Grommet
30489340 Whirlpool Refrigerator Screw
31W10896764 Whirlpool Refrigerator Air Baffle
32Clip, Heat Shield
33Unit Cover, Bottom
34489396 Whirlpool Refrigerator Clip
352305374 Whirlpool Refrigerator Unit Rail
36W11544659 Whirlpool Refrigerator Screw
37Guard, Fan
38WPW10339879 Whirlpool Wire Tie
39WP489427 Whirlpool Refrigerator Screw
40WPW10141625 Whirlpool Refrigerator Screw Assembly
41and Optional Parts Not Included
41Following Parts Not Illustrated
41876764 Whirlpool Refrigerator Primary Valve
41VALVE, ACCESS (1/2“)
41WP978025 Whirlpool Refrigerator Valve
41WP4373559 Whirlpool Fitting
41VALVE, ACCESS (5/8“)
41978030 Whirlpool Refrigerator Valve
41978027 Whirlpool Refrigerator Primary Valve
41978026 Whirlpool Refrigerator Primary Valve
41REFRIGERANT CHARGE 5.0 oz. (R-134A)
