ED5CHQXKT06 04 – FREEZER LINER PARTS

ED5CHQXKT06 04 – FREEZER LINER PARTS

Written by

in

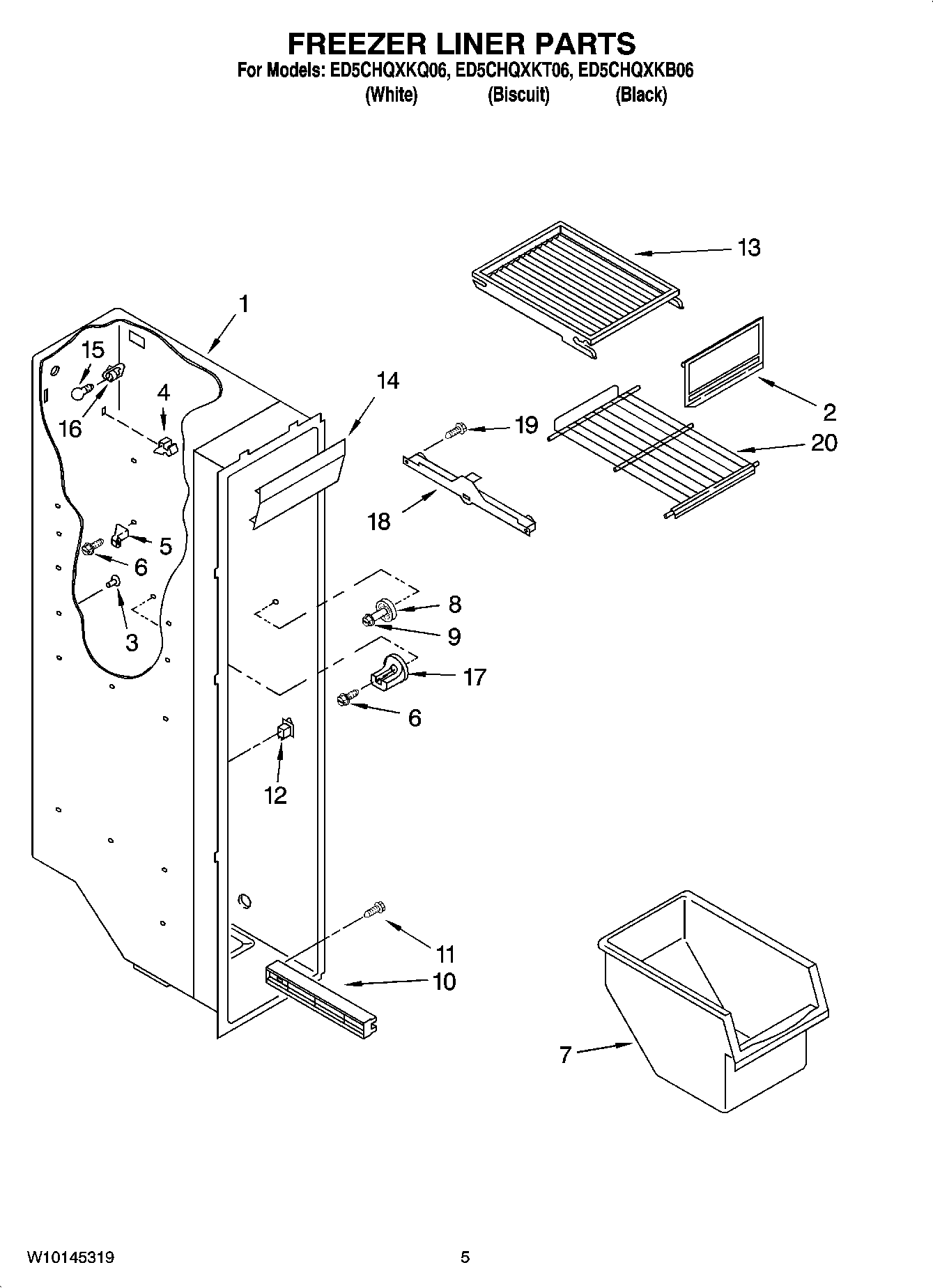

ED5CHQXKT06 04 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
2WP2171713 Whirlpool Refrigerator Ice Door
3Grommet
42215823 Whirlpool Refrigerator Clip
54388405 Whirlpool Refrigerator Shelf Stud
6W10142289 Whirlpool Air Conditioner Screw
7WP2182971 Whirlpool Refrigerator Freezer Bin
8WP2196483 Whirlpool Refrigerator Shelf Stud
9WP3400806 Whirlpool Screw
10Slide, Basket (Left Side)
10WP2261449 Whirlpool Refrigerator Track
11W10759522 Whirlpool Screw
12W11457217 Whirlpool Refrigerator Rocker Switch Combination
13Shelf, Top Compartment
142171705 Whirlpool Refrigerator Light Lens
15RANGE ONLY 40W 120V APPL BULB
164387478 Whirlpool Refrigerator Light Socket
17Stud, Rear
18W10845585 Whirlpool Refrigerator Track
18W10845583 Whirlpool Refrigerator Track
19718257 Whirlpool Dishwasher Screw
20WP2174267 Whirlpool Refrigerator Wire Shelf
20Shelf (2)
