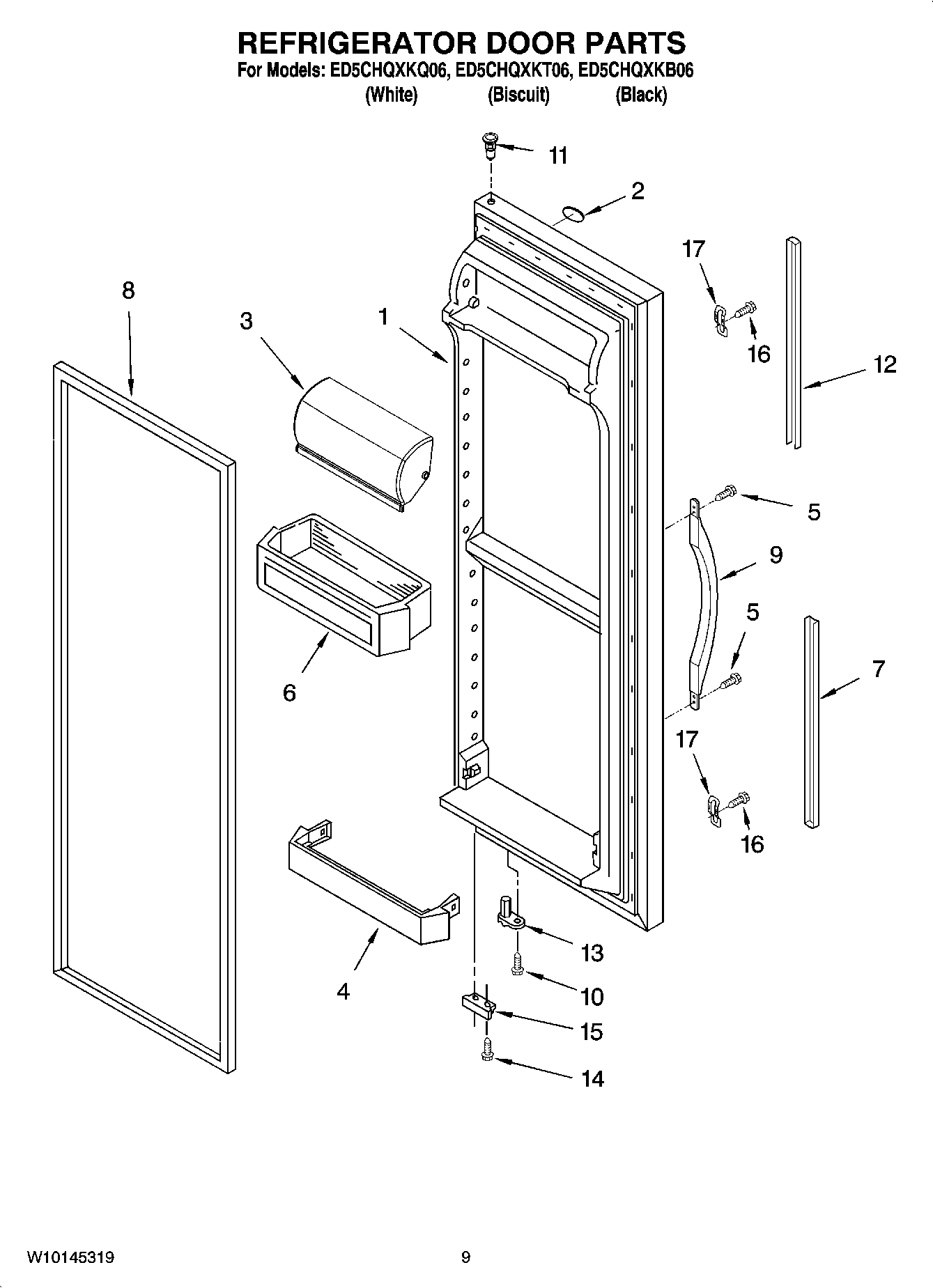

ED5CHQXKT06 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Biscuit)
1	Refrigerator Door (Includes Item 6) (Black)
2	WP2213265 Whirlpool Refrigerator Nameplate
3	WP2256101 Whirlpool Dairy Door
4	WP2156022 Whirlpool Refrigerator Door Trim
5	WP489491 Whirlpool Refrigerator Screw
6	WP2203828 Whirlpool Door Shelf Bin
7	Extension, Bottom (White)
7	Extension, Bottom (Biscuit)
7	WP2194969B Whirlpool Refrigerator Handle Trim
8	2159083 Whirlpool Gasket Door
8	2159075 Whirlpool Door Gasket Seal
9	Handle, Center (Biscuit)
9	WP2186649B Whirlpool Refrigerator Handle
9	Handle, Center (White)
10	WP3400012 Whirlpool Refrigerator Screw
11	WP2182181 Whirlpool Refrigerator Thimble
12	WP2194973W Whirlpool Door Trim
12	Extension, Top (Black)
12	Extension, Top (Biscuit)
13	WP2182179 Whirlpool Cam Closer
14	WP489483 Whirlpool Screw
15	WP2206629B Whirlpool Refrigerator Bracket
16	WP3400852 Whirlpool Refrigerator Screw
17	WP2195327 Whirlpool Refrigerator Clip
