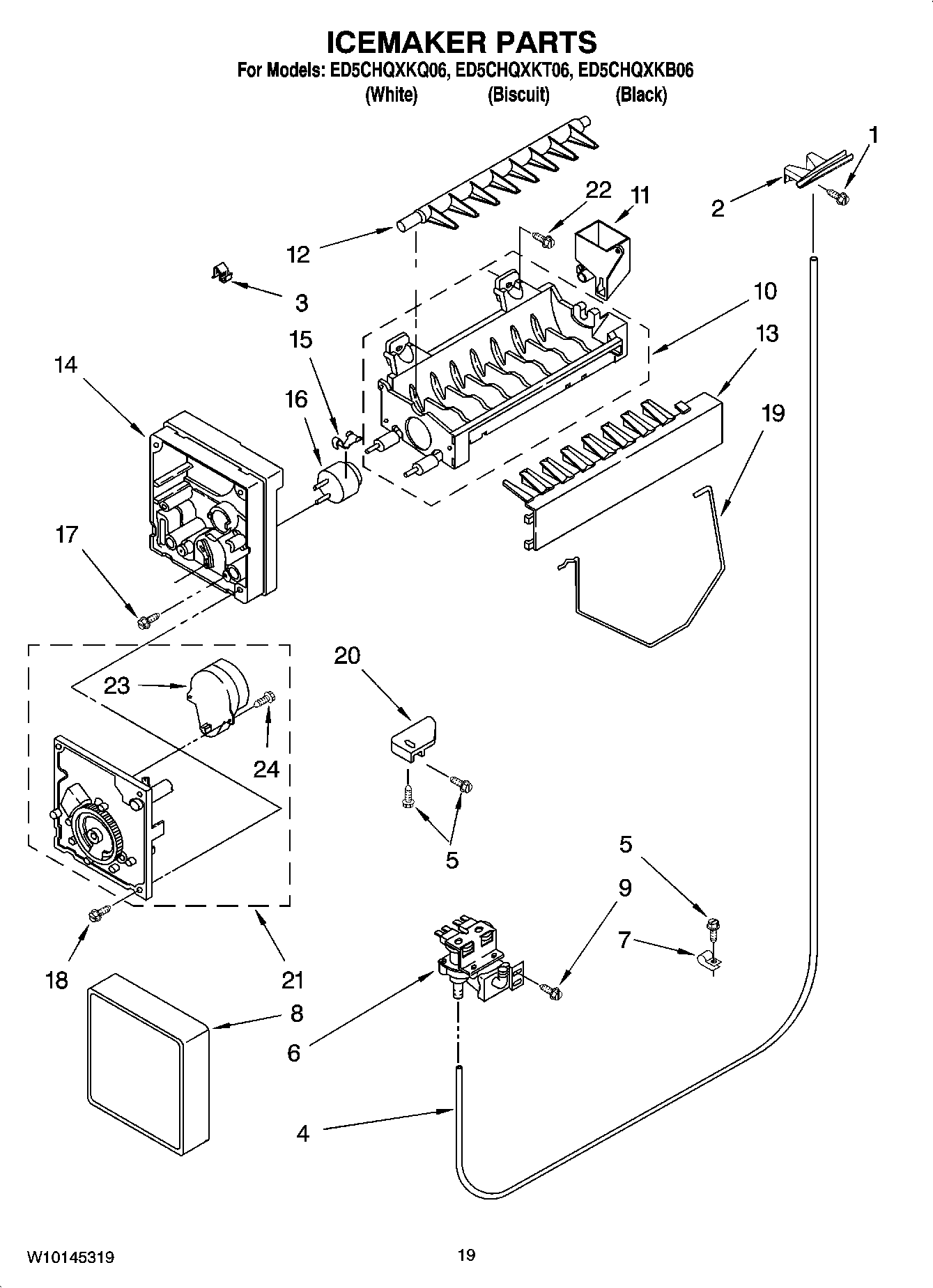

ED5CHQXKT06 12 – ICEMAKER PARTS, OPTIONAL PARTS

ED5CHQXKT06 12 – ICEMAKER PARTS, OPTIONAL PARTS

Written by

in

ED5CHQXKT06 12 – ICEMAKER PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
Enamel, Black (1 Qt. Uncut)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
876370 Whirlpool Refrigerator Insulation
TAPE, VINYL (3/4 X 108“)
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
WPL 799833
WPL 876029
WPL ARI32792A7
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
WPL ARI32791A6
WP503695 Whirlpool Refrigerator Sealer
WPL ARI32796A2
WPL ARI32795A3
WPL ARI32794A6
WPL ARI32793A6
WPW10312300 Whirlpool Refrigerator Ice Container
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
2W11505385 Whirlpool Refrigerator Chute
3WP628379 Whirlpool Refrigerator Clip
4W10823511 Whirlpool Refrigerator Water Tube
5WP489478 Whirlpool Refrigerator Screw
6W10853654 Whirlpool Water Inlet Valve
7WP488366 Whirlpool Refrigerator Clamp
8WPW10289690 Whirlpool Ice Maker Cover
9WPW10141625 Whirlpool Refrigerator Screw Assembly
10WPW10190929 Whirlpool Refrigerator Ice Maker Mold
11W10122561 Whirlpool Refrigerator Cup Fill
12WP627843 Whirlpool Refrigerator Ejector Arm
13WP2182124 Whirlpool Refrigerator Stripper Arm
14WP2195914 Whirlpool Refrigerator Ice Maker Housing
15WP2315522 Whirlpool Refrigerator Clip
16WP627985 Whirlpool Icemaker Cycling Thermostat
178533917 Whirlpool Refrigerator Screw
18WP681249 Whirlpool Screw Assembly
19W11342242 Whirlpool Refrigerator Ice Level Arm
20W11500948 Whirlpool Refrigerator Bracket
22WP488163 Whirlpool Refrigerator Screw
238201515 Whirlpool Refrigerator Motor and Gear Module Kit
24489136 Whirlpool Refrigerator Screw
100WPW10190965 Whirlpool Refrigerator Ice Maker Assembly
