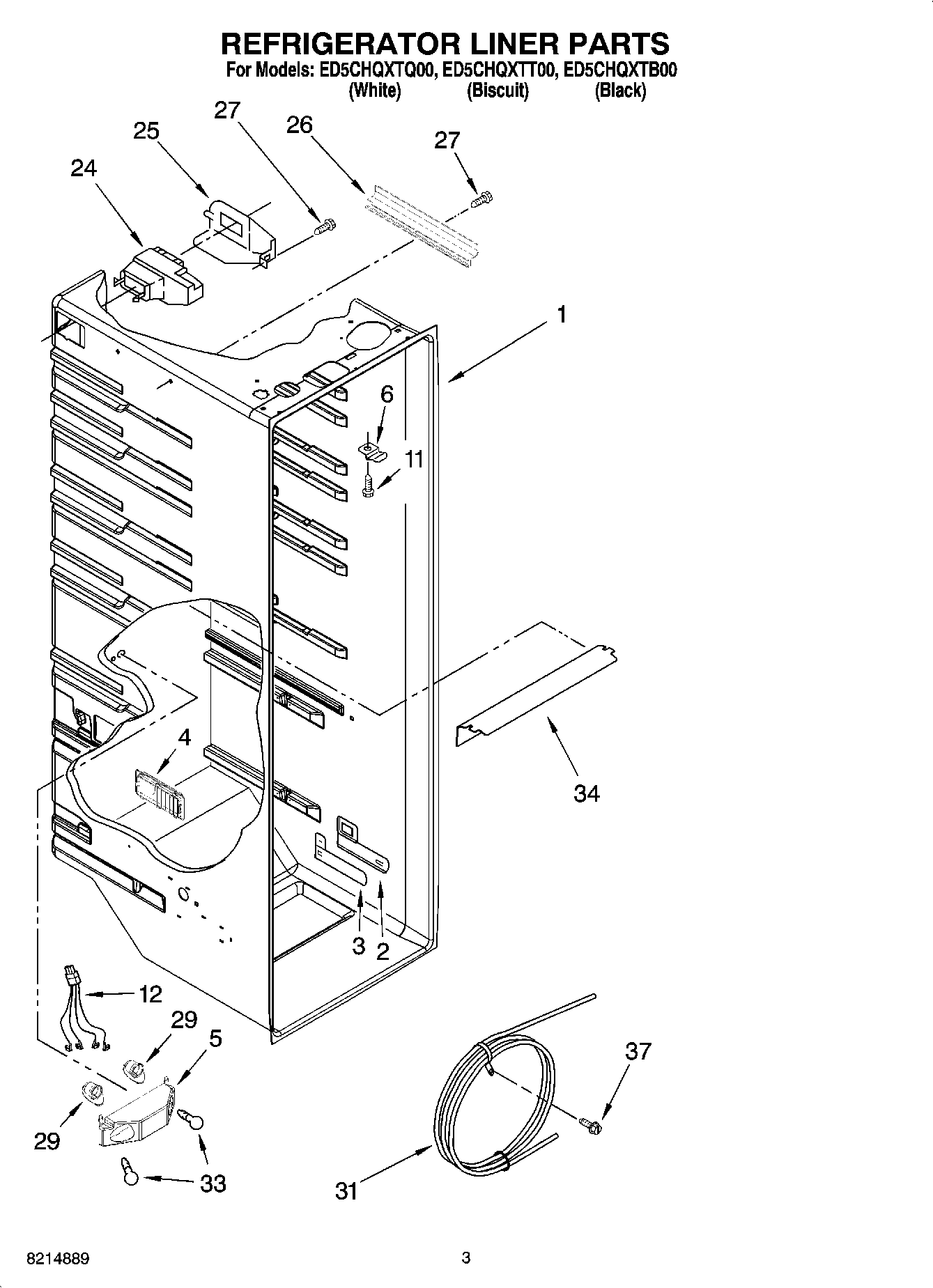

ED5CHQXTB00 02 – REFRIGERATOR LINER PARTS

ED5CHQXTB00 02 – REFRIGERATOR LINER PARTS

Written by

in

ED5CHQXTB00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5Bracket, Dual Crisper Light
62311612 Whirlpool Refrigerator Clip
11WP488488 Whirlpool Refrigerator Screw
122311637 Whirlpool Refrigerator Wire Harness
24WPW10151374 Whirlpool Refrigerator Diffuser
252152019 Whirlpool Refrigerator Cover
262150331 Whirlpool Refrigerator Wire Cover
27W10759522 Whirlpool Screw
294387478 Whirlpool Refrigerator Light Socket
31WP2256126 Whirlpool Refrigerator Reservoir
33RANGE ONLY 40W 120V APPL BULB
34Light Lens
37Screw (2)
