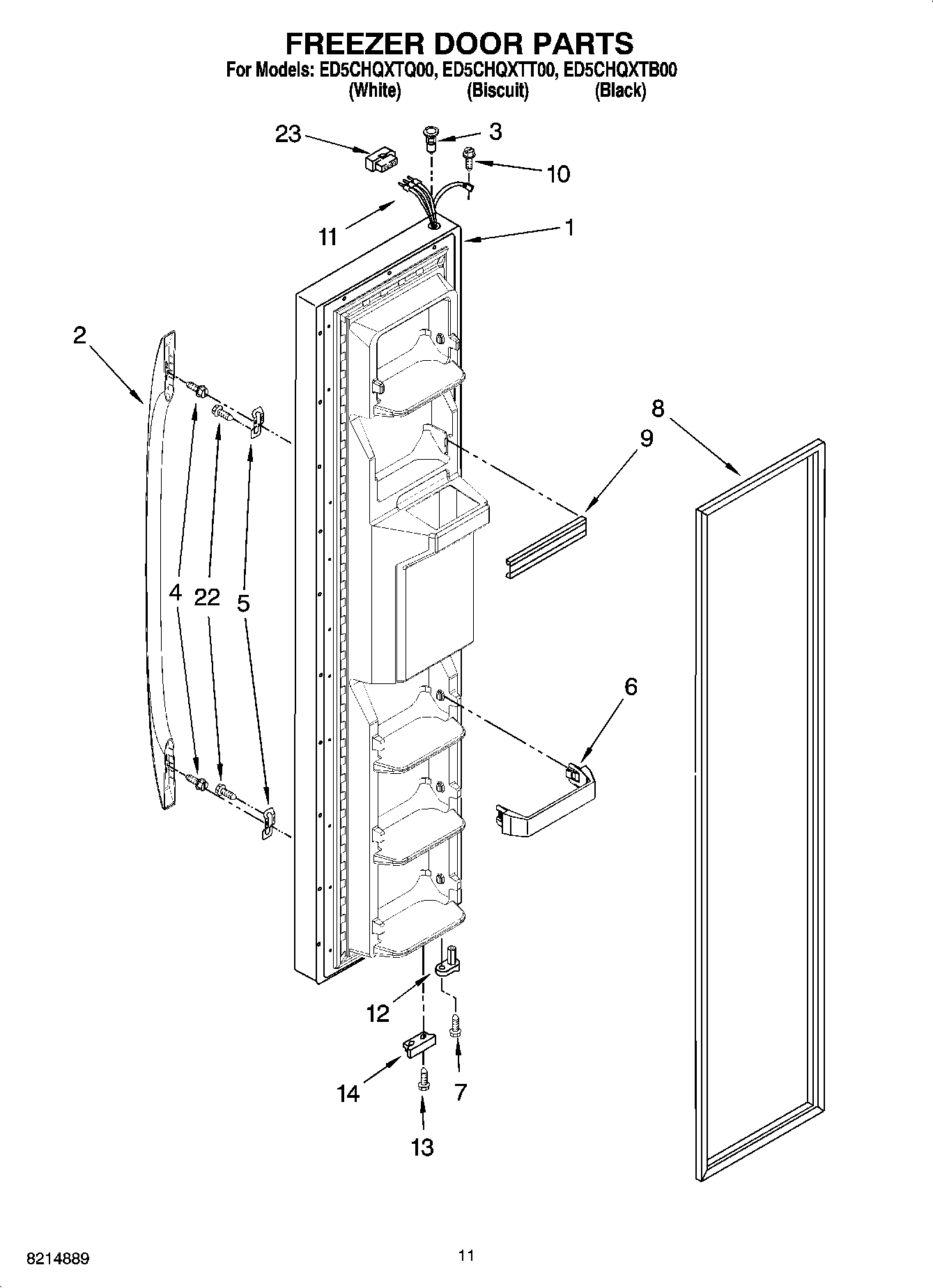

ED5CHQXTT00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
2	W10187086 Whirlpool Refrigerator Handle
2	W10187087 Whirlpool Refrigerator Handle
2	Handle (White)
3	WP2182181 Whirlpool Refrigerator Thimble
4	SCREW
5	WP2255411 Whirlpool Refrigerator Clip
6	WP2309718 Whirlpool Refrigerator Door Trim
7	WP3400012 Whirlpool Refrigerator Screw
8	2159074 Whirlpool Door Gasket Seal
8	2159082 Whirlpool Freezer Door Gasket Black
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP489464 Whirlpool Refrigerator Screw
11	2311641 Whirlpool Refrigerator Wire Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	WP2206629B Whirlpool Refrigerator Bracket
22	WP489491 Whirlpool Refrigerator Screw
23	WP2154473 Whirlpool Refrigerator Connector
