ED5CHQXVB00 09 – UNIT PARTS

ED5CHQXVB00 09 – UNIT PARTS

Written by

in

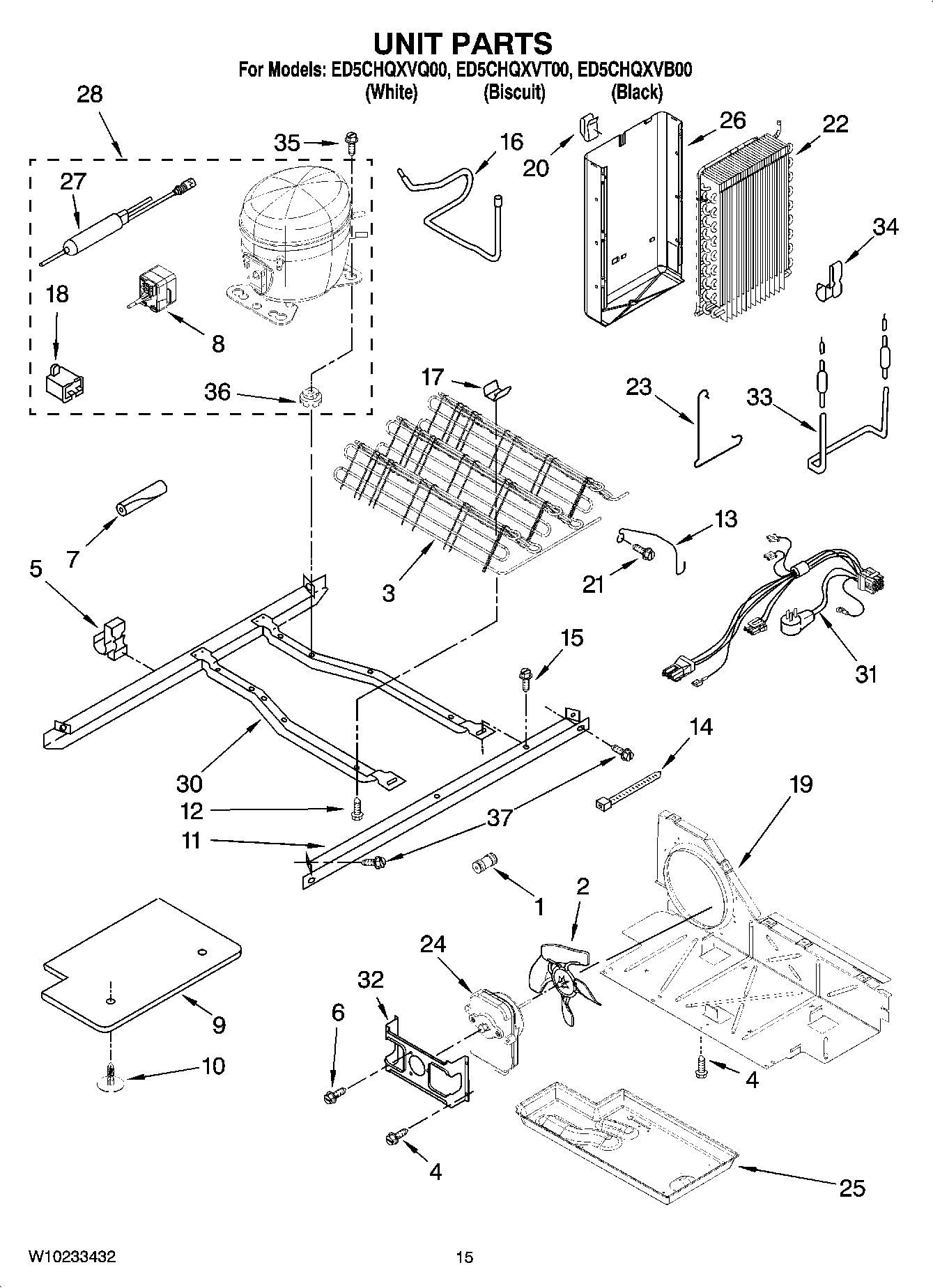

ED5CHQXVB00 09 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (1/2“)
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	REFRIGERANT CHARGE 5.0 oz. (R-134A)
	VALVE, ACCESS (5/8“)
	Following Parts Not Illustrated and Optional Parts Not Included
	WP978025 Whirlpool Refrigerator Valve
1	WPW10334458 Whirlpool Refrigerator Connector
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	SLEEVE
8	WPW10189190 Whirlpool Start Device
8	W10896198 Whirlpool Refrigerator Start Device
9	Unit Cover, Bottom
10	489396 Whirlpool Refrigerator Clip
11	WPW10196323 Whirlpool Refrigerator Rail Assembly
12	W11544659 Whirlpool Refrigerator Screw
13	Guard, Fan
14	WPW10339879 Whirlpool Wire Tie
15	WP489427 Whirlpool Refrigerator Screw
16	W10274306 Whirlpool Refrigerator Tube
17	W10683556 Whirlpool Refrigerator Clip
18	WPW10662129 Whirlpool Refrigerator Run Capacitor
19	Air Baffle
20	Clip, Heat Shield
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188823 Whirlpool Refrigerator Evaporator
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Heat Shield
27	WPW10143759 Whirlpool Dryer Filter
28	W10233961 Whirlpool Refrigerator Compressor
30	W10196321 Whirlpool Refrigerator Frame
31	WPW10309395 Whirlpool Refrigerator Wire Harness
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323198 Whirlpool Refrigerator Heater
34	Clamp
36	876811 Whirlpool Grommet
37	489340 Whirlpool Refrigerator Screw
