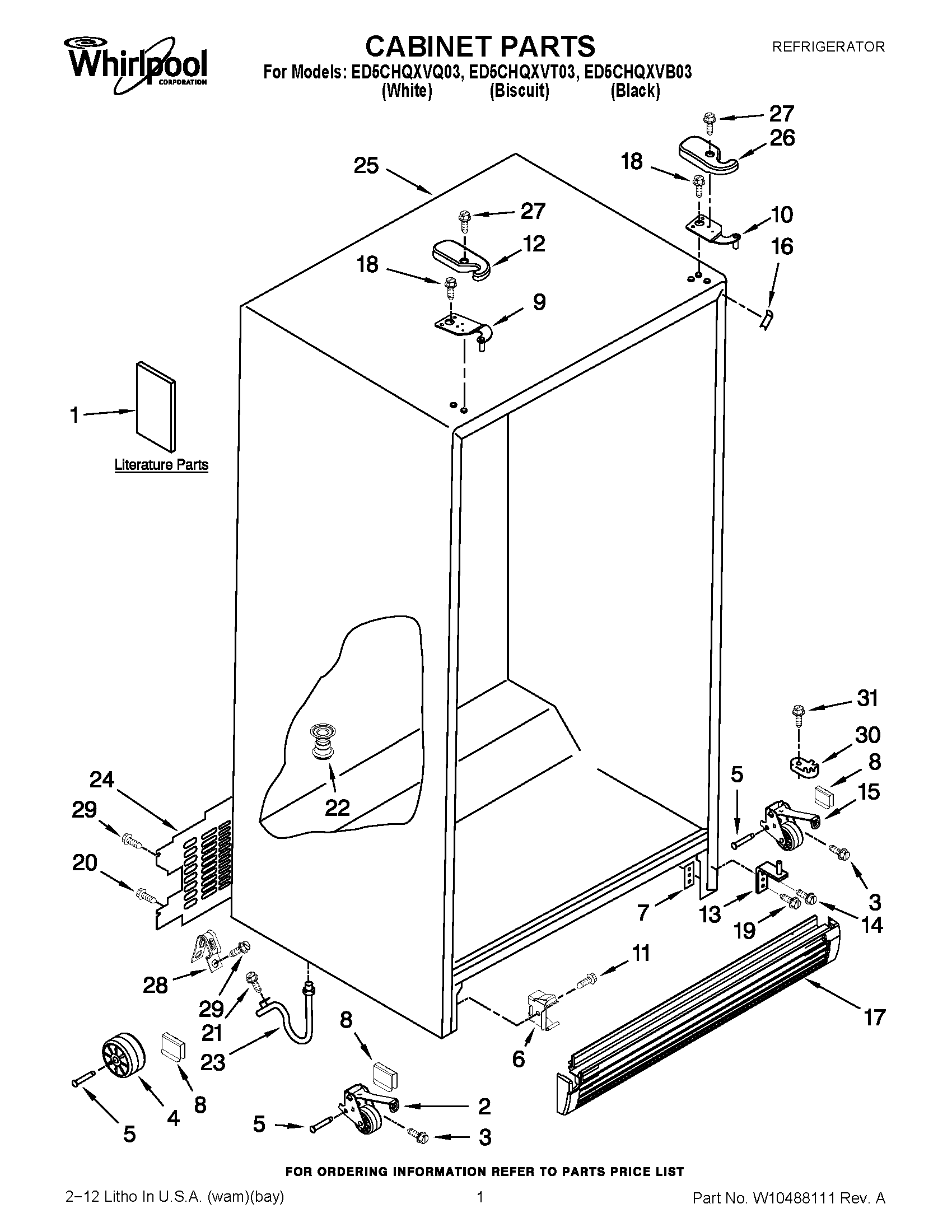

ED5CHQXVB03 01 – CABINET PARTS

Products

Position	Product
1	Energy Label
1	Service & Wiring Sheet
1	USE & CARE GUIDE
1	Modular Icemaker Service Sheet
1	INSTRUCTION SHEET, DOOR REMOVAL
2	WPW10304660 Whirlpool Wheel Assembly
3	W10803534 Whirlpool Screw
4	WPW10475495 Whirlpool Roller Assembly
5	W11594405 Whirlpool Axle
6	WP2155013 Whirlpool Refrigerator Clip
7	WP2304249 Whirlpool Refrigerator Plate
8	WP2174706 Whirlpool Refrigerator Pin Hitch
9	HINGE TOP (FC)
10	HINGE TOP (RC)
11	WP489128 Whirlpool Refrigerator Screw
12	2203407T Whirlpool Refrigerator Cover
12	WP2203407B Whirlpool Refrigerator Cover
12	WP2203407W Whirlpool Refrigerator Cover
13	HINGE BOTTOM
14	WP489497 Whirlpool Screw
15	WPW10304659 Whirlpool Wheel Assembly
16	W11252732 Whirlpool Refrigerator Filler
16	W10283958 Whirlpool Refrigerator Filler
16	WPW10283959 Whirlpool Refrigerator Filler
17	WPW10283946 Whirlpool Refrigerator Grille
17	W10283947 Whirlpool Grille Assembly
19	W10856122 Whirlpool Refrigerator Screw
20	WP488488 Whirlpool Refrigerator Screw
21	WP489464 Whirlpool Refrigerator Screw
22	W11566763 Whirlpool Fitting
23	W11512417 Whirlpool Drain Connector
24	WP2188755 Whirlpool Rear Panel
25	CABINET (NOT A SERVICEABLE PART)
26	Hinge Cover (Biscuit)
26	WP2203408W Whirlpool Refrigerator Cover
26	WP2203408B Whirlpool Refrigerator Cover
27	WP8281227 Whirlpool Screw
28	549193 Whirlpool Refrigerator Power Clamp
30	WPW10329686 Whirlpool Door Cam Black
31	WP489483 Whirlpool Screw
