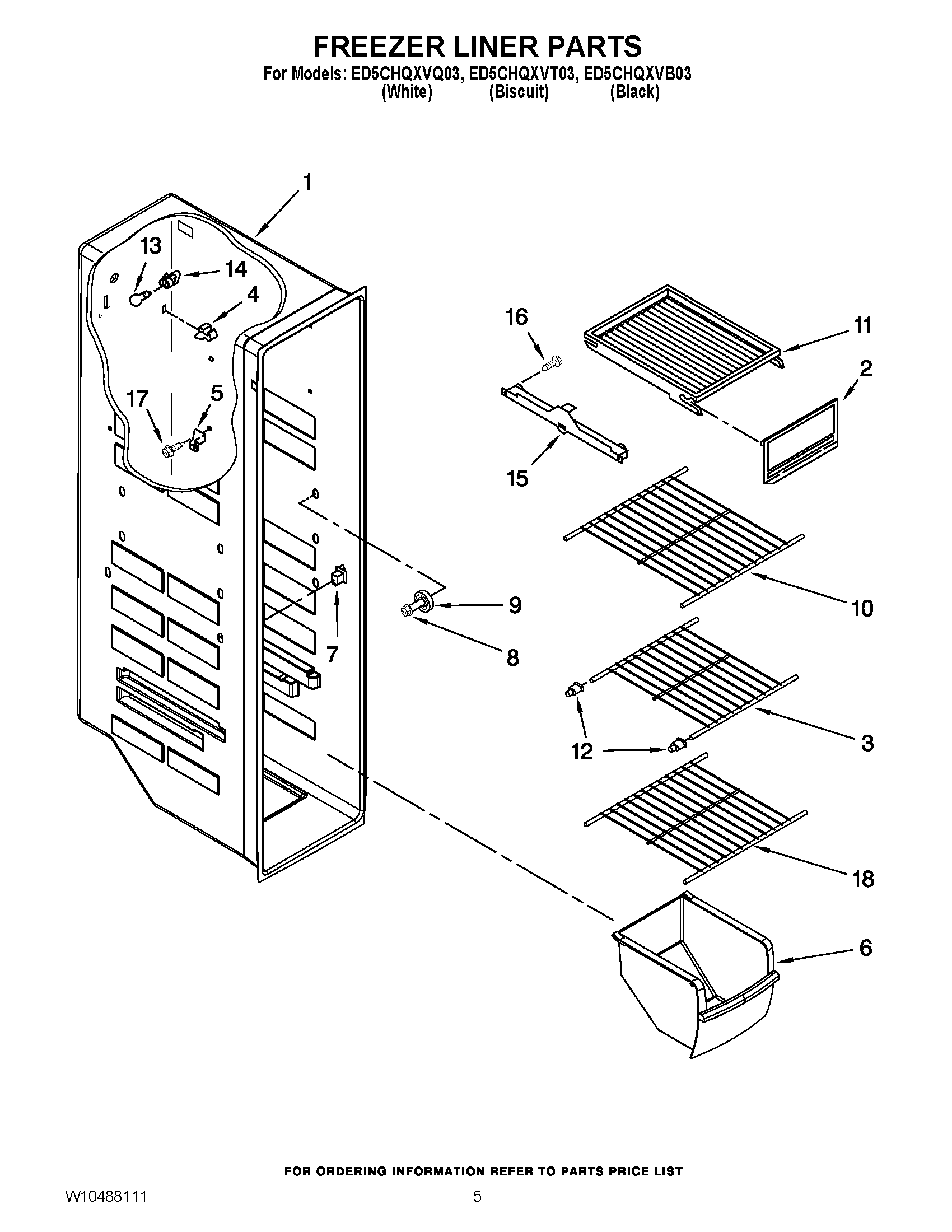

ED5CHQXVB03 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2171713 Whirlpool Refrigerator Ice Door
3	SHELF, WIRE
4	2215823 Whirlpool Refrigerator Clip
5	4388405 Whirlpool Refrigerator Shelf Stud
6	WPW10144409 Whirlpool Refrigerator Freezer Bin
7	W11457217 Whirlpool Refrigerator Rocker Switch Combination
8	WPW10191952 Whirlpool Refrigerator Screw
9	W11527119 Whirlpool Refrigerator Shelf Stud
10	WPW10318948 Whirlpool Wire Shelf
11	Shelf, Top Compartment
12	WPW10130299 Whirlpool Refrigerator Cup
13	RANGE ONLY 40W 120V APPL BULB
14	4387478 Whirlpool Refrigerator Light Socket
15	W10845583 Whirlpool Refrigerator Track
15	W10845585 Whirlpool Refrigerator Track
16	718257 Whirlpool Dishwasher Screw
17	W10142289 Whirlpool Air Conditioner Screw
18	WPW10318947 Whirlpool Wire Shelf
