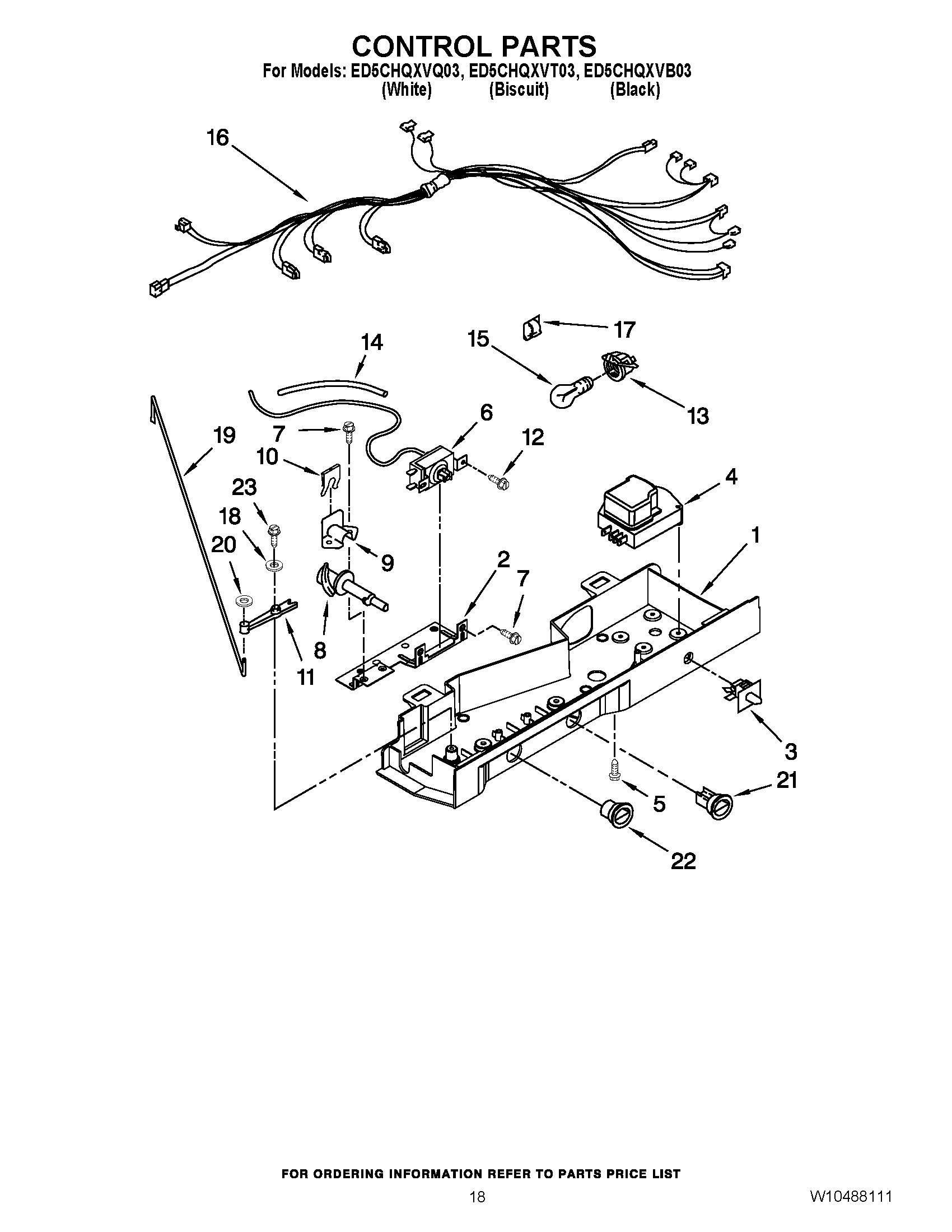

ED5CHQXVB03 11 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	2311611 Whirlpool Refrigerator Bracket
3	WP2149705 Whirlpool Refrigerator Door Switch
4	W10822278 Whirlpool Defrost Timer
5	489392 Whirlpool Refrigerator Screw
6	WP2198202 Whirlpool Refrigerator Temperature Thermostat
7	WP3196557 Whirlpool Screw
8	WP2182195 Whirlpool Refrigerator Cam
9	1110560 Whirlpool Refrigerator Bearing
10	WP2196062 Whirlpool Refrigerator Clip
11	Pivot Arm
12	WP965173 Whirlpool Dishwasher Screw
13	4387478 Whirlpool Refrigerator Light Socket
14	WP2196003 Whirlpool Refrigerator Bar Riser
15	RANGE ONLY 40W 120V APPL BULB
16	2311636 Whirlpool Refrigerator Wire Harness
17	WP1115374 Whirlpool Refrigerator Clip
18	489203 Whirlpool Refrigerator Washer
19	2311631 Whirlpool Refrigerator Rod
20	Fastener, Push-On
21	W10723843 Whirlpool Refrigerator Thermostat Knob
22	2311615 Whirlpool Refrigerator Knob
23	627068 Whirlpool Refrigerator Screw
