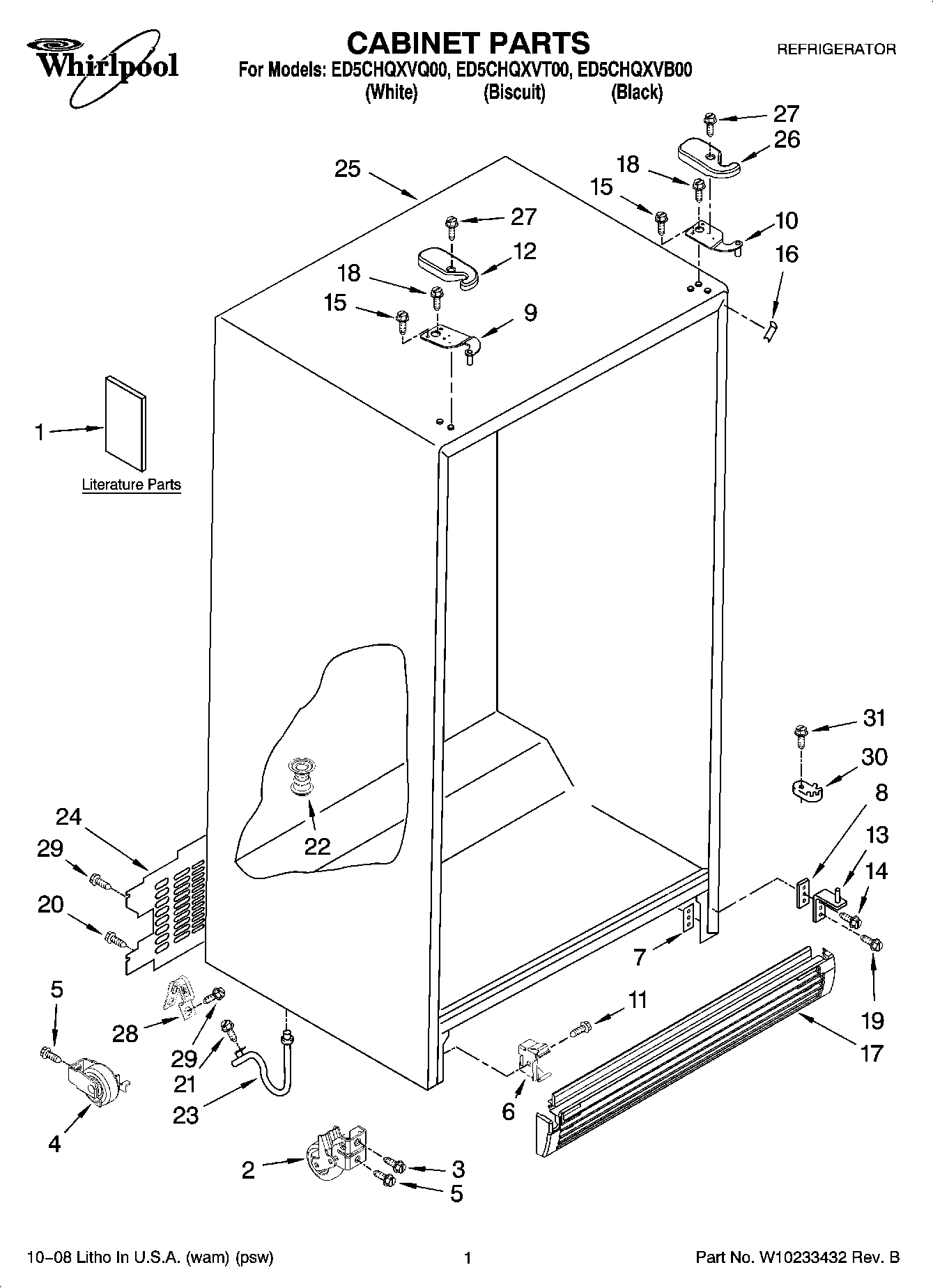

ED5CHQXVQ00 01 – CABINET PARTS

Products

Position	Product
1	Energy Label
1	Modular Icemaker Service Sheet
1	Service & Wiring Sheet
1	INSTRUCTION SHEET, DOOR REMOVAL
1	Use & Care Guide
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP2304249 Whirlpool Refrigerator Plate
8	WP2209697 Whirlpool Refrigerator Shim
9	WP2203770 Whirlpool Refrigerator Door Hinge
10	WP2203771 Whirlpool Refrigerator Door Hinge
11	WP489128 Whirlpool Refrigerator Screw
12	WP2203407B Whirlpool Refrigerator Cover
12	2203407T Whirlpool Refrigerator Cover
12	WP2203407W Whirlpool Refrigerator Cover
13	8201707 Whirlpool Door Hinge
14	WP489497 Whirlpool Screw
15	W10853301 Whirlpool Refrigerator Screw
16	W10283958 Whirlpool Refrigerator Filler
16	W11252732 Whirlpool Refrigerator Filler
16	WPW10283959 Whirlpool Refrigerator Filler
17	WPW10283946 Whirlpool Refrigerator Grille
17	W10283947 Whirlpool Grille Assembly
19	W10856122 Whirlpool Refrigerator Screw
20	WP488488 Whirlpool Refrigerator Screw
21	WP489464 Whirlpool Refrigerator Screw
22	W11566763 Whirlpool Fitting
23	Extension Tube
24	WP2188755 Whirlpool Rear Panel
25	Cabinet, (Not A Serviceable Part)
26	WP2203408B Whirlpool Refrigerator Cover
26	Hinge Cover (Biscuit)
26	WP2203408W Whirlpool Refrigerator Cover
27	WP8281227 Whirlpool Screw
28	549193 Whirlpool Refrigerator Power Clamp
30	WPW10329686 Whirlpool Door Cam Black
31	WP489483 Whirlpool Screw
