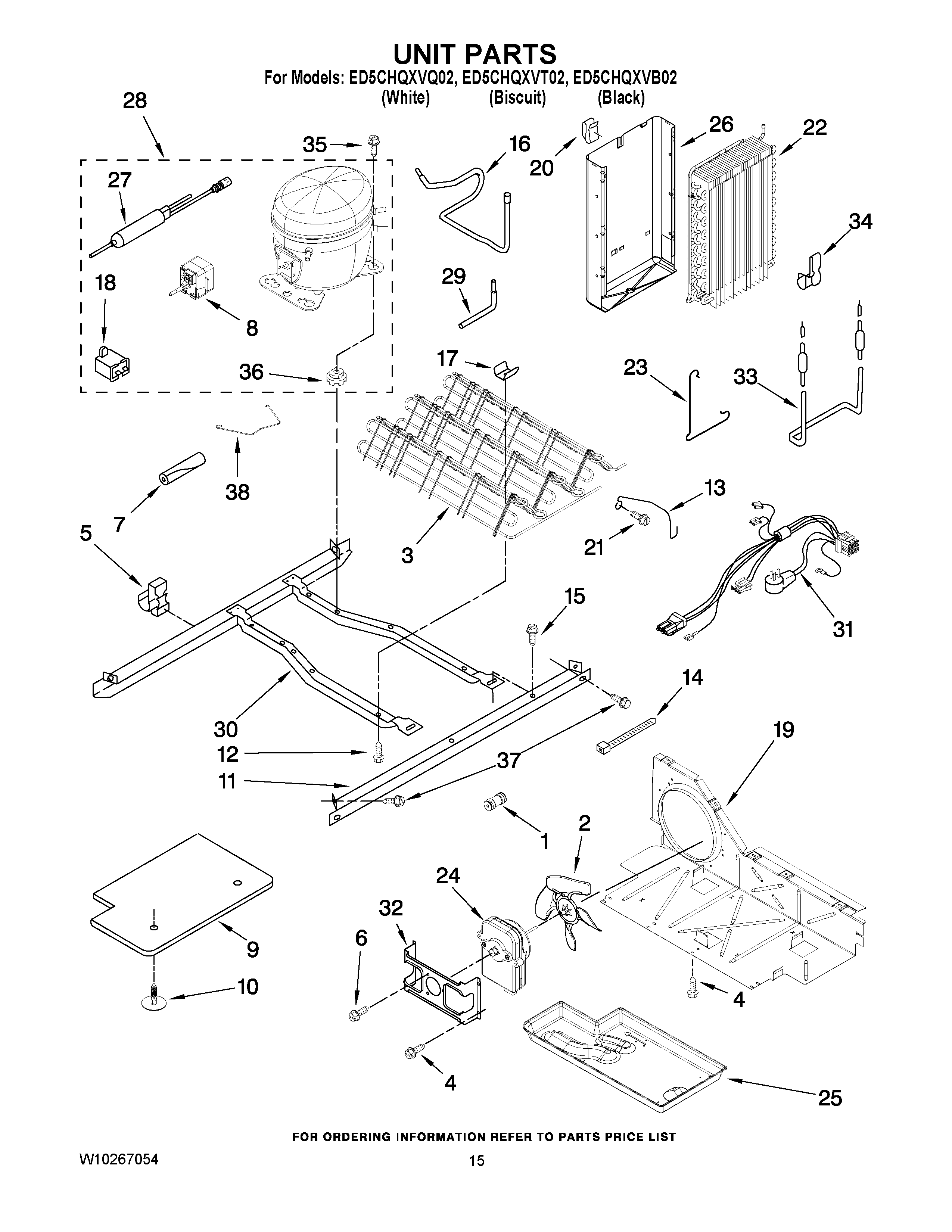

ED5CHQXVQ02 09 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10334458 Whirlpool Refrigerator Connector
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	SLEEVE
8	WP2304885 Whirlpool Refrigerator Start Device
9	Unit Cover, Bottom
10	489396 Whirlpool Refrigerator Clip
11	WPW10196323 Whirlpool Refrigerator Rail Assembly
12	W11544659 Whirlpool Refrigerator Screw
13	Guard, Fan
14	WPW10339879 Whirlpool Wire Tie
15	WP489427 Whirlpool Refrigerator Screw
16	WP2205765 Whirlpool Refrigerator Tube
17	W10683556 Whirlpool Refrigerator Clip
18	WPW10662129 Whirlpool Refrigerator Run Capacitor
19	Air Baffle
20	Clip, Heat Shield
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188823 Whirlpool Refrigerator Evaporator
24	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	W10194475 Whirlpool Refrigerator Shield
27	WPW10143759 Whirlpool Dryer Filter
28	W10139460 Whirlpool Refrigerator Compressor
29	W10858105 Whirlpool Refrigerator Tube
30	W10196321 Whirlpool Refrigerator Frame
31	WPW10309395 Whirlpool Refrigerator Wire Harness
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323198 Whirlpool Refrigerator Heater
34	Clamp
36	876811 Whirlpool Grommet
36	WP4387558 Whirlpool Refrigerator Compressor Grommet
37	489340 Whirlpool Refrigerator Screw
38	2223313 Whirlpool Clip
