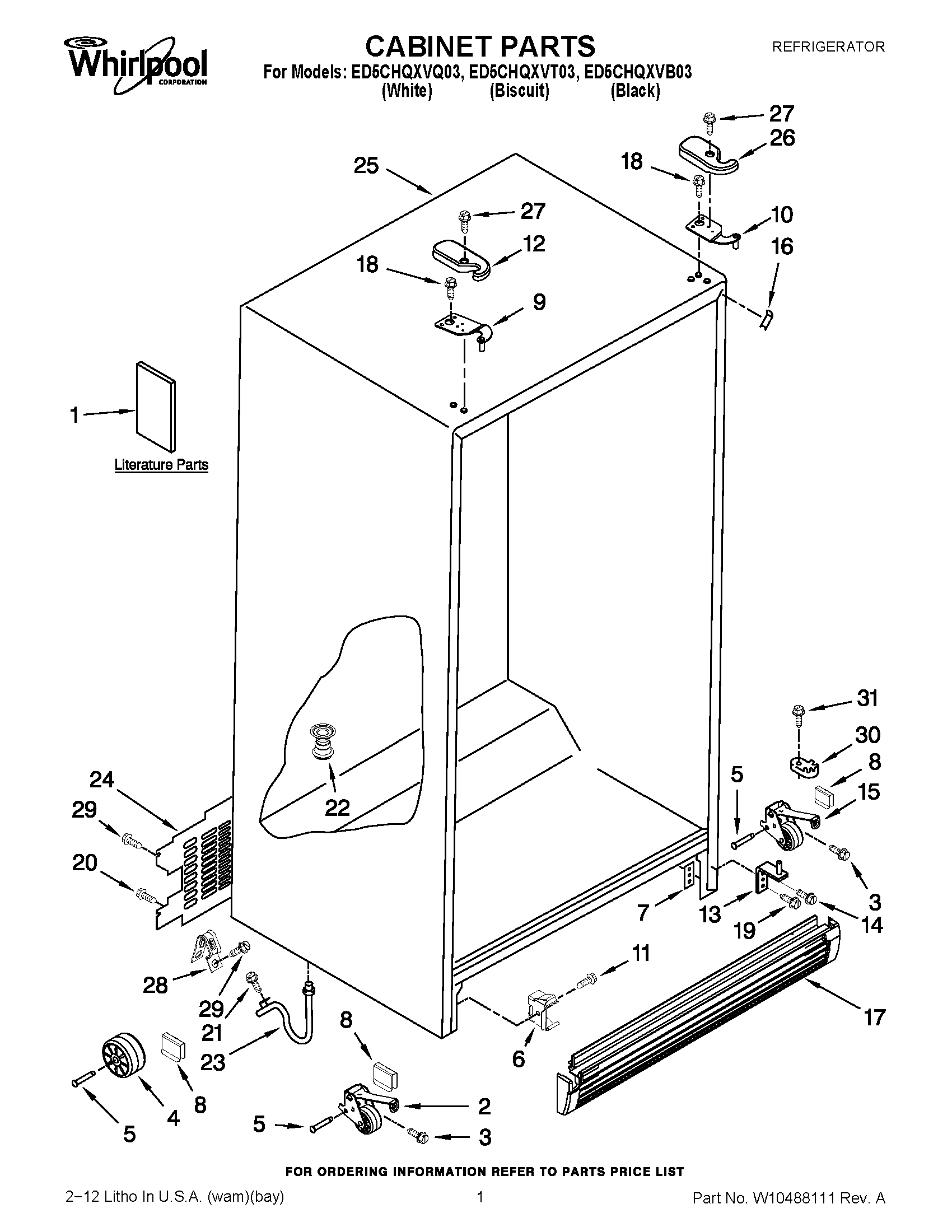

ED5CHQXVQ03 01 – CABINET PARTS

Products

PositionProduct
1Energy Label
1Service & Wiring Sheet
1USE & CARE GUIDE
1Modular Icemaker Service Sheet
1INSTRUCTION SHEET, DOOR REMOVAL
2WPW10304660 Whirlpool Wheel Assembly
3W10803534 Whirlpool Screw
4WPW10475495 Whirlpool Roller Assembly
5W11594405 Whirlpool Axle
6WP2155013 Whirlpool Refrigerator Clip
7WP2304249 Whirlpool Refrigerator Plate
8WP2174706 Whirlpool Refrigerator Pin Hitch
9HINGE TOP (FC)
10HINGE TOP (RC)
11WP489128 Whirlpool Refrigerator Screw
122203407T Whirlpool Refrigerator Cover
12WP2203407B Whirlpool Refrigerator Cover
12WP2203407W Whirlpool Refrigerator Cover
13HINGE BOTTOM
14WP489497 Whirlpool Screw
15WPW10304659 Whirlpool Wheel Assembly
16W11252732 Whirlpool Refrigerator Filler
16W10283958 Whirlpool Refrigerator Filler
16WPW10283959 Whirlpool Refrigerator Filler
17WPW10283946 Whirlpool Refrigerator Grille
17W10283947 Whirlpool Grille Assembly
19W10856122 Whirlpool Refrigerator Screw
20WP488488 Whirlpool Refrigerator Screw
21WP489464 Whirlpool Refrigerator Screw
22W11566763 Whirlpool Fitting
23W11512417 Whirlpool Drain Connector
24WP2188755 Whirlpool Rear Panel
25CABINET (NOT A SERVICEABLE PART)
26Hinge Cover (Biscuit)
26WP2203408W Whirlpool Refrigerator Cover
26WP2203408B Whirlpool Refrigerator Cover
27WP8281227 Whirlpool Screw
28549193 Whirlpool Refrigerator Power Clamp
30WPW10329686 Whirlpool Door Cam Black
31WP489483 Whirlpool Screw
