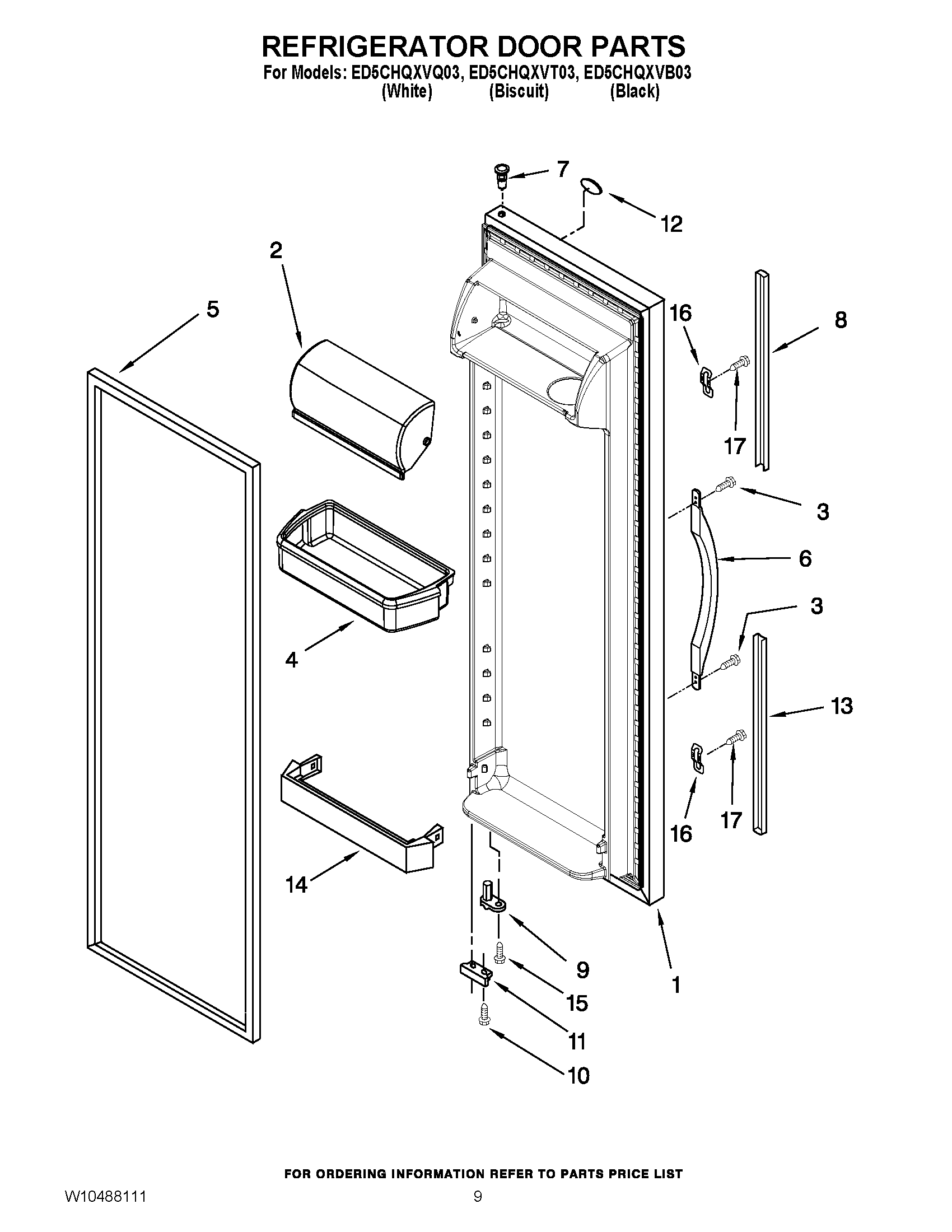

ED5CHQXVQ03 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Biscuit)
1	Refrigerator Door (Includes Item 6) (Black)
2	WP2256101 Whirlpool Dairy Door
3	WP489491 Whirlpool Refrigerator Screw
4	WP2203828 Whirlpool Door Shelf Bin
5	2159075 Whirlpool Door Gasket Seal
5	2159083 Whirlpool Gasket Door
6	HANDLE (BLACK)
6	HANDLE (BISCUIT)
6	HANDLE (WHITE)
7	WP2182181 Whirlpool Refrigerator Thimble
8	TRIM ASSY, TOP (INCLUDES ITEM 8) (BLACK)
8	TRIM ASSY, TOP (INCLUDES ITEM 8) (WHITE)
8	Trim, Upper (Bisquit)
9	WP2182179 Whirlpool Cam Closer
10	WP489483 Whirlpool Screw
11	BRACKET, DOOR STOP (CHROME)
11	BRACKET, DOOR STOP (BLACK)
12	WP2213265 Whirlpool Refrigerator Nameplate
13	Extension, Bottom (Biscuit)
13	Extension, Bottom (Black)
13	Extension, Bottom (White)
14	WP2309941 Whirlpool Refrigerator Door Bar Trim
15	WP3400012 Whirlpool Refrigerator Screw
16	WP2195327 Whirlpool Refrigerator Clip
17	WP3400852 Whirlpool Refrigerator Screw
