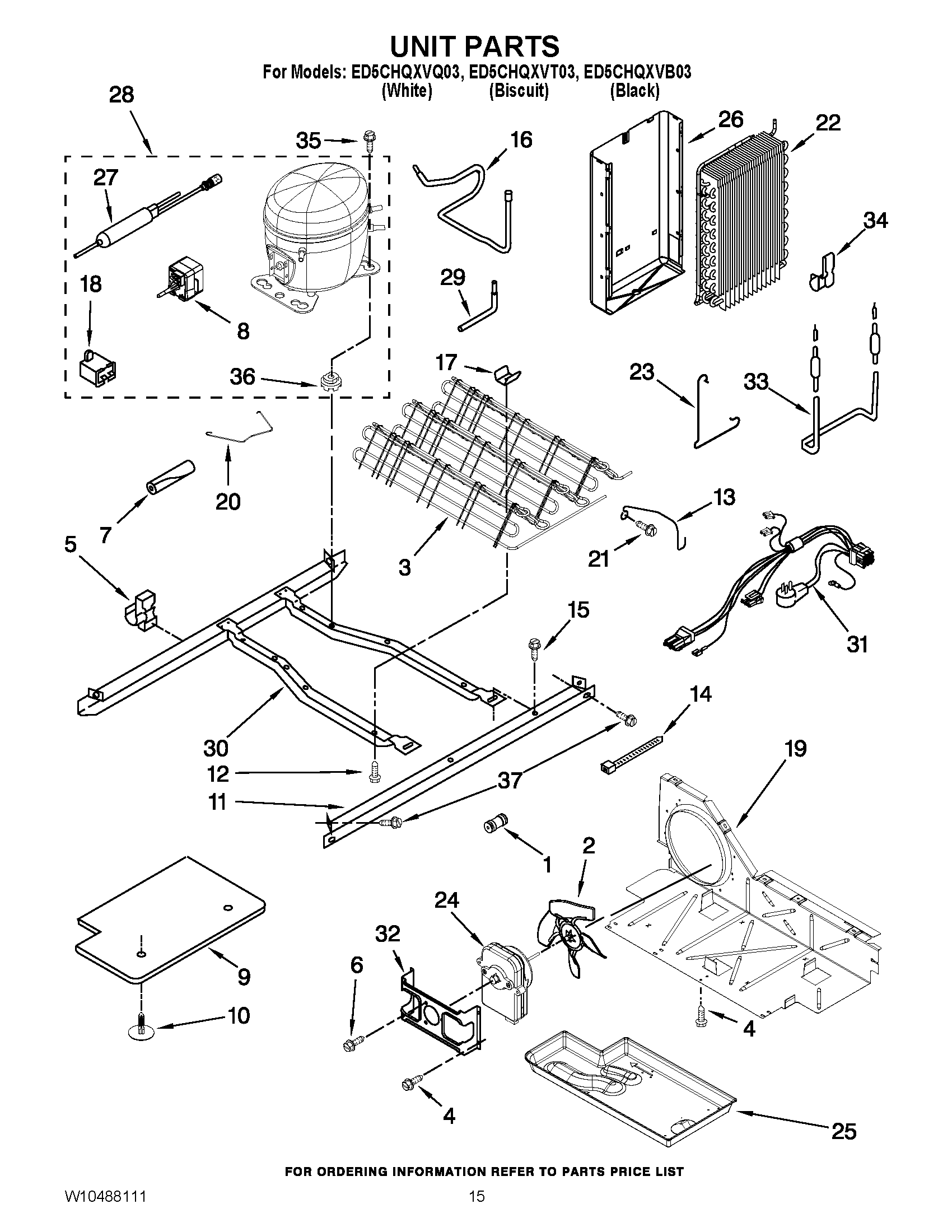

ED5CHQXVQ03 09 – UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10334458 Whirlpool Refrigerator Connector
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	SLEEVE
8	WPW10240344 Whirlpool Refrigerator Start Device
9	Unit Cover, Bottom
10	489396 Whirlpool Refrigerator Clip
11	W10196313 Whirlpool Refrigerator Rail Unit
12	W11544659 Whirlpool Refrigerator Screw
13	Guard, Fan
14	WPW10339879 Whirlpool Wire Tie
15	WP489427 Whirlpool Refrigerator Screw
16	2313230 Whirlpool Tube
17	W10683556 Whirlpool Refrigerator Clip
18	WP65889-4 Whirlpool Refrigerator Capacitor
19	BAFFLE, AIR
20	W11661170 Whirlpool Clip
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188823 Whirlpool Refrigerator Evaporator
24	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	W10194475 Whirlpool Refrigerator Shield
27	WPW10143759 Whirlpool Dryer Filter
28	W10355489 Whirlpool Refrigerator Compressor
29	W10858105 Whirlpool Refrigerator Tube
30	W10196321 Whirlpool Refrigerator Frame
31	UNIT, HARNESS (INCLUDES POWER CORD)
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323198 Whirlpool Refrigerator Heater
34	Clamp
35	SCREW
36	W11661108 Whirlpool Grommet
37	489340 Whirlpool Refrigerator Screw
