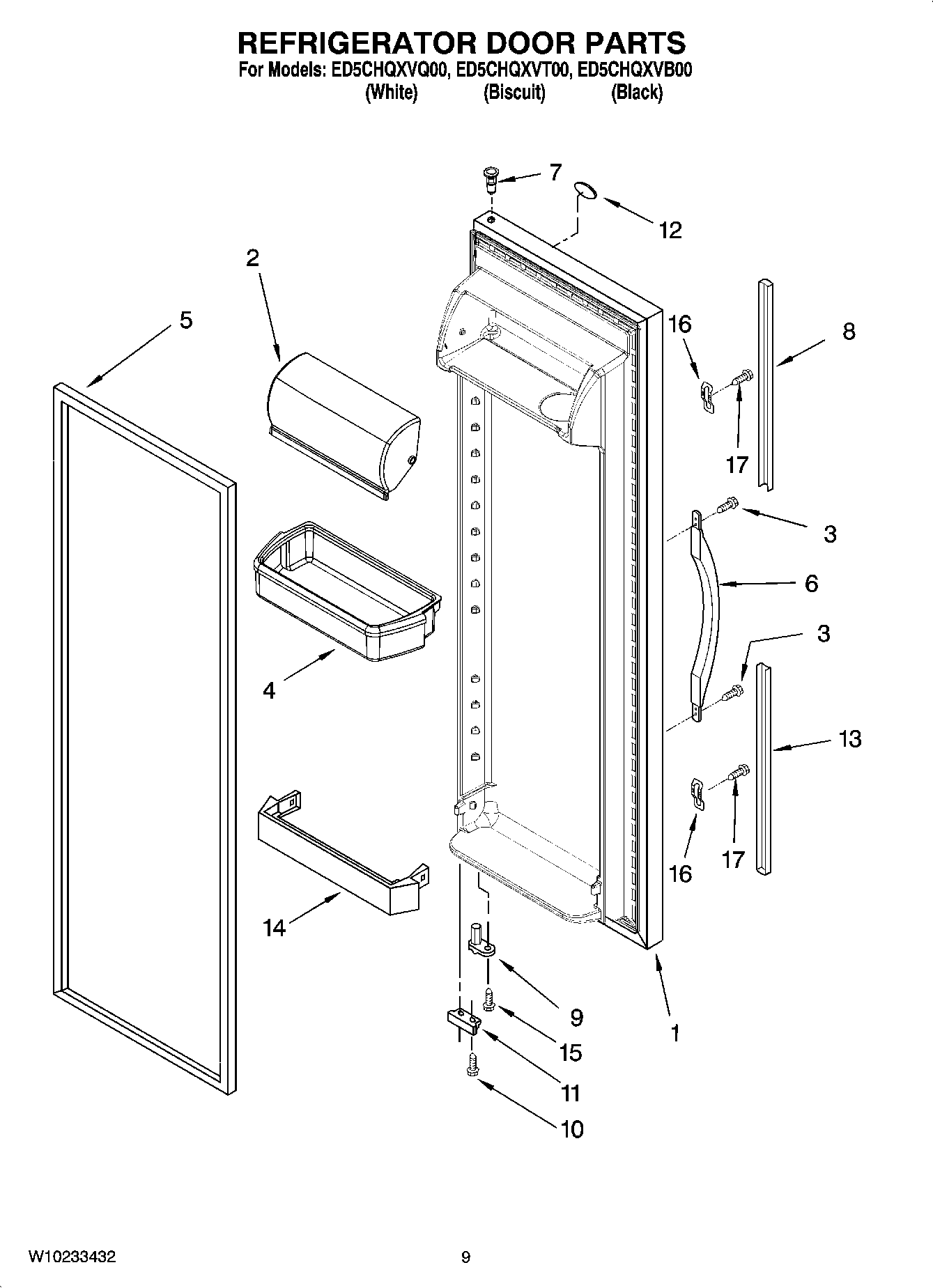

ED5CHQXVT00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Biscuit)
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Black)
2	WP2256101 Whirlpool Dairy Door
3	WP489491 Whirlpool Refrigerator Screw
4	WP2203828 Whirlpool Door Shelf Bin
5	2159083 Whirlpool Gasket Door
5	2159075 Whirlpool Door Gasket Seal
6	WP2186649B Whirlpool Refrigerator Handle
6	Handle, Center (White)
6	Handle, Center (Biscuit)
7	WP2182181 Whirlpool Refrigerator Thimble
8	WP2194973W Whirlpool Door Trim
8	Extension, Top (Biscuit)
8	Extension, Top (Black)
9	WP2182179 Whirlpool Cam Closer
10	WP489483 Whirlpool Screw
11	WP2206629B Whirlpool Refrigerator Bracket
12	WP2213265 Whirlpool Refrigerator Nameplate
13	WP2194969B Whirlpool Refrigerator Handle Trim
13	Extension, Bottom (Biscuit)
13	Extension, Bottom (White)
14	WP2156022 Whirlpool Refrigerator Door Trim
15	WP3400012 Whirlpool Refrigerator Screw
16	WP2195327 Whirlpool Refrigerator Clip
17	WP3400852 Whirlpool Refrigerator Screw
