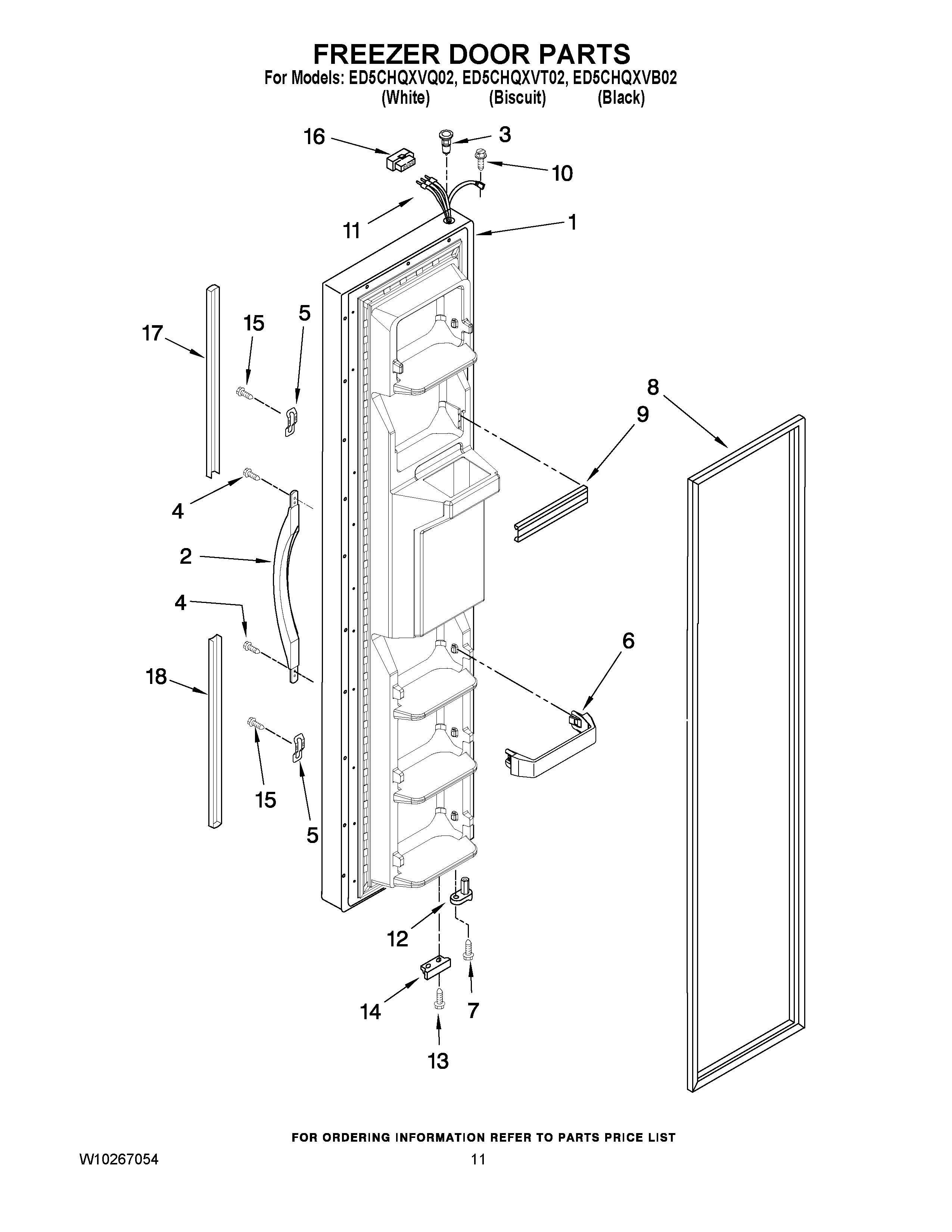

ED5CHQXVT02 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
2	Handle (Black)
2	Handle (Biscuit)
2	Handle (White)
3	WP2182181 Whirlpool Refrigerator Thimble
4	WP489491 Whirlpool Refrigerator Screw
5	WP2195327 Whirlpool Refrigerator Clip
6	WP2309718 Whirlpool Refrigerator Door Trim
7	WP3400012 Whirlpool Refrigerator Screw
8	2159074 Whirlpool Door Gasket Seal
8	2159082 Whirlpool Freezer Door Gasket Black
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP489464 Whirlpool Refrigerator Screw
11	2311641 Whirlpool Refrigerator Wire Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	WP2206629B Whirlpool Refrigerator Bracket
15	WP3400852 Whirlpool Refrigerator Screw
16	WP2154473 Whirlpool Refrigerator Connector
17	TRIM ASSY, TOP (INCLUDES ITEM 8) (WHITE)
17	TRIM ASSY, TOP (INCLUDES ITEM 8) (BLACK)
17	Trim, Upper (Bisquit)
18	Extension, Bottom (White)
18	Extension, Bottom (Biscuit)
18	Extension, Bottom (Black)
