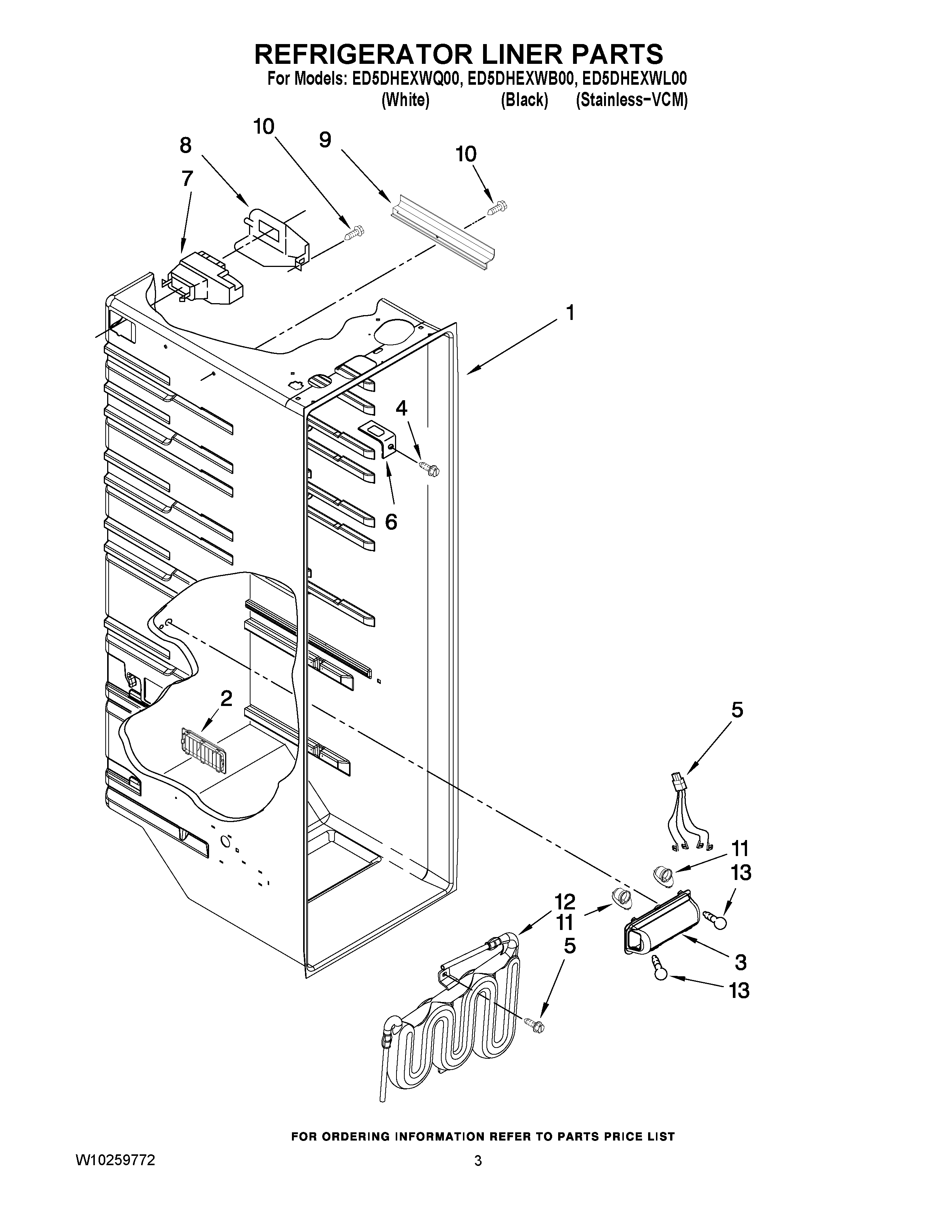

ED5DHEXWB00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Louver
3	W11239891 Whirlpool Refrigerator Light Lens
5	Screw (2)
6	2311612 Whirlpool Refrigerator Clip
7	WPW10151374 Whirlpool Refrigerator Diffuser
8	2152019 Whirlpool Refrigerator Cover
9	2150331 Whirlpool Refrigerator Wire Cover
10	W10759522 Whirlpool Screw
11	4387478 Whirlpool Refrigerator Light Socket
12	RESERVOIR
13	RANGE ONLY 40W 120V APPL BULB
