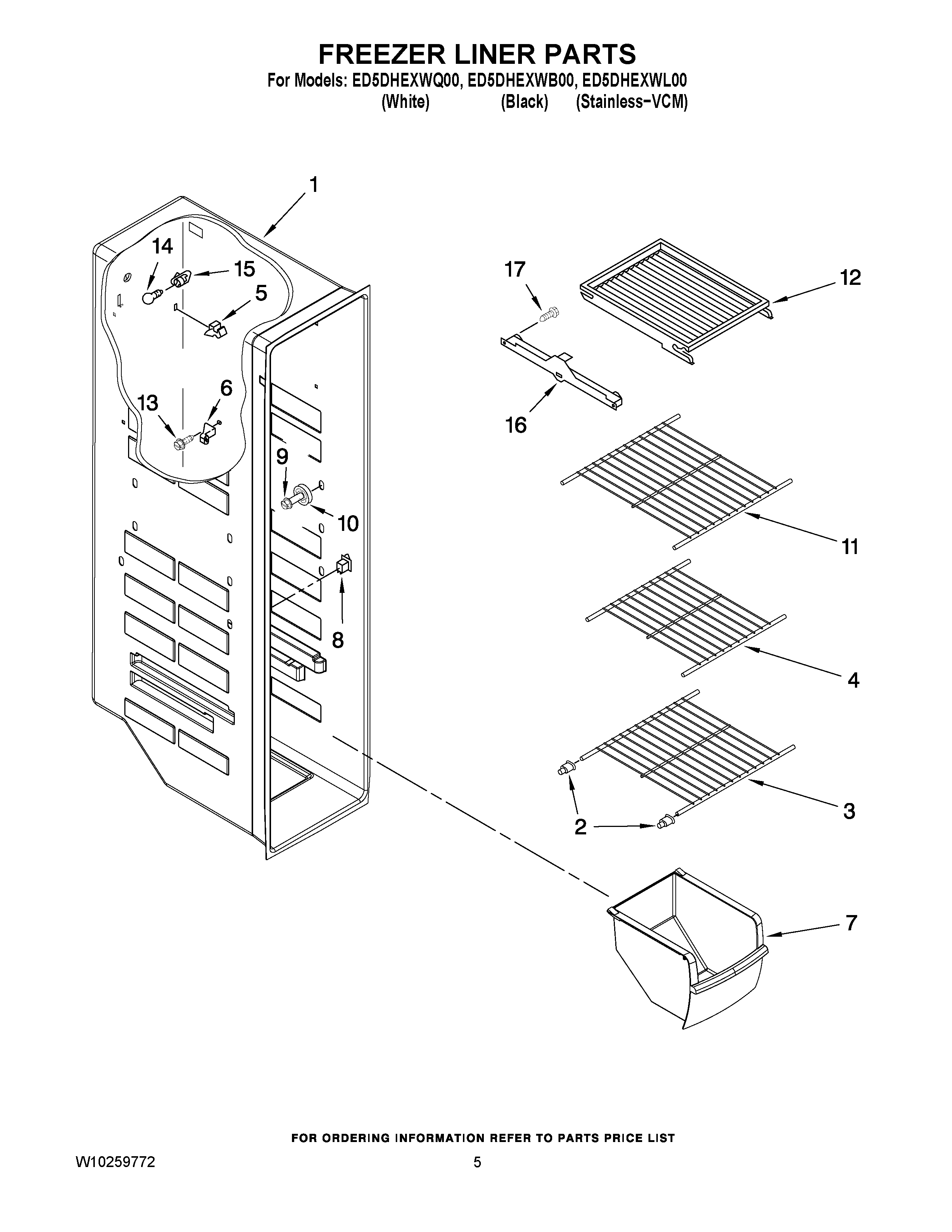

ED5DHEXWB00 04 – FREEZER LINER PARTS

ED5DHEXWB00 04 – FREEZER LINER PARTS

Written by

in

ED5DHEXWB00 04 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
2WPW10130299 Whirlpool Refrigerator Cup
3Shelf, Wire
4WPW10318948 Whirlpool Wire Shelf
52215823 Whirlpool Refrigerator Clip
64388405 Whirlpool Refrigerator Shelf Stud
7WPW10144409 Whirlpool Refrigerator Freezer Bin
8W11457217 Whirlpool Refrigerator Rocker Switch Combination
9WP3400806 Whirlpool Screw
10WP2196483 Whirlpool Refrigerator Shelf Stud
11WPW10318947 Whirlpool Wire Shelf
12Shelf, Top Compartment
13W10142289 Whirlpool Air Conditioner Screw
14RANGE ONLY 40W 120V APPL BULB
154387478 Whirlpool Refrigerator Light Socket
16W10845585 Whirlpool Refrigerator Track
16W10845583 Whirlpool Refrigerator Track
17718257 Whirlpool Dishwasher Screw
